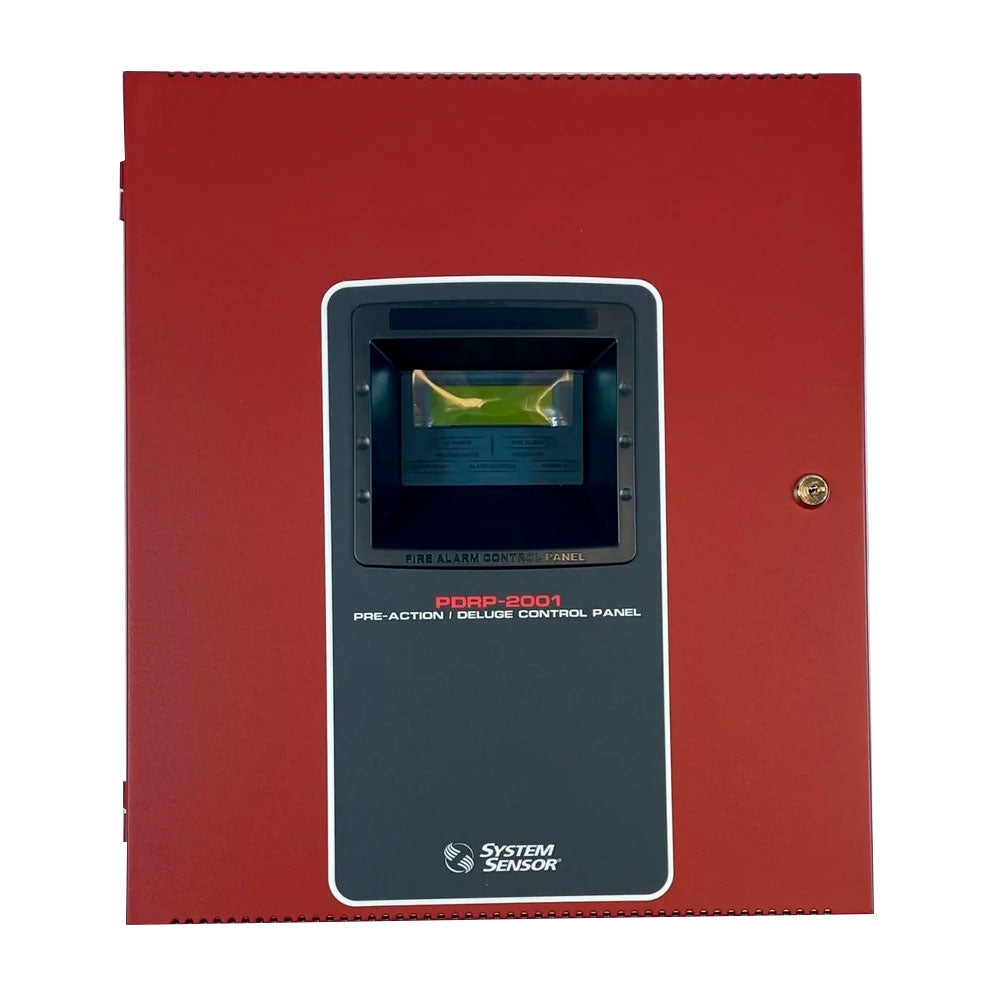

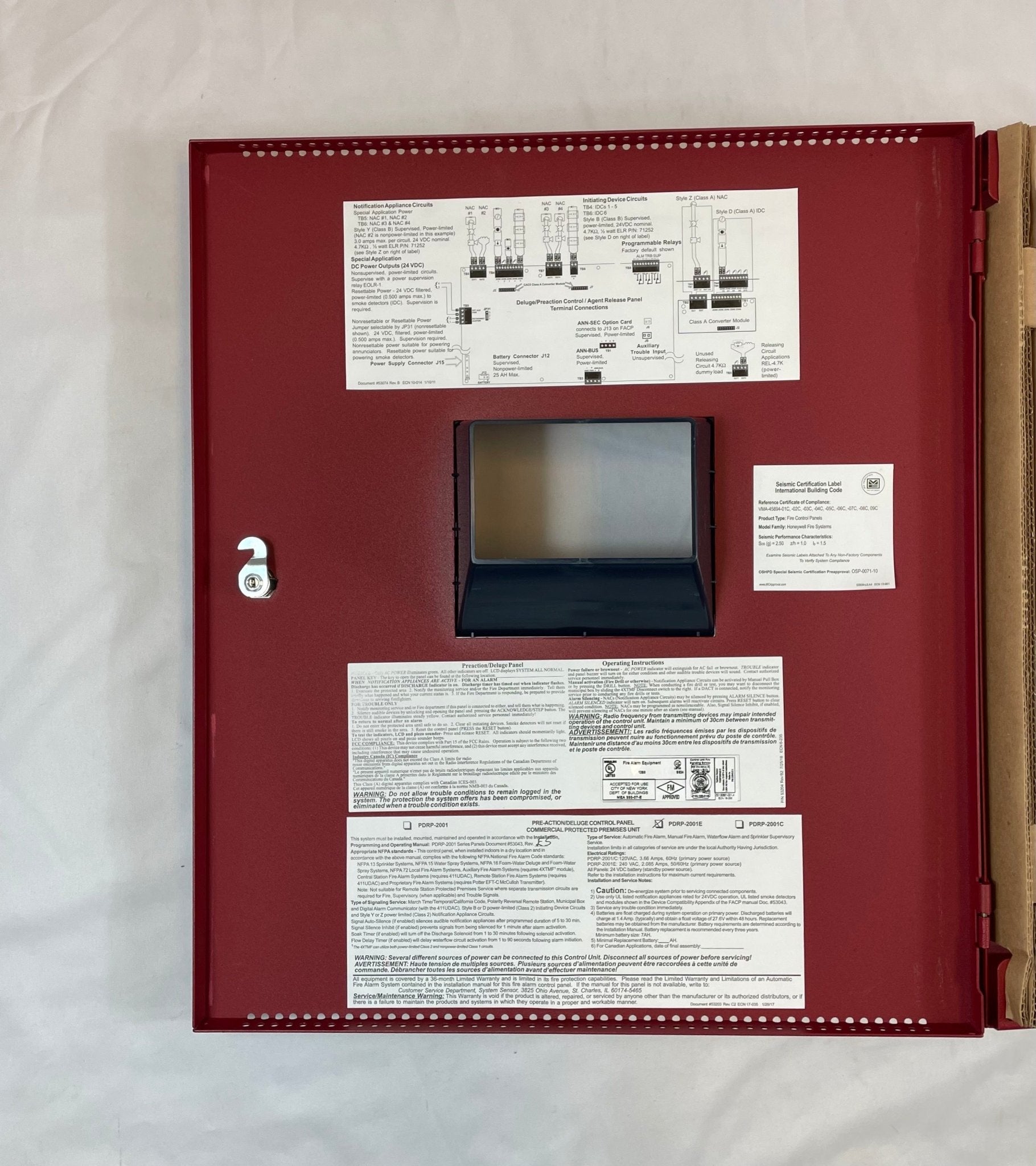

System Sensor PDRP-2001E Fire Alarm Control Panel 220/240 VAC
PDRP-2001E: Six zone, 24-volt deluge-preaction control panel, allows connection to 220240 VAC
An installed waterflow detector, compatible smoke detector, or any normally open fi re alarm initiating device will activate audible and visual signaling devices, illuminate an indicator, display alarm information on the panel’s LCD, sound the piezo sounder at the FACP, activate the FACP alarm relay, and operate an optional module used to notify a remote station or initiate an auxiliary control function.

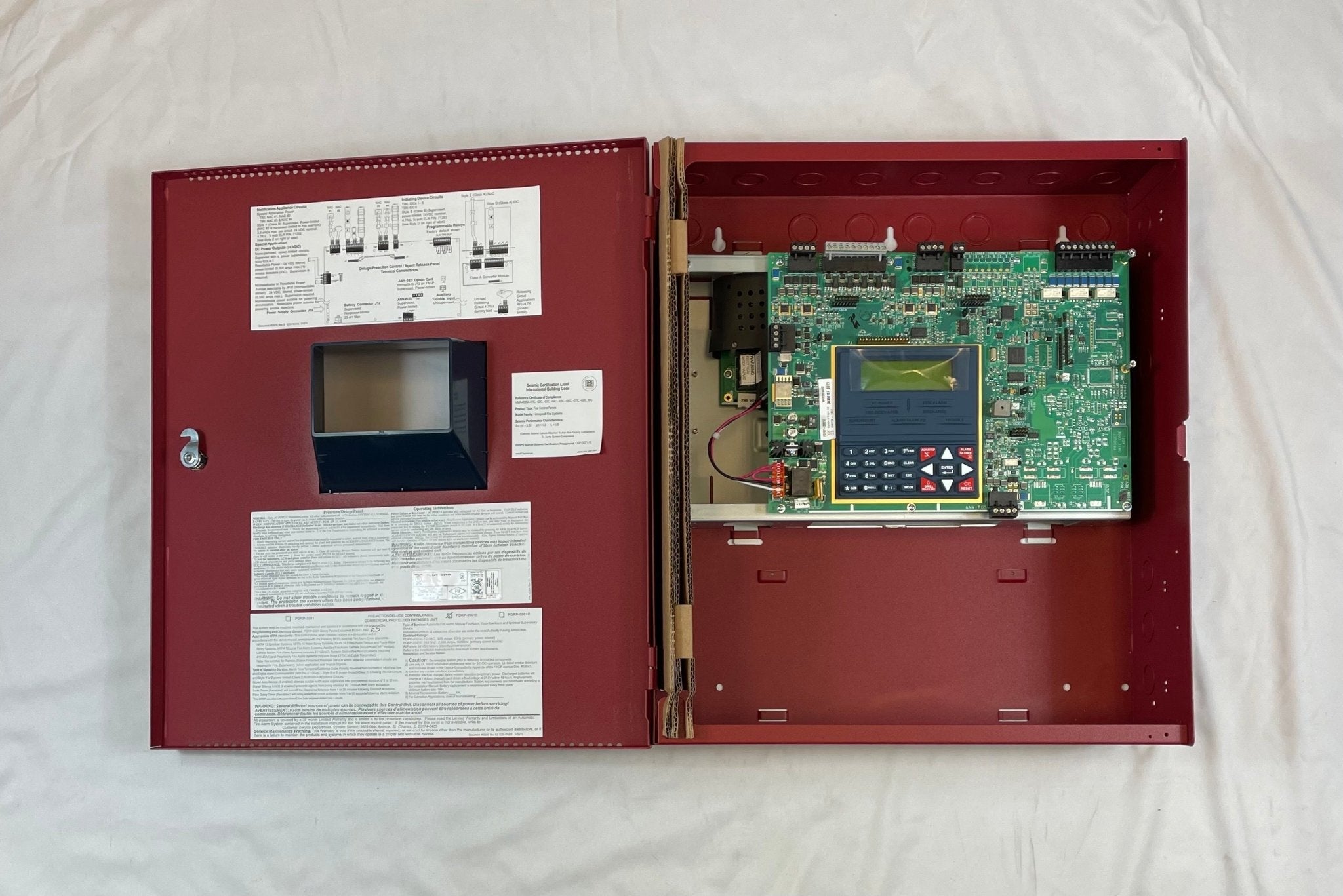

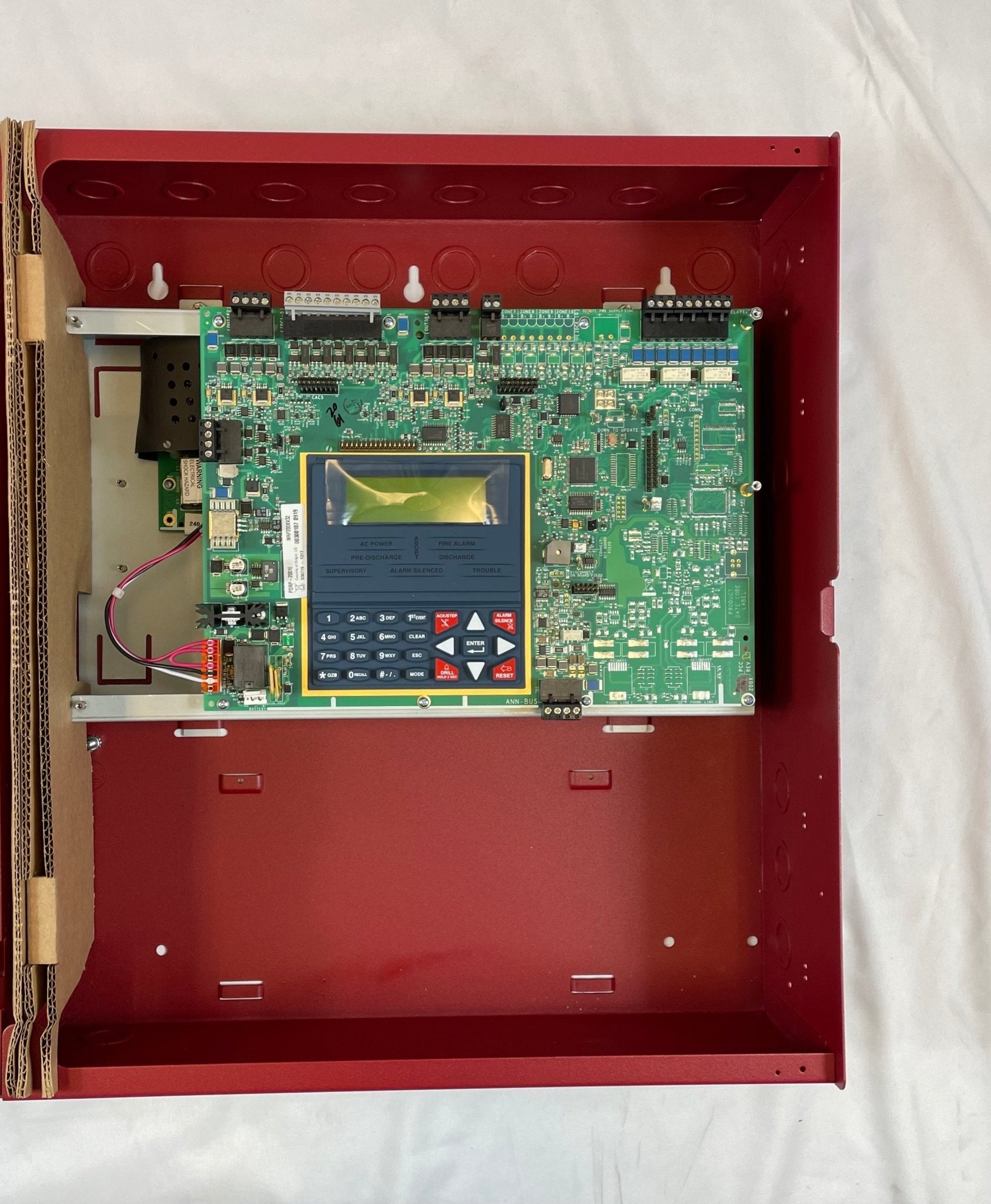

Four outputs are programmable as notification appliance circuits (NACs) or releasing circuits. Three programmable Form C relays (factory programmed for alarm, trouble, and supervisory) and 24 VDC special application resettable and non-resettable power outputs are also included on the main circuit board.
Unless otherwise specified, the information in this data sheet applies to both the 110/120 VAC and 220/240 VAC versions of the panels.
Key Features
- Designed for sprinkler standards NFPA 13, 15, and 16
- Allows connection to 220/240 VAC
- Dual hazard operation
- Adjustable water flow discharge timer and two soak timers
- Cross-zone (double-interlock) capability
- 6 programmable Style B (Class B) IDCs (Initiating Device Circuits)
- System Sensor i Series detector compatibility
- 4 programmable Style Y (Class B) output circuits – (special application power)
- Compatible with System Sensor synchronization protocol
- 3 programmable Form C relays
