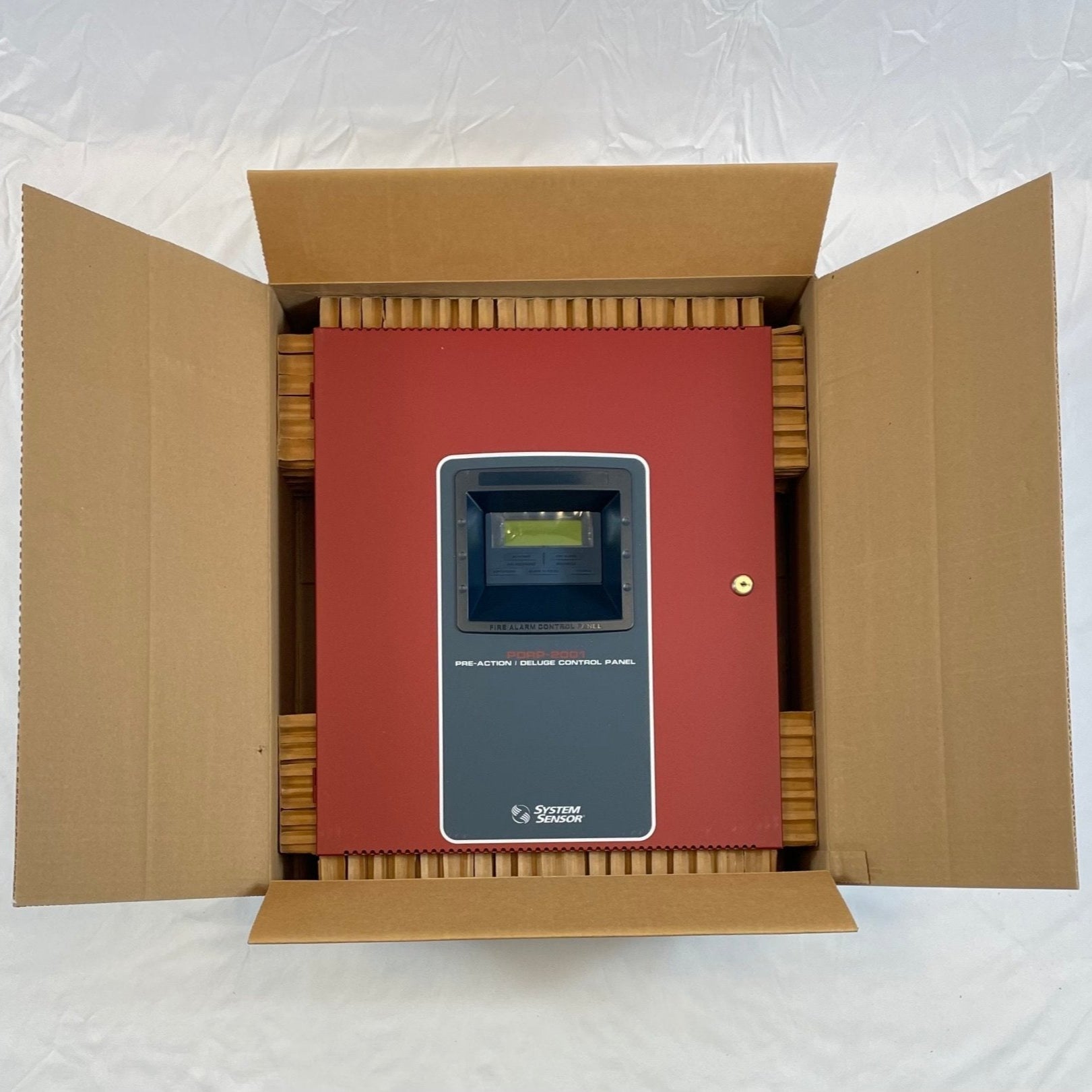

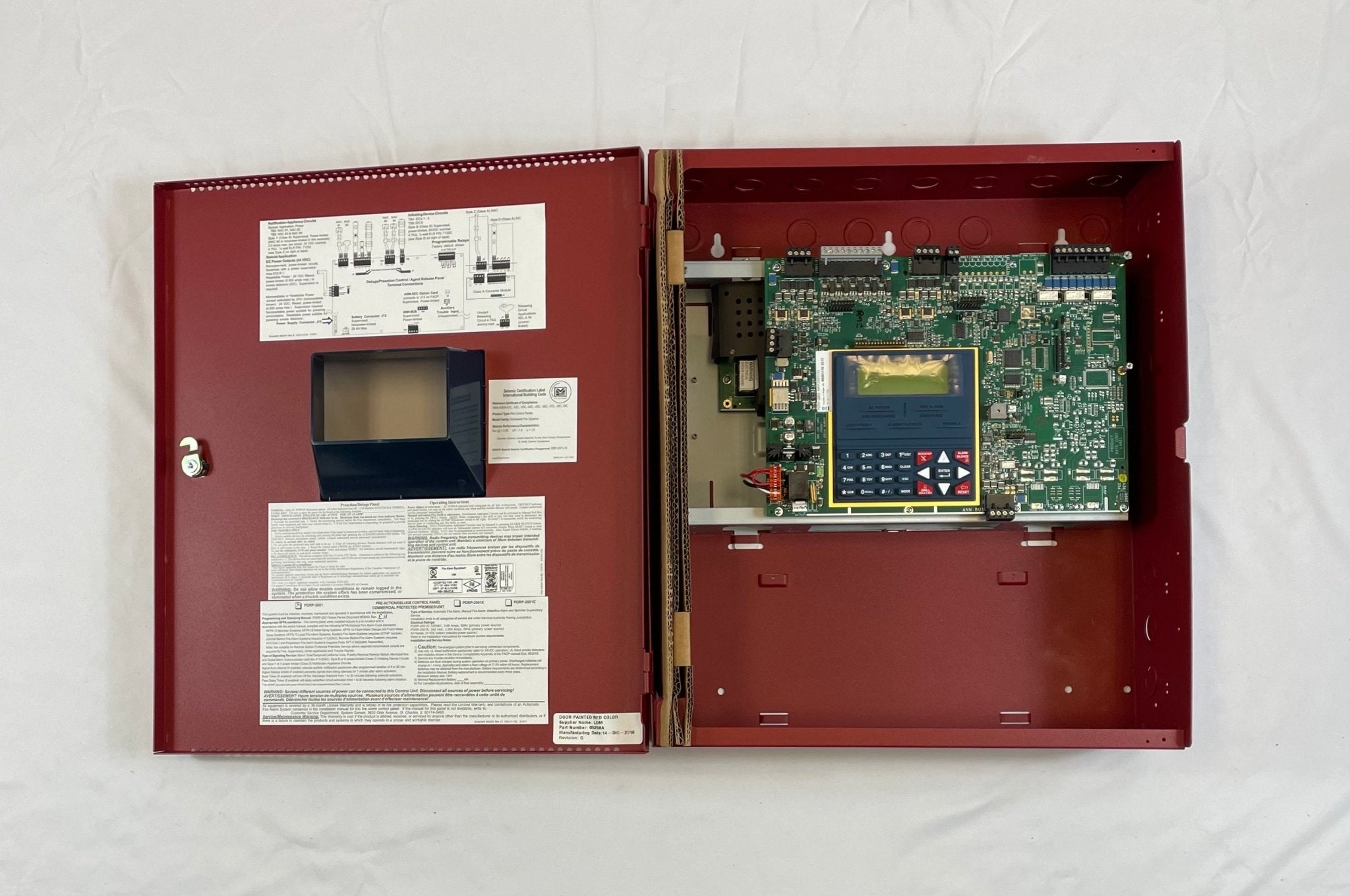

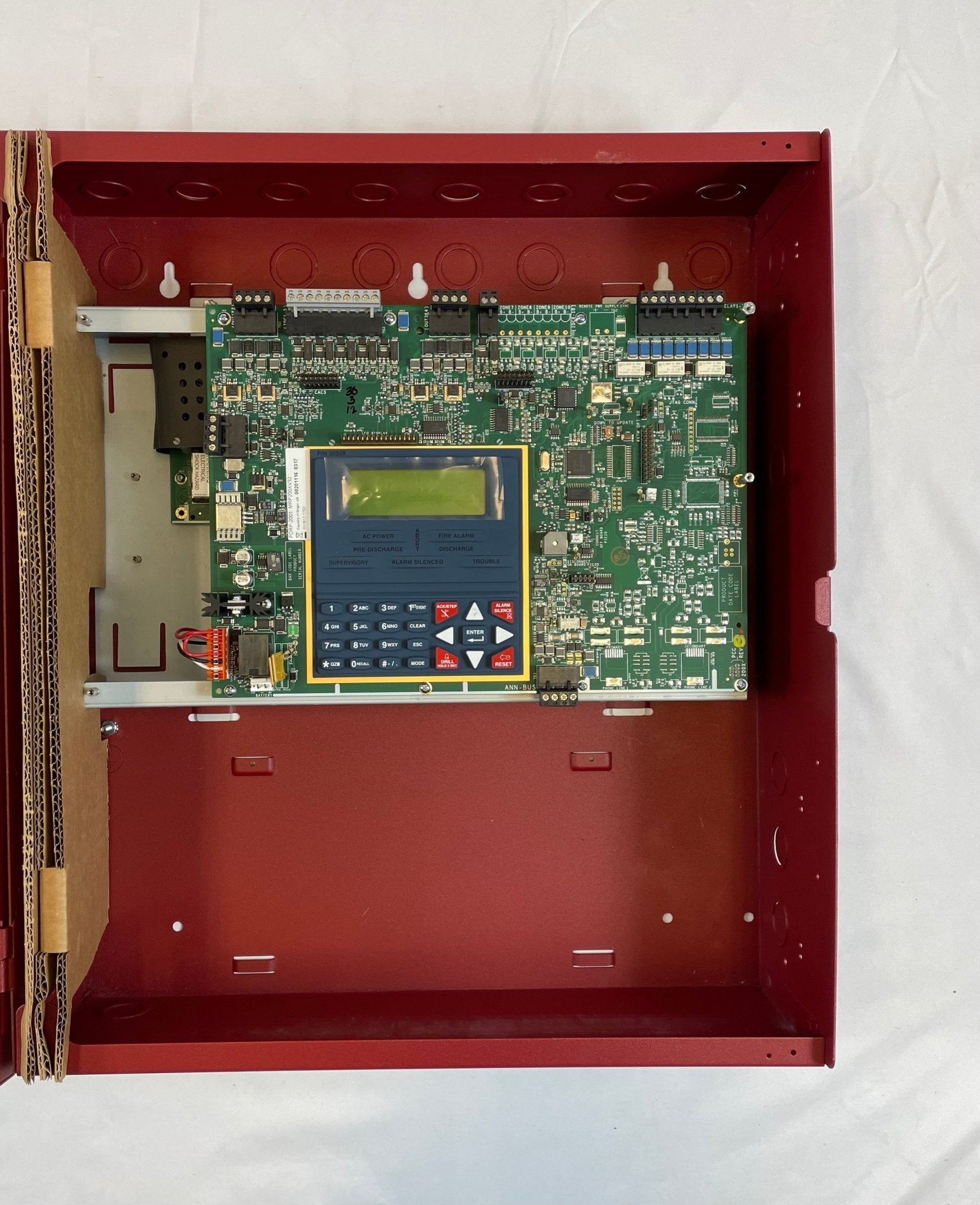

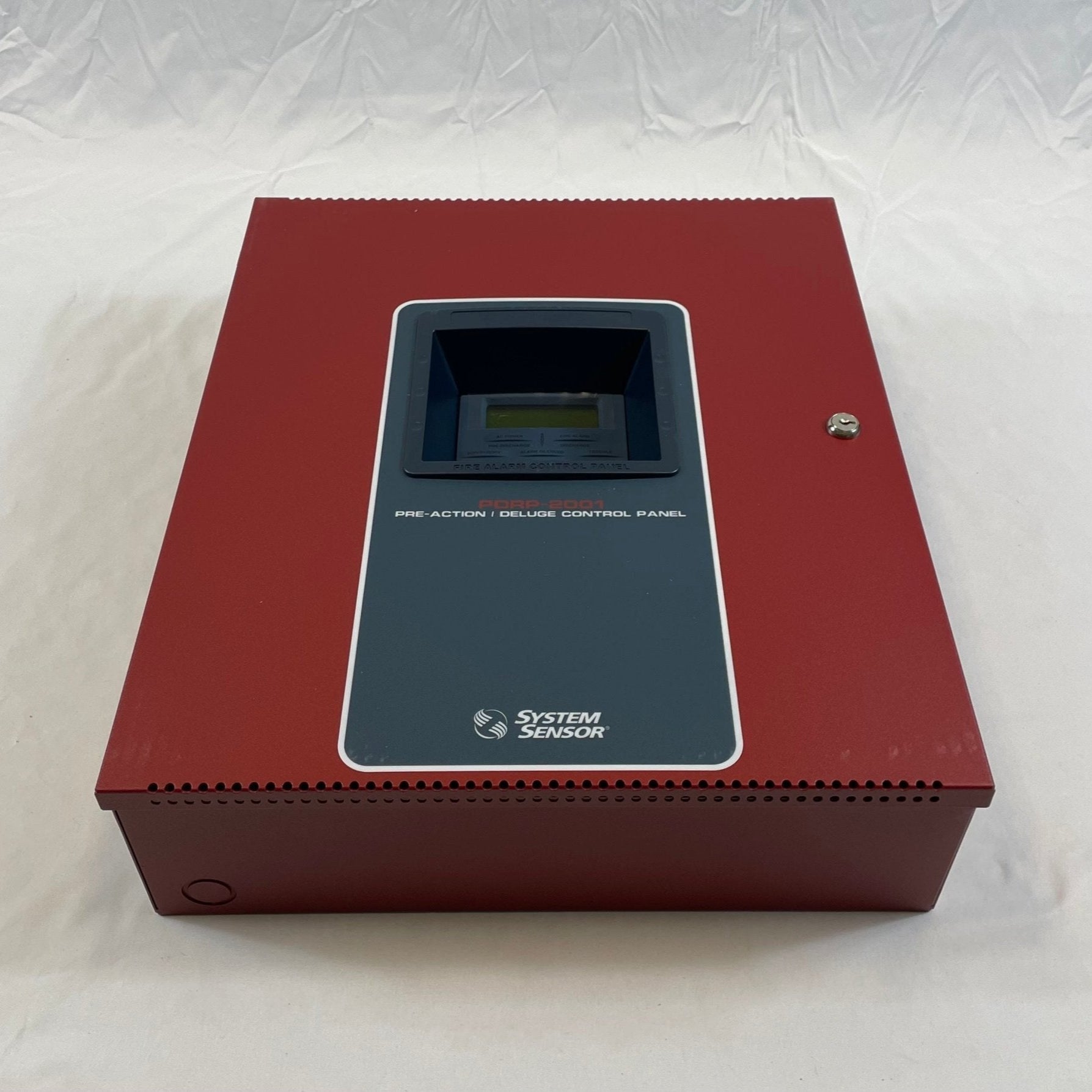

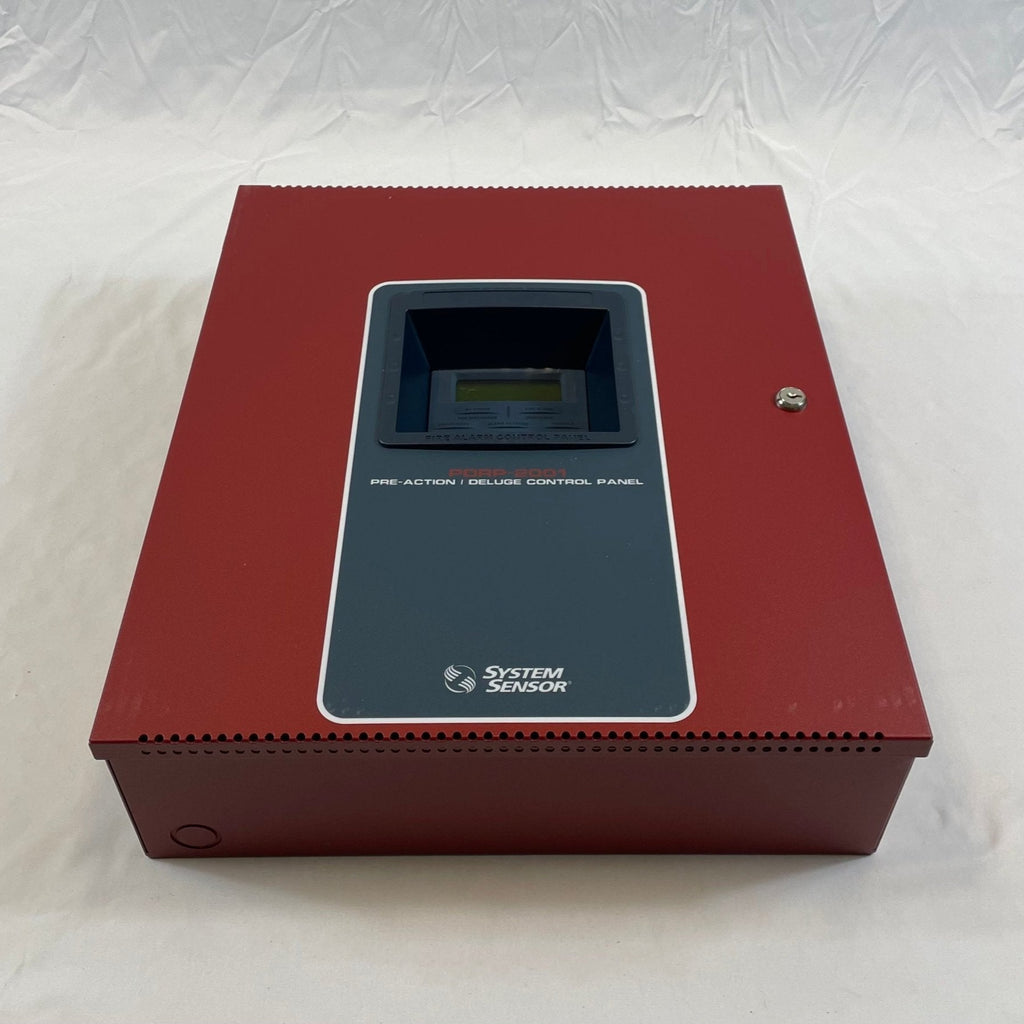

The System Sensor PDRP-2001 is a six-zone, 24 V deluge and preaction control panel for single- and dual-hazard water-based releasing applications in commercial, industrial and institutional buildings. It ships with the backbox, power supply, technical manual and a frame-and-post operating instruction sheet.
The panel works with waterflow devices, tamper switches, 2-wire and 4-wire smoke detectors, pull stations and other normally open devices, and with System Sensor i Series conventional detectors that report low temperature or maintenance conditions. It supervises wiring, AC voltage, battery charge and battery level.
Specifications
| Initiating circuits |
6 programmable, Style B (Class B); Style D (Class A) with CAC-5X |
| Output circuits |
4, programmable as NACs or releasing circuits |
| Output current |
7.0 A total at 24 VDC; 3.0 A maximum per circuit |
| Relays |
3 programmable Form C, 2 A at 30 VDC |
| AC power |
120 VAC, 50/60 Hz, 2.3 A (FLPS-7 power supply) |
| Battery charging |
Up to 26 AH; two 18 AH fit in the cabinet; 7 AH minimum |
| Display |
80-character backlit LCD |
| History log |
256 events |
| Dimensions |
20.00 x 22.50 x 8.50 in. (H x W x D) |
| Operating environment |
32 to 120°F (0 to 49°C), 93% RH non-condensing |
Features
- Designed for sprinkler standards NFPA 13, 15 and 16
- Dual hazard operation with cross-zone (double-interlock) capability
- Adjustable waterflow discharge timer and two soak timers
- Strobe synchronization with the System Sensor protocol
- Resettable and non-resettable 24 VDC special application power
- Built-in programmer and real-time clock with daylight saving time control
- ANN-BUS for up to 8 remote annunciators
- Optional CAC-5X Class A converter, 4XTM municipal box transmitter and digital alarm communicators
Related models
The PDRP-2001E is the same panel for 220/240 VAC. The PDRP-2001C adds a modified dress panel and an ANN-LED annunciator module. Batteries larger than 18 AH need a separate battery box such as the BB-26.
Documents
FAQ
What applications is the PDRP-2001 designed for?
Single- and dual-hazard deluge and preaction systems, following sprinkler standards NFPA 13, 15 and 16, with cross-zone (double-interlock) capability.
What comes with the panel?

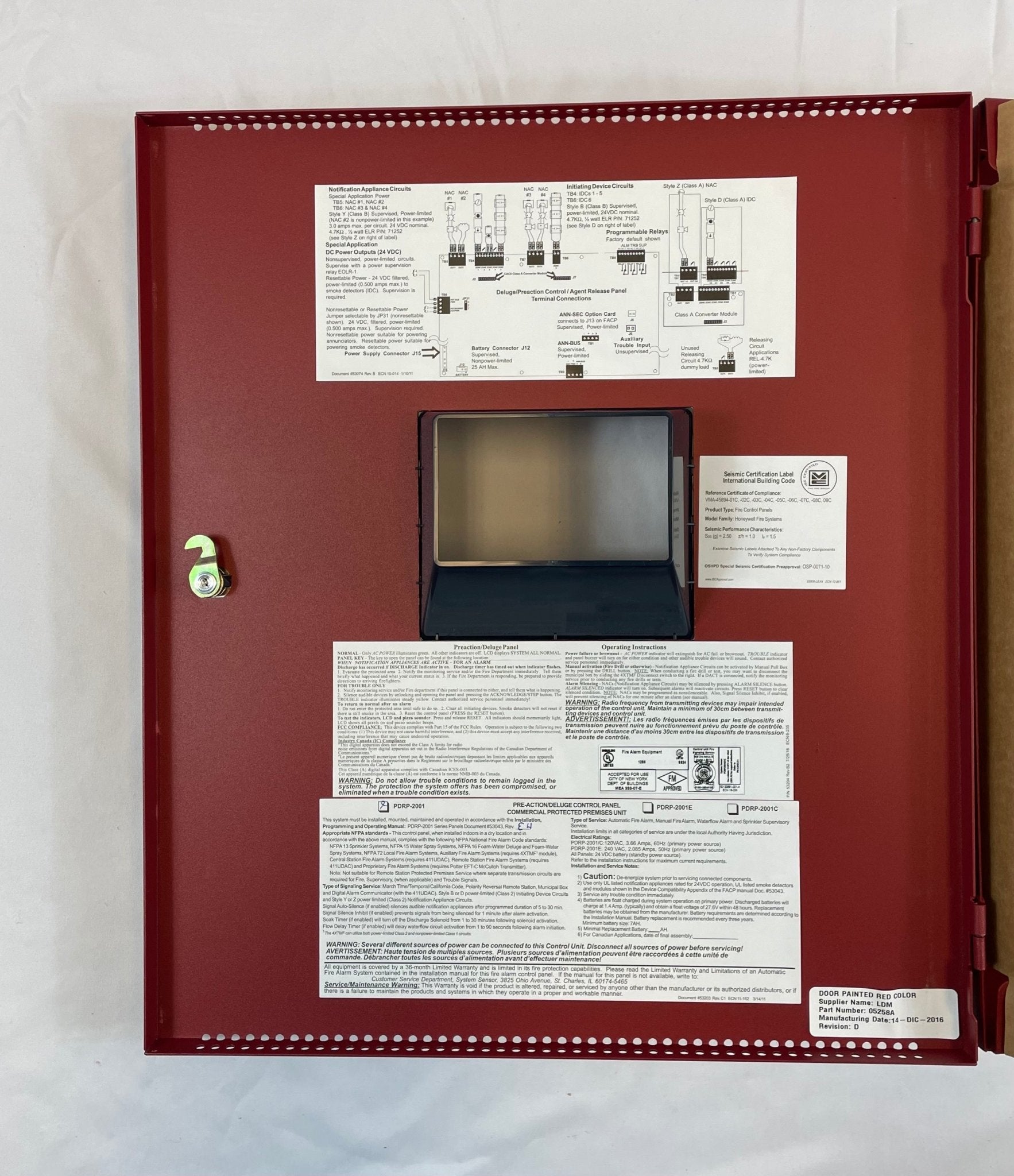

The backbox, power supply, technical manual and a frame-and-post operating instruction sheet.
How many outputs does it have?
Four output circuits programmable as notification appliance or releasing circuits, with 7.0 A total and 3.0 A maximum per circuit, plus three programmable Form C relays.
What batteries does it take?
Sealed lead-acid, 7 AH minimum. The charger supports up to 26 AH; two 18 AH batteries fit in the cabinet, and larger batteries need a battery box such as the BB-26.
