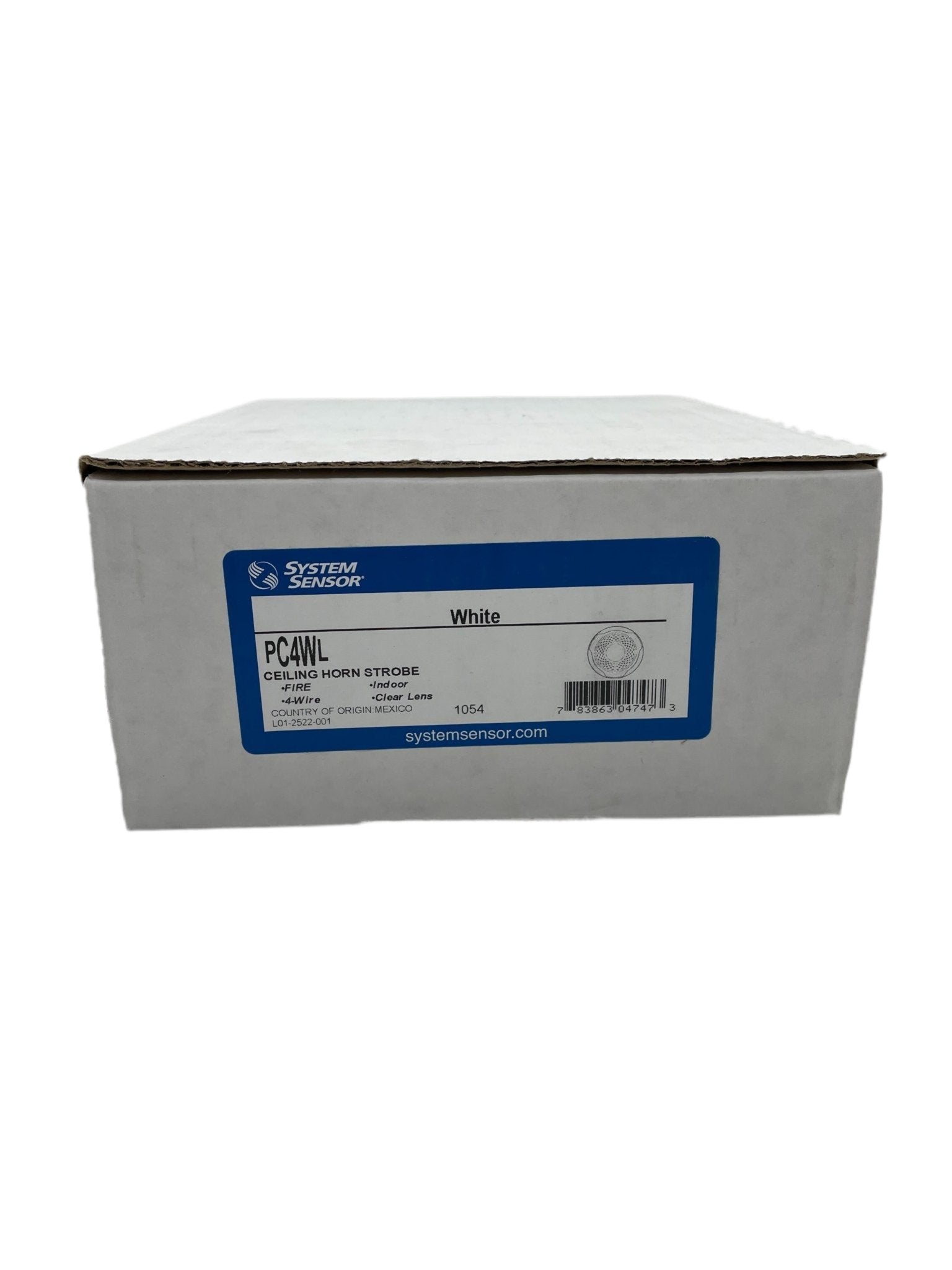

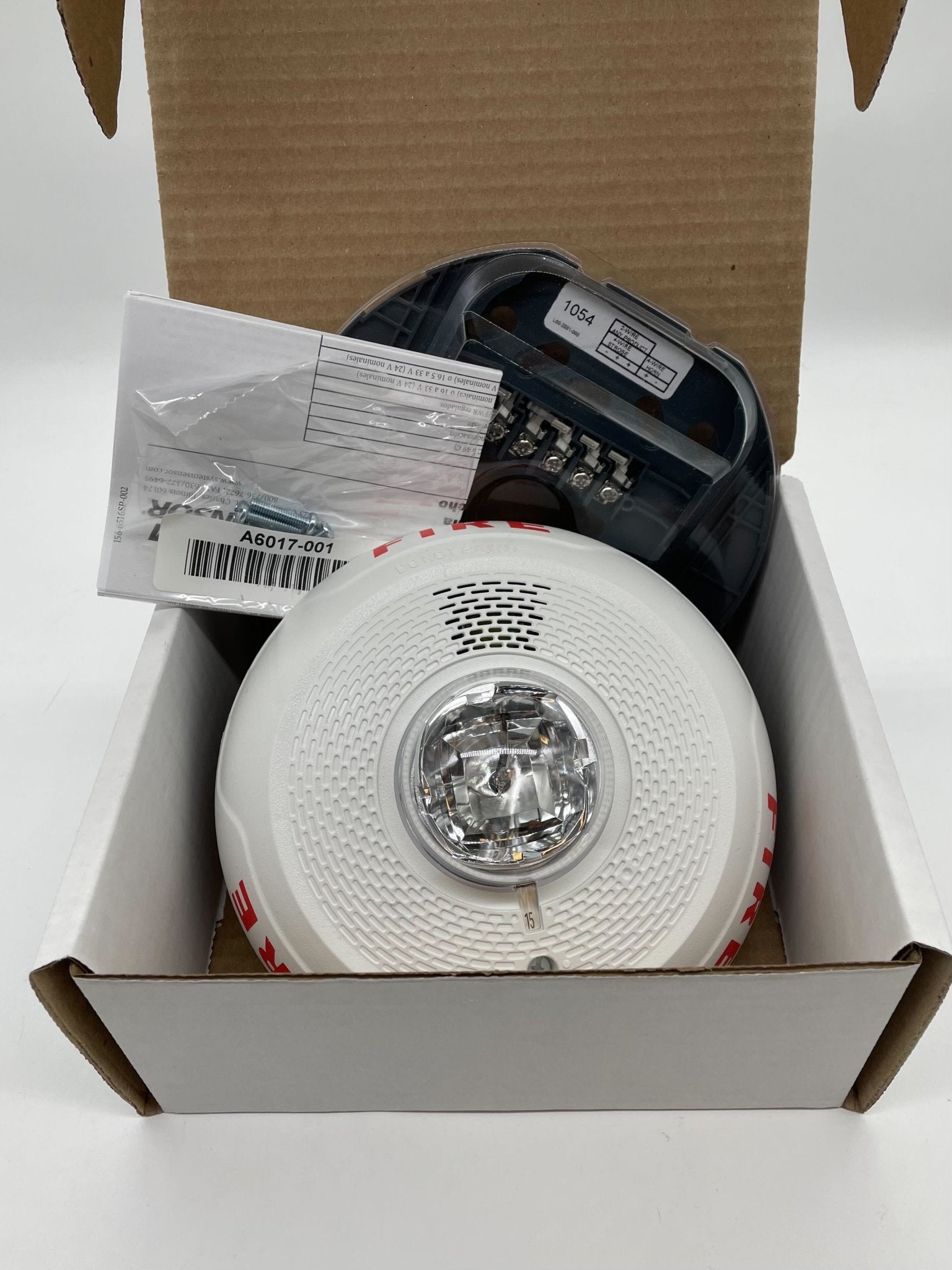

System Sensor PC4WL — L-Series four-wire indoor horn strobe for ceiling mounting, white, seven field-selectable candela settings and ten horn positions.
The 4 is the wire count. Installation manual I56-6516 states that the four-wire device provides two independent circuits, one for the horn and one for the strobe, where the two-wire PC2WL carries both on a single pair, and four-wire models add two coded horn positions the two-wire devices lack.
- Ceiling candela: 15, 30, 75, 95, 115, 150 and 177 cd field-selectable
- Strobe 41 mA at 15 cd to 226 mA at 177 cd, 16 to 33 VDC; 60 to 264 mA on FWR
- Horn 29 to 47 mA on the same range, 54 mA on FWR, at 82 to 90 dBA reverberant
- 15 and 30 cd work on 12 V or 24 V; other candela settings are not listed for 12 VDC
- Horn ANSI/UL 464, strobe ANSI/UL 1638, both public mode; xenon flashtube, one flash per second
- 6.83 in. diameter × 2.47 in. deep; 32 to 120 °F; 69 strobes maximum on one 24 V circuit
PC4RL is the same four-wire ceiling horn strobe in red and PC2WL the two-wire white version, with eight horn positions rather than ten. SCWL is the ceiling strobe with no horn. The LED refresh reaches only PC2WLED and PC2RLED.
