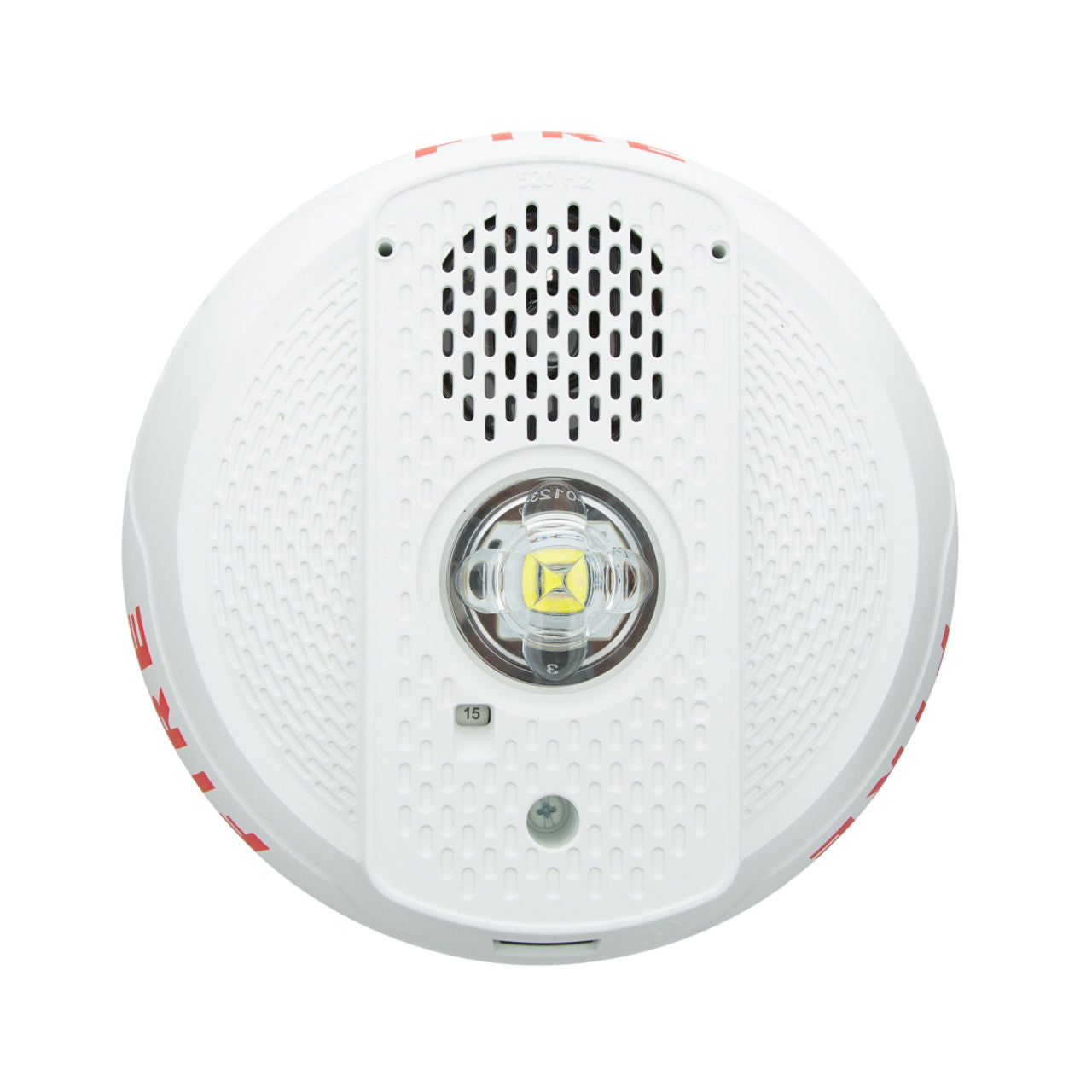

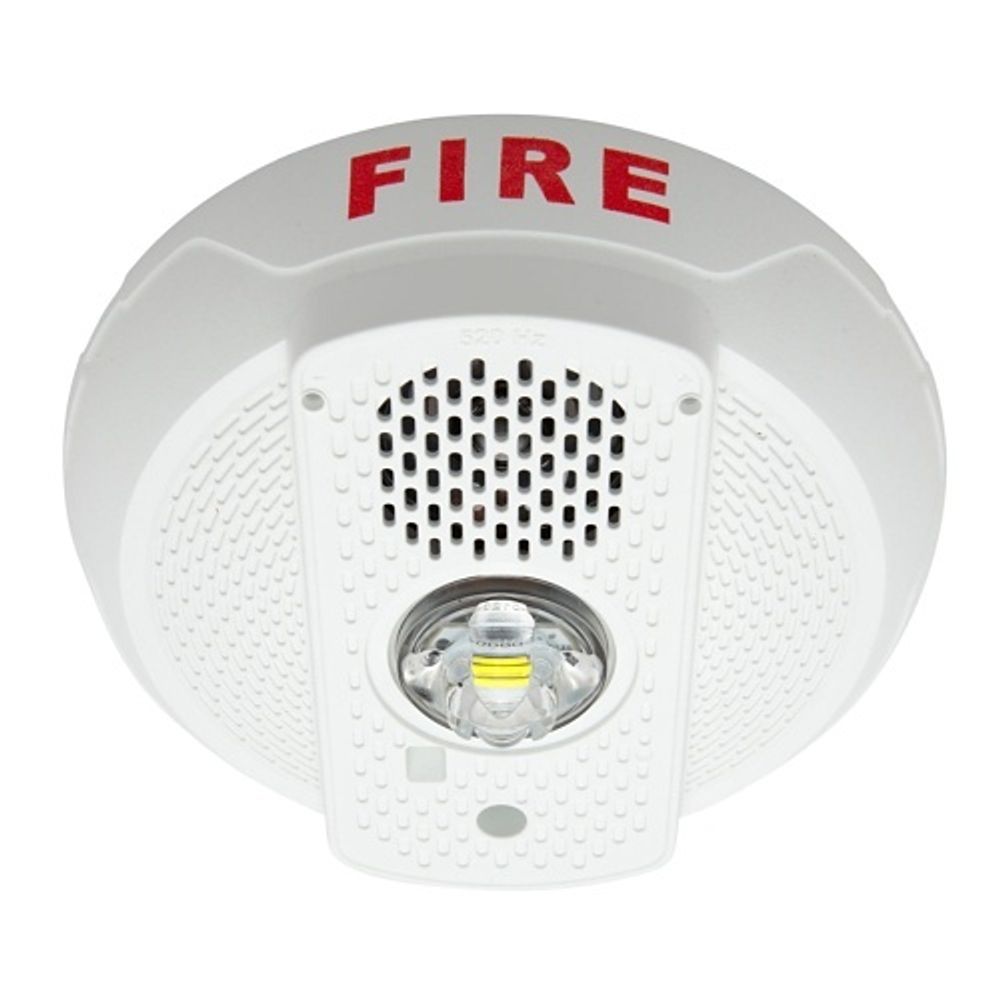

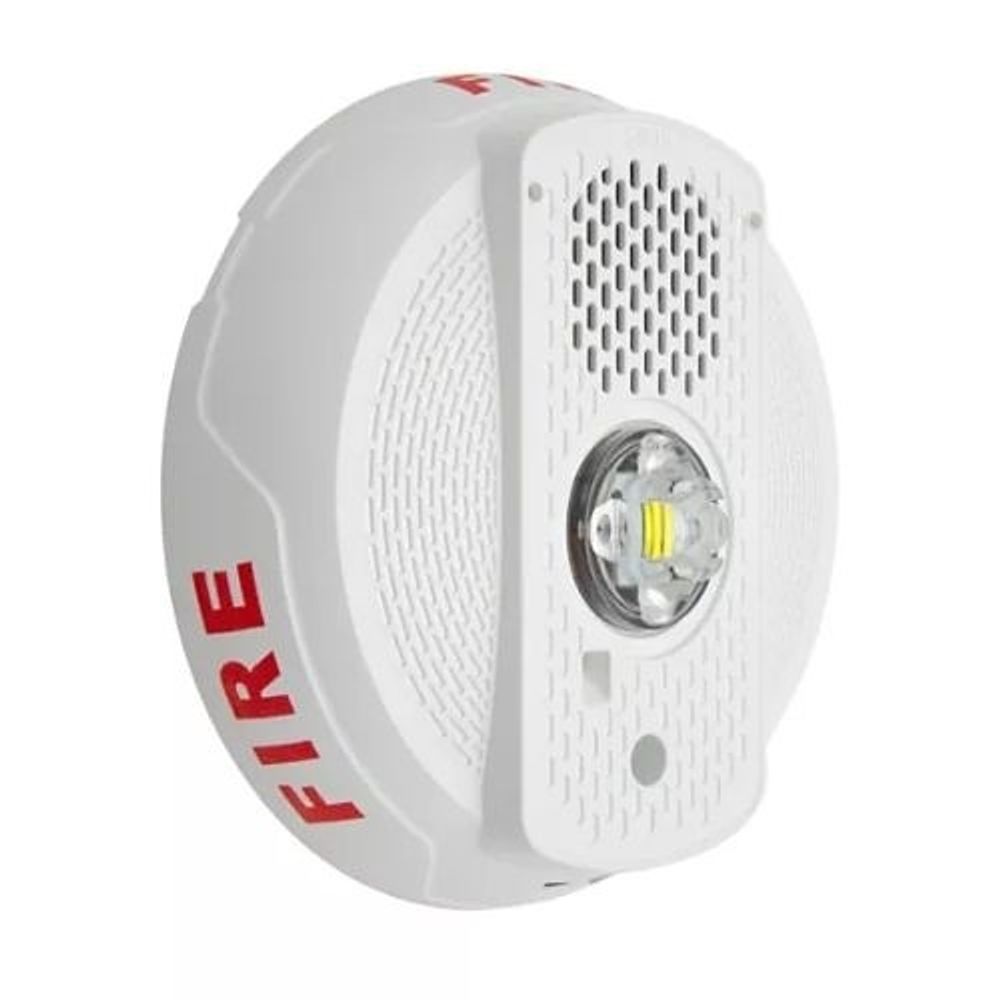

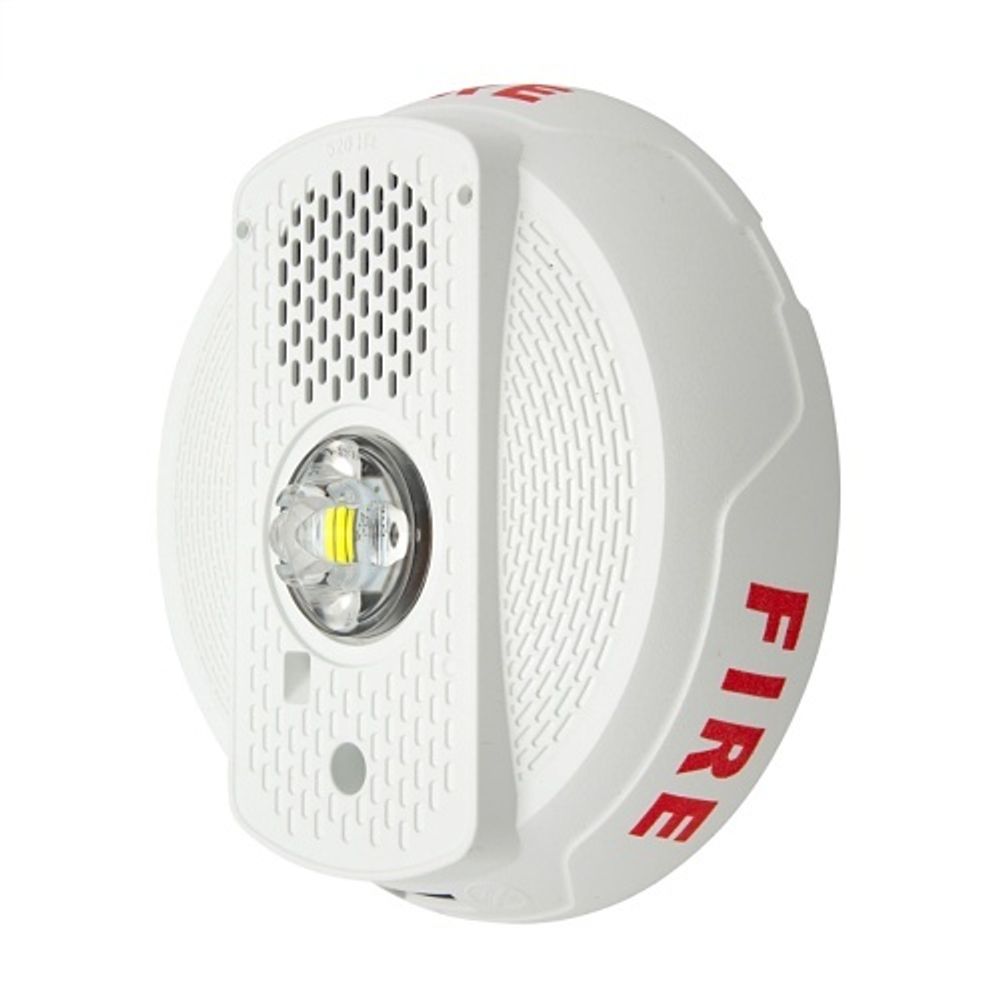

System Sensor PC2WLED-LF is a ceiling-mount low frequency sounder strobe with a white housing and FIRE marking, from the L-Series with LED platform. It produces a 520 Hz square wave tone, the low-frequency signal that NFPA 72 calls for in sleeping spaces.
It uses LED technology for a lower current draw and is electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-Series devices at 16-33 V DC.
Features
- 520 Hz +/- 10% square wave tone for NFPA 72 sleeping space requirements
- LED strobe technology for lower current draw
- Field-selectable candela on ceiling units: 15, 30, 75, 95, 115, 150 and 177
- High and low tone options to optimize current draw
- Rotary switch for candela, tone and volume selection
- Digital voltage meter (DVM) test points for diagnostics
- Plug-in mounting plate with shorting springs to check wiring continuity
- Synchronizes with UL-approved power supplies supporting System Sensor Sync protocol or the MDL Sync Module
Specifications
| Tone |
520 Hz +/- 10%, square wave |
| Candela settings |
15, 30, 75, 95, 115, 150, 177 |
| Mounting |
Ceiling |
| Housing color |
White |
| Compatible voltage range |
16-33 V DC |
