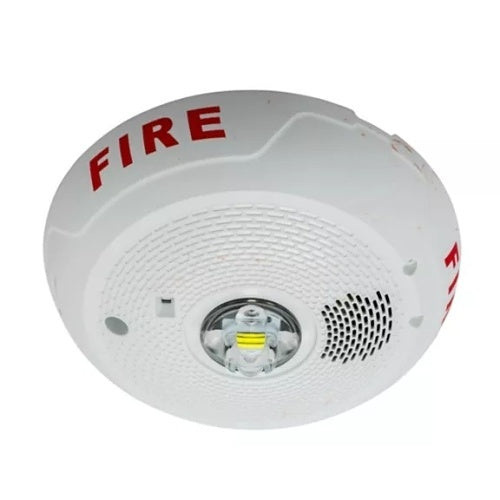

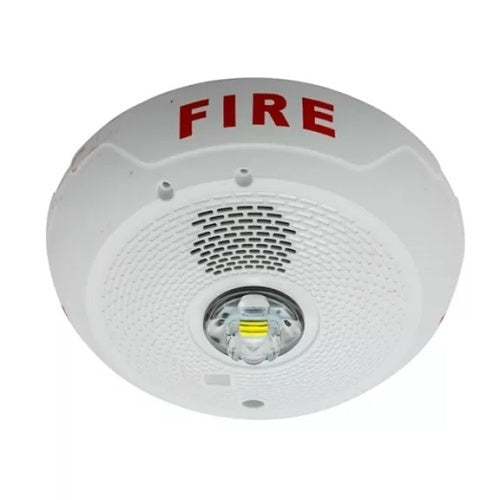

System Sensor PC2WLED — an L-Series with LED indoor 2-wire horn strobe for ceiling mounting, in a white housing, with rotary-switch selectable candela, horn tone and volume settings.
The L-Series with LED platform combines a selectable-output horn with an LED strobe. LED lighting technology offers significantly lower current draw compared to older xenon bulbs across a full candela range, which improves design flexibility for notification appliance circuits (NACs) while also reducing power supply requirements. The PC2WLED uses a universal mounting plate with a plug-in design and minimal intrusion into the back box, and the plate includes an onboard shorting spring so installers can test wiring continuity before the device is installed. Diagnostic test points on the face of the appliance allow device voltage to be measured with a digital voltage meter (DVM) without removing the appliance from the ceiling, which speeds troubleshooting and end-of-line voltage checks. Construction is tamper resistant, and the appliance is electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-Series devices.
Specifications
| Model |
PC2WLED |
| Description |
2-Wire, Horn Strobe, Ceiling, White |
| Strobe light source |
LED |
| Field-selectable candela (ceiling units) |
15, 30, 75, 95, 115, 150 and 177 cd |
| Maximum strobe current draw, 16–33 V (ceiling) |
15 cd — 18 mA; 30 cd — 22 mA; 75 cd — 70 mA; 95 cd — 75 mA; 115 cd — 90 mA; 150 cd — 110 mA; 177 cd — 115 mA |
| Nominal voltage |
Regulated 24 VDC |
| Operating voltage range |
16 to 33 V (24 V nominal) |
| Strobe flash rate |
1 flash per second |
| Horn tone patterns |
Temporal 3, non-temporal, 3.1 kHz Temporal 3 and 3.1 kHz non-temporal, each at high or low volume (eight rotary switch positions) |
| Sound output, 16–33 V DC |
87 dBA high / 79 dBA low (Temporal 3 and non-temporal); 86 dBA high / 80 dBA low (3.1 kHz tones) |
| Standard operating temperature |
32°F to 120°F (0°C to 49°C) |
| Humidity range |
10 to 93% non-condensing |
| Input terminal wire gauge |
12 to 18 AWG |
| Dimensions (ceiling strobes and horn strobes) |
6.83″ diameter (173.5 mm) |
| UL listing |
S5512, S4011 (horn strobes and strobes) |
Installation notes
-
Ceiling candela set differs from wall: ceiling units are selectable to 15, 30, 75, 95, 115, 150 and 177 cd. The 110/135/185 cd settings belong to the wall-mount models — do not carry a wall candela schedule onto a ceiling appliance.
-
24 V only: L-Series LED strobes and horn strobes are rated at a nominal regulated 24 VDC with an operating range of 16 to 33 V. The 8–17.5 V (12 V nominal) range published for this family applies to horn-only models.
-
Sizing NACs: the strobe current figures above are strobe-only. Total horn strobe current depends on the candela setting, tone pattern and volume setting together — use the horn strobe current draw table in the data sheet for NAC loading calculations.
-
Synchronization: achieved through UL approved power supplies that support the System Sensor Sync protocol, or a System Sensor MDL3 Sync Module.
-
Continuity check before mounting: the universal mounting plate has an onboard shorting spring, so wiring continuity can be verified before the appliance is plugged in.
-
Surface mounting: use the SBBCWL white ceiling surface mount back box; TRC-2W is the white universal ceiling trim ring.
Related models
-
PC2RLED — the same 2-wire ceiling horn strobe in a red housing
-
PC2WLED-B — white, bilingual FIRE/FEU marking for Canadian applications
-
SCWLED — white ceiling strobe without a horn
-
SCWLED-P — white ceiling strobe, plain housing with no FIRE marking
-
P2WLED — white wall-mount 2-wire horn strobe, using the wall candela set (15, 30, 75, 95, 110, 135, 185 cd)
Specifications taken from the System Sensor data sheet “L-Series and L-Series with LED Indoor Selectable Horns, Strobes and Horn Strobes,” document AVDS916-01 (10/03/2023). Manufacturer specifications are subject to change without notice.
