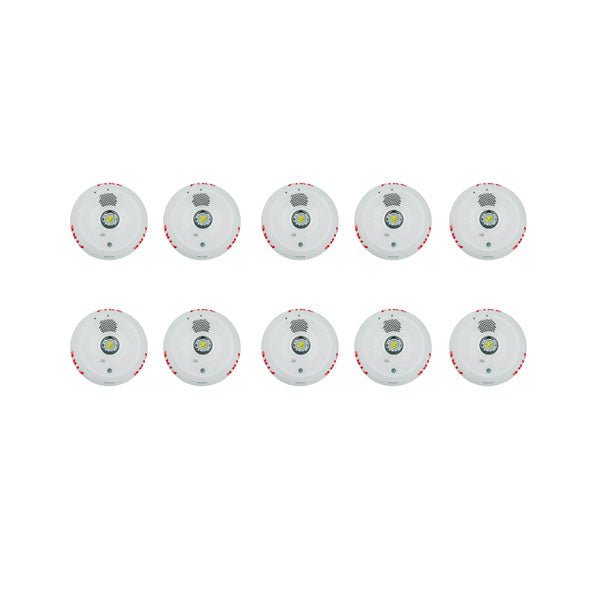

System Sensor PC2WLED-BP10 — bulk pack of L-Series with LED 2-wire horn strobes, ceiling mount, white, marked FIRE.
A 2-wire horn strobe carries the audible and visible signal on one notification appliance circuit. The LED optics of this generation draw about 40 percent less current on average than the xenon lamps they replace, so a designer can hang more appliances on the same NAC and specify a smaller power supply. Candela, tone and volume are set by rotary switches on the appliance.
- Field-selectable ceiling candela: 15, 30, 75, 95, 115, 150 and 177 cd
- Regulated 24 VDC nominal, operating range 16 to 33 V
- 35 mA and 87 dBA at 15 cd on the Temporal 3 high-volume setting
- Eight tone positions: Temporal 3 and non-temporal, each also at 3.1 kHz, high or low volume
- DVM test points on the face for voltage checks in place
- 6.83" (173.5 mm) diameter; 32°F to 120°F, 10 to 93% RH
Bulletin M23.2SS lists PC2WLED as the replacement for PC2WL. PC2RLED is the red ceiling version, P2WLED the white wall horn strobe, SCWLED the ceiling strobe without a horn, PC2WLED-B the bilingual FIRE/FEU housing.
Documents
FAQ
How many horn strobes are in the PC2WLED-BP10?
It is a bulk pack of ten PC2WLED single units.
Which candela settings are available?
Ceiling settings of 15, 30, 75, 95, 115, 150 and 177 cd, selected by rotary switch.
What does it replace?
System Sensor bulletin M23.2SS lists the PC2WLED as the replacement for the PC2WL.
What voltage does it need?
Regulated 24 VDC nominal, with an operating range of 16 to 33 V.
