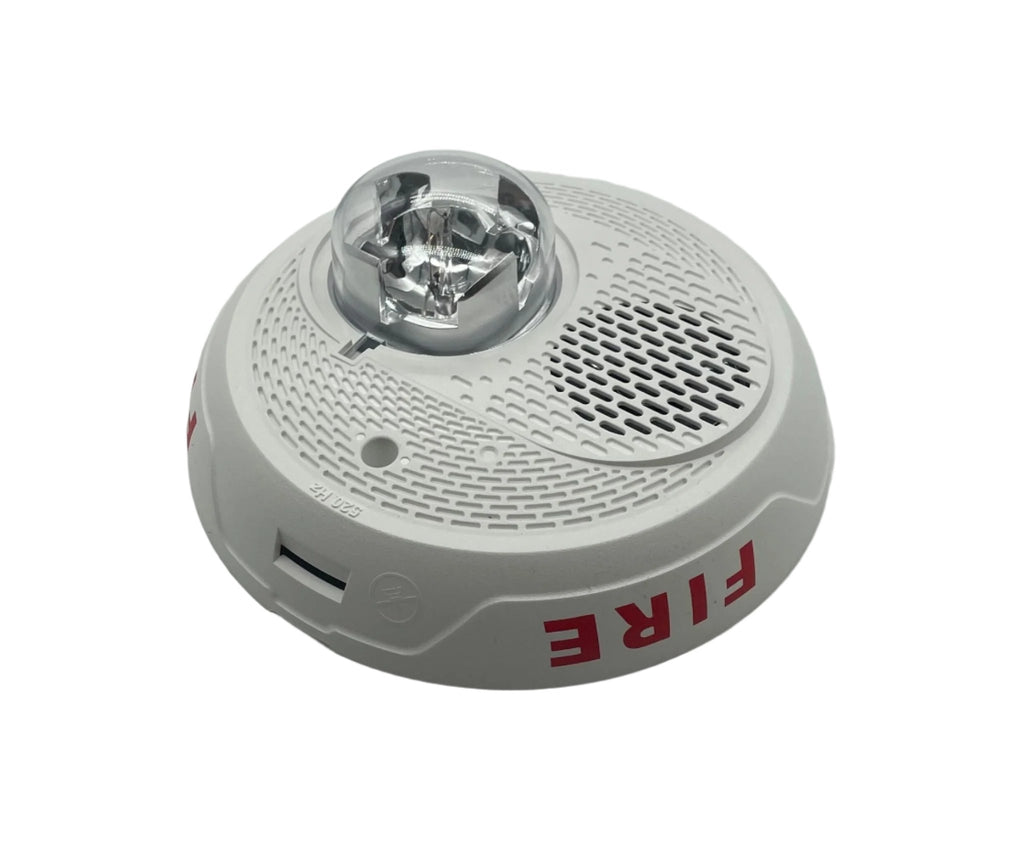

System Sensor PC2WL-LF L-Series Low Frequency Ceiling-Mount Sounder Strobe
PC2WL-LF: LF Sounder Strobe · 2-wire · Ceiling · White · Marked FIRE
The L-Series offers the most versatile and easy-to-use line of low frequency sounderstrobes in the industry. With white and red plastic housings, certified for wall and ceiling mounting, L-Series Low Frequency can meet virtually any application requirement. The low frequency sounder strobes were designed to address the NFPA 72 sleeping space requirements that require a low frequency notification appliance that operates within frequency range of 520 Hz ± 10% and is of a square wave tone. Like the entire L-Series product line they include a variety of features thatincrease their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.To further simplify installation and protect devices from construction damage, L-Series uses a universal mounting plate with an onboard shorting spring, so installers can test wiring continuity before the device is installed.
Key Features
- 520 Hz ± 10% square wave tone, NFPA compliance
- Full candela range plus High/Low tone options to optimize current draw for a wide variety of applications
- Field-selectable candela settings. Wall units: 15, 30, 75, 95, 110, 135, and 185. Ceiling units: 15, 30, 75, 95, 115, 150, and 177
- Rotary switch for High/Low, Temp3, Temp4, and Continuous settings

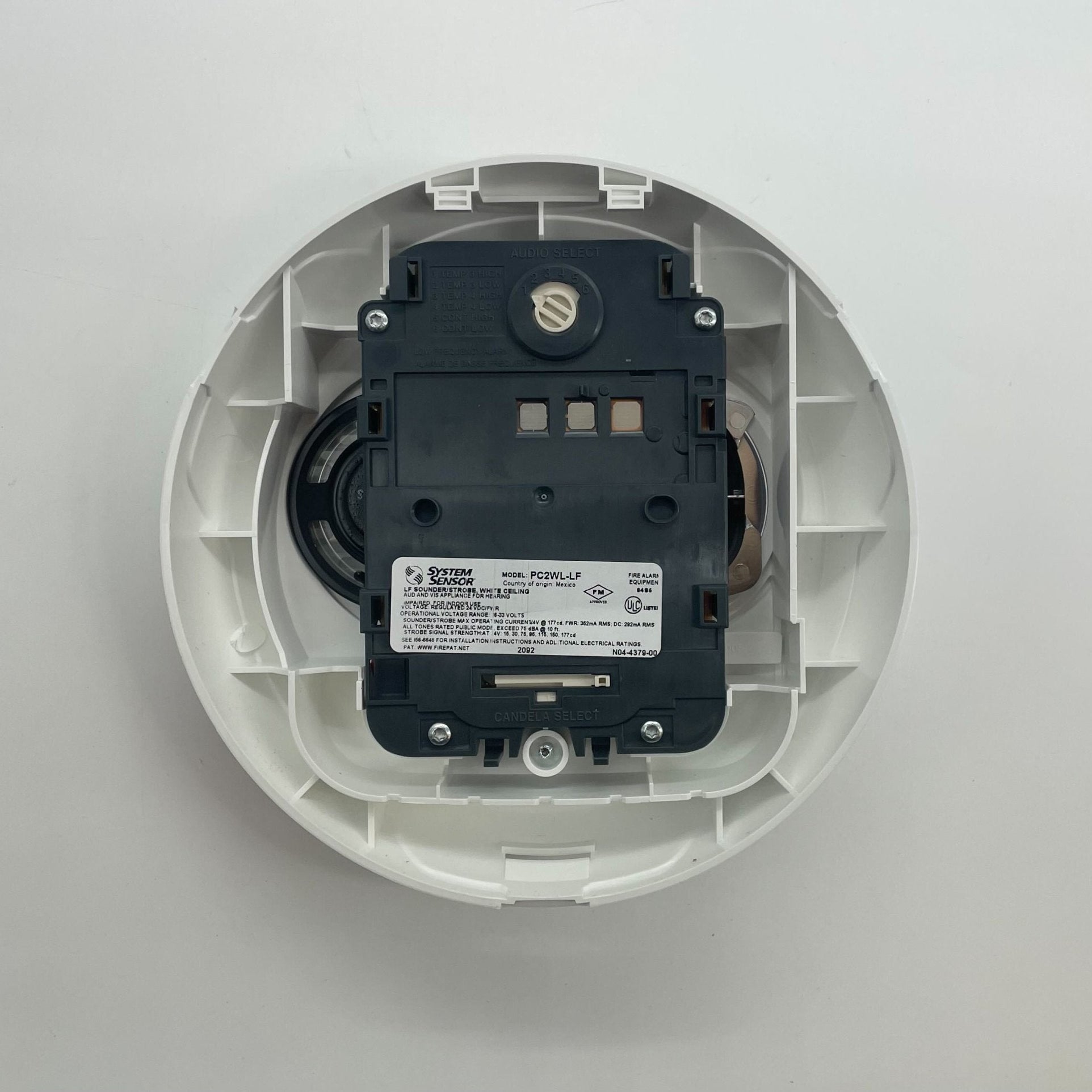

- Plug-in design with minimal intrusion into the back box

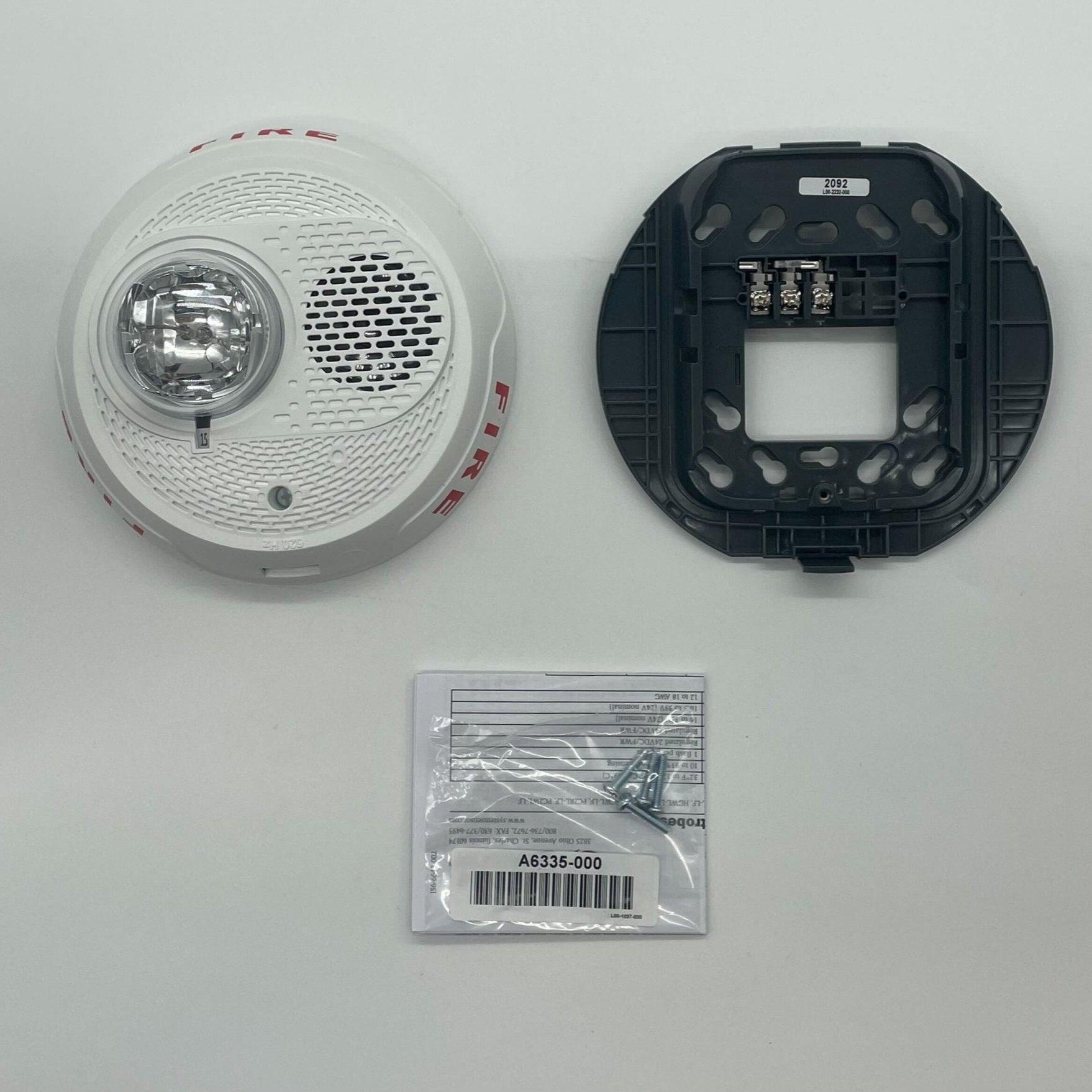

- Mounting plate shorting spring checks wiring continuity before device installation
- Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices (Direct replacement for HW/R-LF and P2R/WH-LF)
- Compatible with MDL3 sync module
- Round sounder strobes certified for ceiling and wall
- Updated modern aesthetics
Documents & Downloads
FAQ
Why use a low frequency sounder strobe?
NFPA 72 sleeping space requirements call for a low frequency appliance with a 520 Hz ± 10% square wave tone, which this device produces.
Which candela settings does the ceiling model have?
15, 30, 75, 95, 115, 150 and 177 cd, field selectable.
What back box does it need?
A standard 4 x 4 x 1-1/2 in. box, 4 in. octagon box or double-gang box; two-wire products also mount to a single-gang 2 x 4 x 1-7/8 in. box, using the universal mounting plate.
Does it replace older SpectrAlert low frequency devices?
Yes. System Sensor lists it as electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices.
