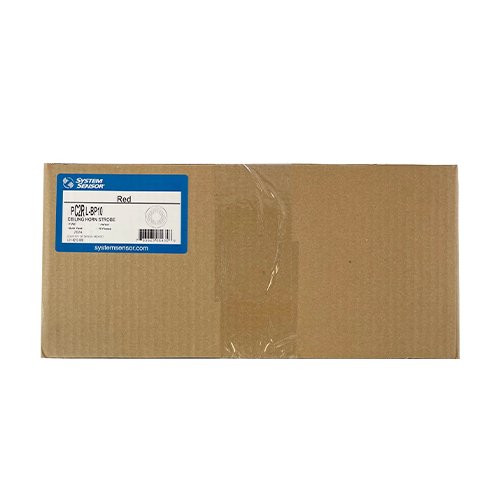

System Sensor PC2RL-BP10 is a contractor bulk pack of ten PC2RL horn strobes: System Sensor L-Series indoor, 2-wire, ceiling mount, red housing marked FIRE, with a xenon strobe. Buying the pack keeps every device on a job from the same series and lowers the cost per unit.
Each unit has a plug-in design with minimal intrusion into the back box and a universal mounting plate whose shorting spring lets you check wiring continuity before the device is installed. Candela, horn tone and volume are set in the field, and 12 or 24 V operation is selected automatically at 15 and 30 cd. To synchronize strobes and silence the horns on one 2-wire circuit, add the System Sensor MDL3R Sync•Circuit module.
The LED version of this pack is the PC2RLED-BP10, which draws significantly less current than the xenon PC2RL.
Features
- 10 × PC2RL horn strobes in one pack
- Field-selectable candela: 15, 30, 75, 95, 115, 150 and 177 cd
- Horn rated at 88+ dBA at 16 V; rotary switch for horn tone and two volume settings
- Automatic selection of 12 or 24 V operation at 15 and 30 cd
- Universal mounting plate with shorting spring to check wiring continuity before installation
- Compatible with the MDL3 sync module and with legacy SpectrAlert and SpectrAlert Advance devices
Specifications
| Pack contents |
10 × PC2RL |
| Device |
2-wire horn strobe, ceiling mount, red, FIRE marking, indoor |
| Strobe |
Xenon flash tube, 1 flash per second |
| Candela (ceiling) |
15, 30, 75, 95, 115, 150, 177 cd, field-selectable |
| Horn |
88+ dBA at 16 V; rotary switch for tone, two volume settings |
| Nominal voltage |
Regulated 12 VDC or regulated 24 VDC/FWR |
| Operating voltage range |
8 to 17.5 V (12 V nominal) or 16 to 33 V (24 V nominal) |
| Operating voltage with MDL3 |
8.5 to 17.5 V (12 V nominal) or 16.5 to 33 V (24 V nominal) |
| Input terminal wire gauge |
12 to 18 AWG |
| Dimensions (with lens) |
6.8" diameter × 2.5" high (173 × 64 mm) |
| Back box |
Standard 4 × 4 × 1½", 4" octagon, double-gang, or single-gang 2 × 4 × 1⅝"; SBBCRL surface mount back box |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Humidity |
10 to 93% non-condensing |
| Standards |
UL 1971 and UL 464 |
