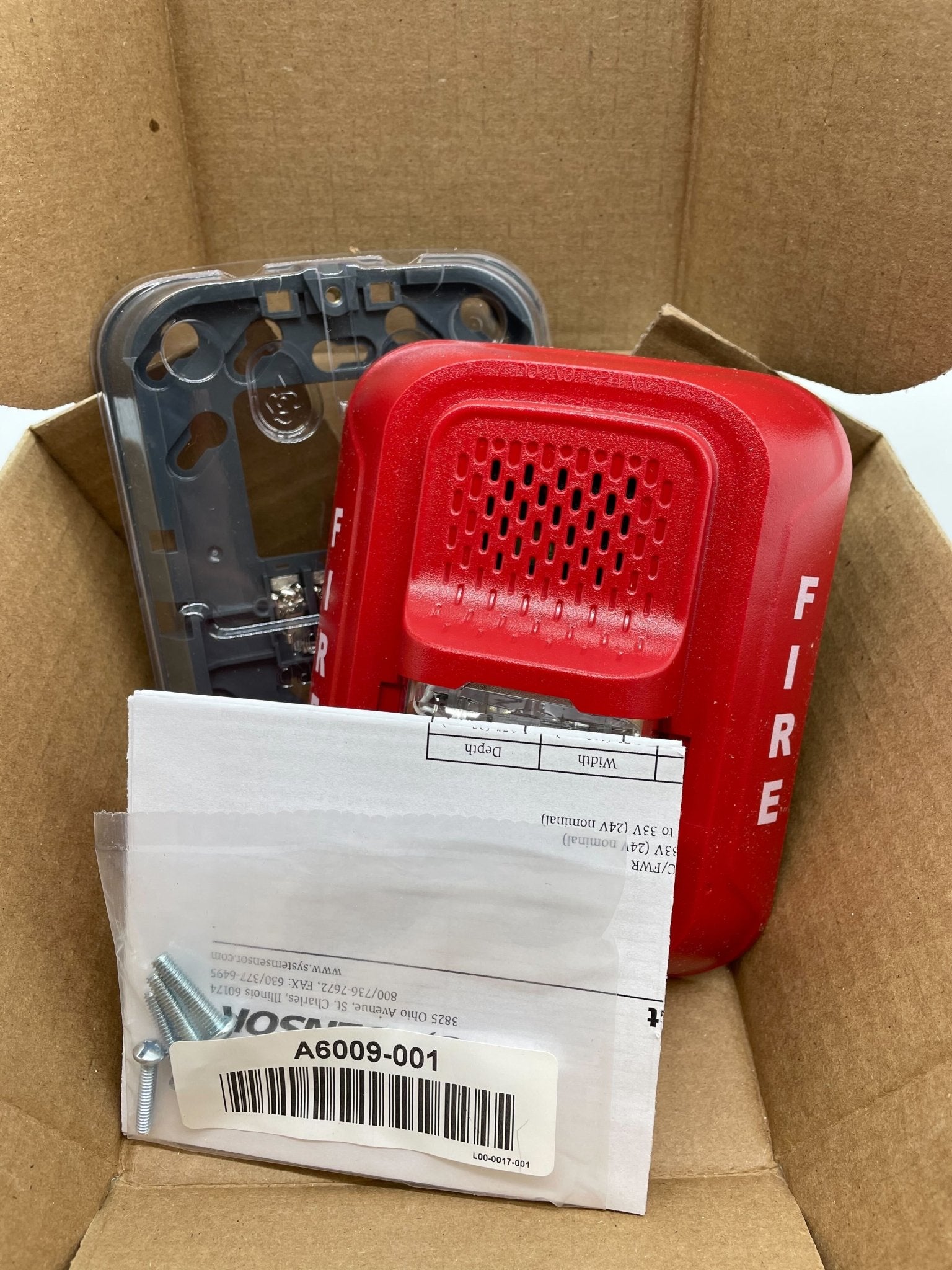

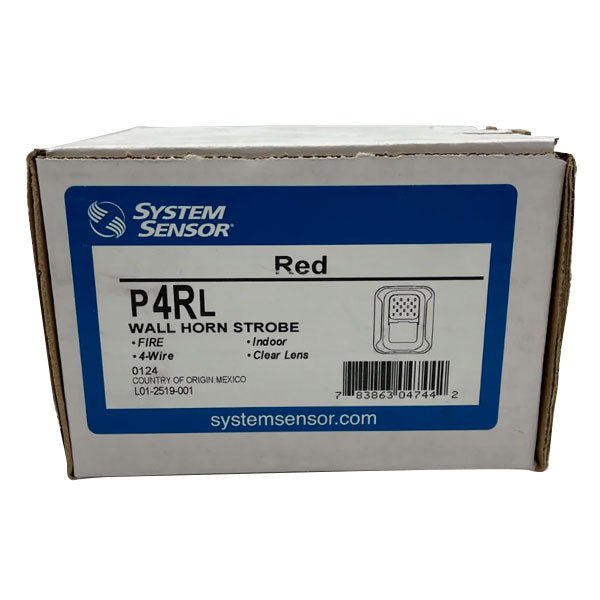

System Sensor P4RL — L-Series indoor four-wire wall-mount horn strobe, red.
The 4 is the wiring, and it is the whole point of the part: horn and strobe sit on two independent circuits, terminals 1, 2 and 3 feeding the strobe and 4 and 5 the horn, each with its own end-of-line device. That lets a panel silence the audible signal while the visible signal keeps flashing, which a two-wire appliance cannot do.
- Field-selectable candela: 15, 30, 75, 95, 110, 135 and 185
- 15 and 30 cd work automatically on 12 or 24 volts; other settings are not certified for 12V DC
- Nominal 12VDC or 24DC/FWR; operating range 8 to 17.5V or 16 to 33V
- Ten rotary switch tone and volume settings, including coded positions unavailable on two-wire models
- Reverberant output 84 to 90 dBA at 16 to 33 volts; horn certified to ANSI/UL 464
- 5.6" L × 4.7" W × 1.25" D; indoor only, 32°F to 120°F
P4WL is the identical white unit and P2RL the two-wire red equivalent, which loses the separate horn circuit. Strobes must stay powered for the horn to operate. A -P suffix denotes a plain cover without the FIRE marking this model carries.
Documents
FAQ
What back box does the P4RL mount on?
Standard L-Series wall devices mount to a 2 x 4 x 1-7/8 in. box, a 4 x 4 x 1-1/2 in. box, a 4 in. octagon box or a double-gang box, using the universal mounting plate.
Which candela settings are available?
15, 30, 75, 95, 110, 135 and 185 cd. At 15 and 30 cd the device selects 12 or 24 V operation automatically.
How are the horn tone and volume set?
With a rotary switch that selects the horn tone and one of two volume levels. The horn is rated at 88+ dBA at 16 volts.
Will it work with older System Sensor devices?
Yes. L-Series devices are electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices and work with the MDL3 sync module.
