P2WL-LF — System Sensor L-Series indoor selectable-output low frequency sounder strobe, 2-wire, wall mount, white, combining a 520 Hz ± 10% square wave sounder with a xenon strobe.

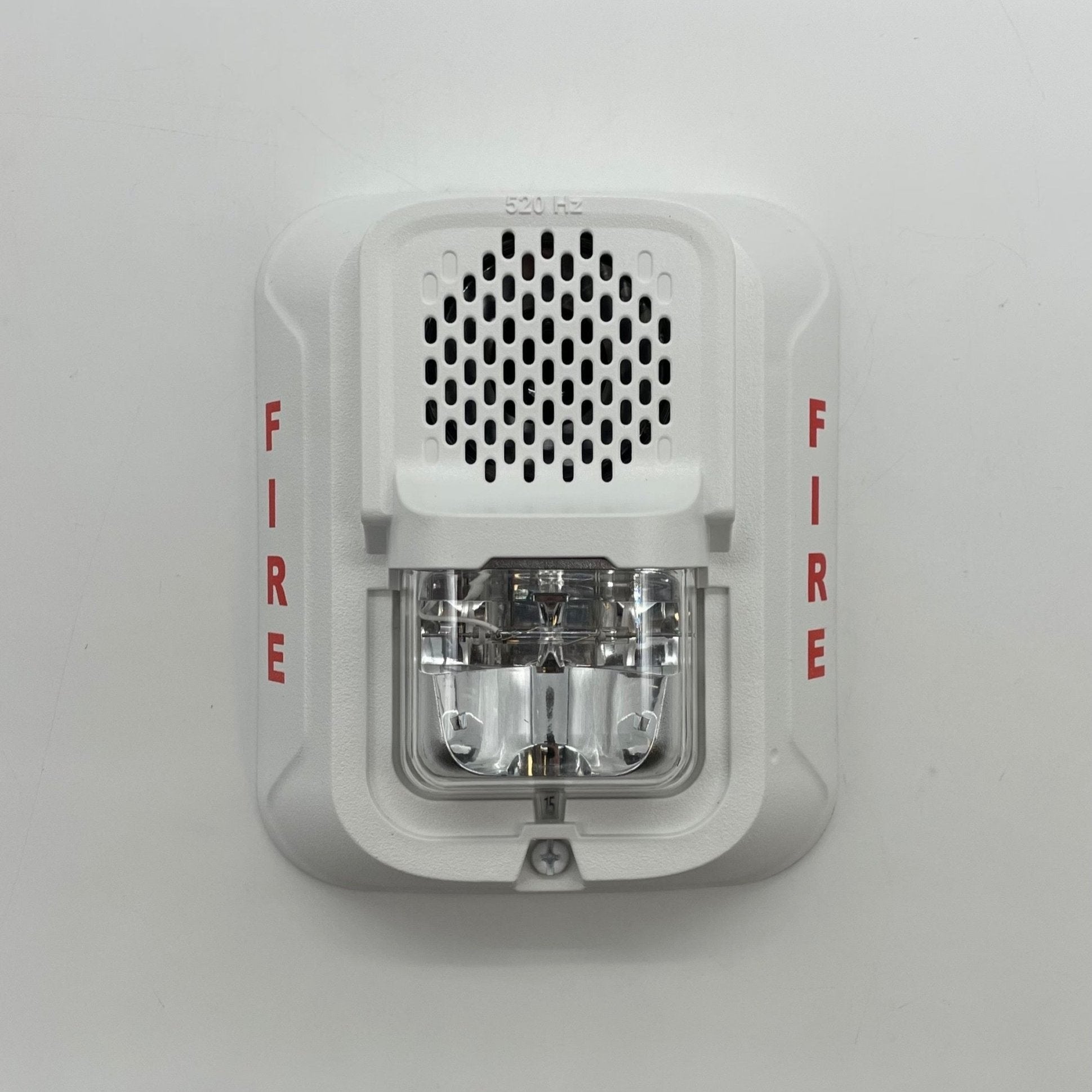

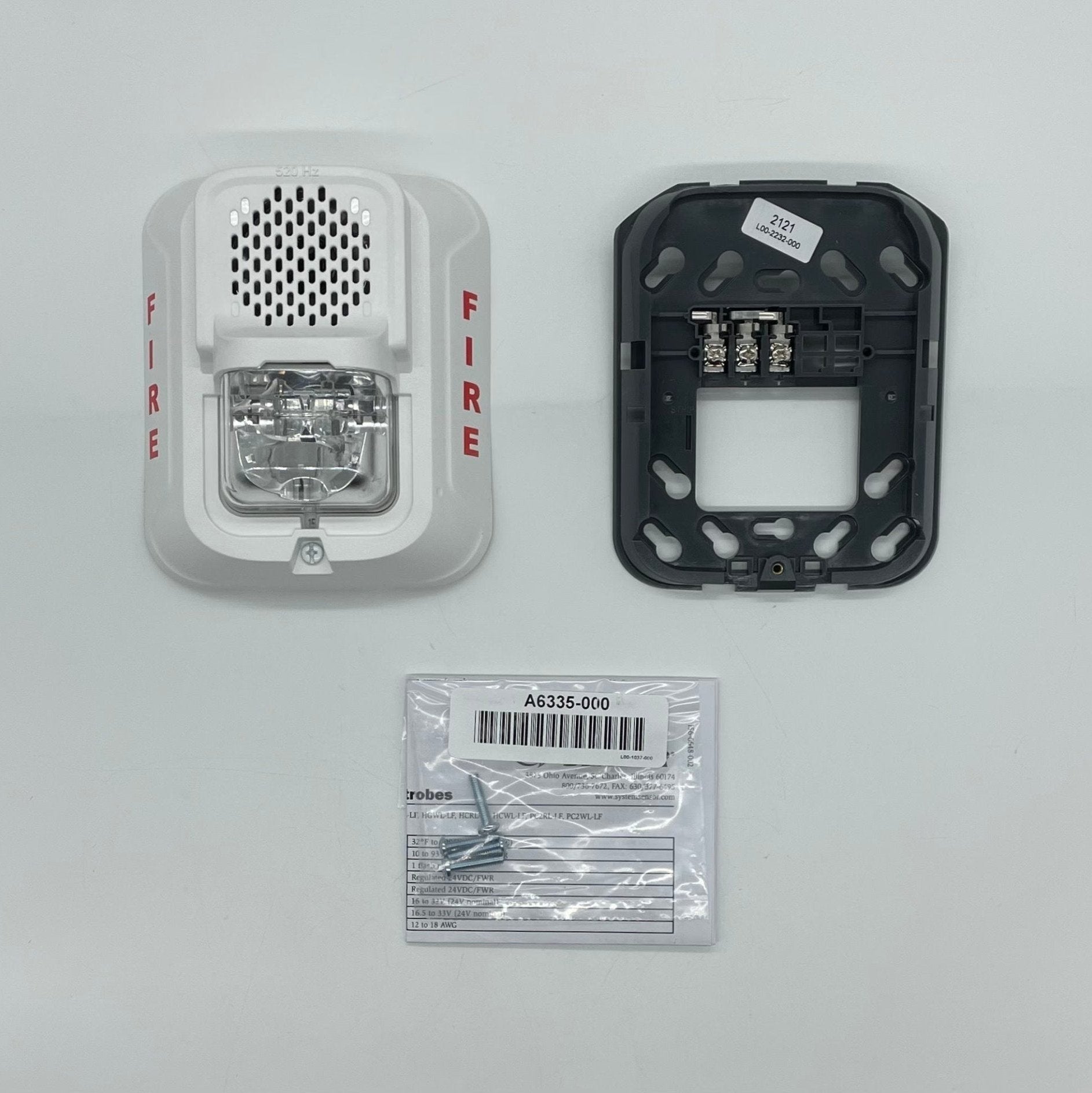

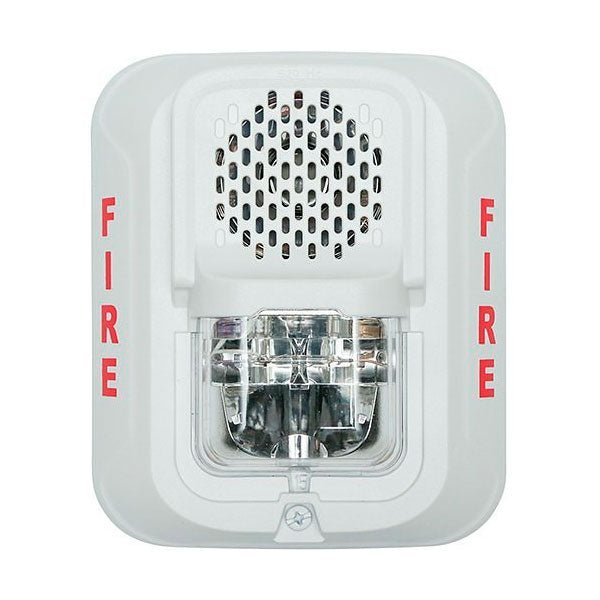

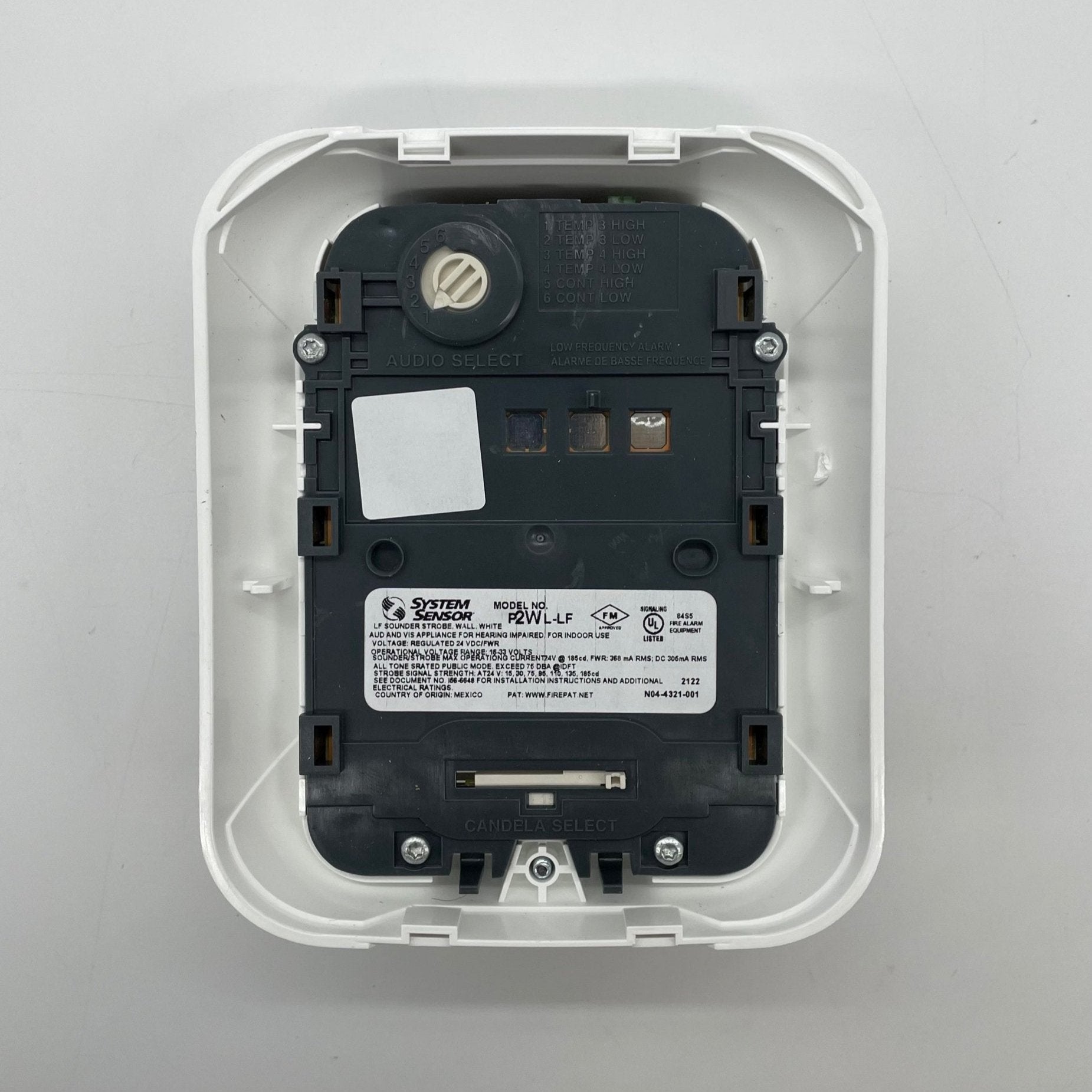

The L-Series low frequency sounder strobes were designed to address the NFPA 72 sleeping space requirement for a notification appliance operating within a frequency range of 520 Hz ± 10% with a square wave tone. The appliance uses the L-Series plug-in design with minimal intrusion into the back box, and a universal mounting plate with an onboard shorting spring so installers can test wiring continuity before the device is installed. Candela, tone pattern and volume are all field selectable, and the housing carries a permanent marking that reads “520 Hz”. The P2WL-LF is a direct replacement for the earlier SpectrAlert Advance P2WH-LF and is electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices.

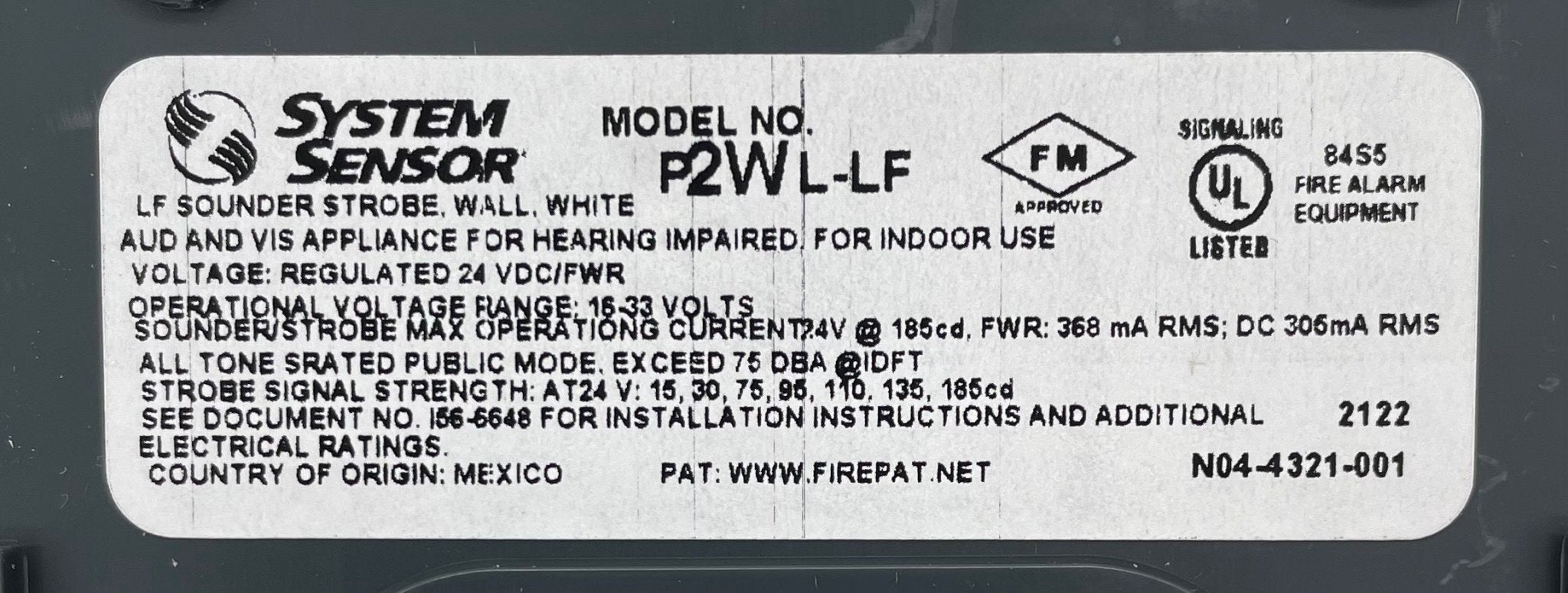

Specifications
| Type |
2-wire low frequency sounder strobe, wall mount, white |
| Candela settings (wall) |
Field-selectable 15, 30, 75, 95, 110, 135 and 185 cd |
| Tone frequency |
520 Hz ± 10% square wave |
| Nominal voltage |
Regulated 24 VDC/FWR |
| Operating voltage range |
16 to 33 V (24 V nominal) |
| Strobe |
Xenon flash tube with lens/reflector system, 1 flash per second |
| Rotary switch positions |
Temporal 3, Temporal 4 and Continuous, each at High or Low volume (6 positions) |
| Sound output |
80 dBA at High volume; 76 dBA at Low volume (DC and FWR) |
| Current draw, DC, Temporal 3 High |
98 mA at 15 cd; 115 at 30; 158 at 75; 173 at 95; 182 at 110; 212 at 135; 266 at 185 |
| Current draw, DC, Temporal 3 Low |
98 mA at 15 cd; 102 at 30; 141 at 75; 162 at 95; 173 at 110; 202 at 135; 255 at 185 |
| Current draw, DC, Temporal 4 High |
98 mA at 15 cd; 108 at 30; 137 at 75; 151 at 95; 178 at 110; 202 at 135; 252 at 185 |
| Current draw, DC, Temporal 4 Low |
102 mA at 15 cd; 104 at 30; 122 at 75; 136 at 95; 163 at 110; 187 at 135; 237 at 185 |
| Current draw, DC, Continuous High |
141 mA at 15 cd; 158 at 30; 198 at 75; 216 at 95; 234 at 110; 264 at 135; 305 at 185 |
| Current draw, DC, Continuous Low |
120 mA at 15 cd; 128 at 30; 179 at 75; 196 at 95; 215 at 110; 244 at 135; 285 at 185 |
| Current draw, FWR, Continuous High |
190 mA at 15 cd; 207 at 30; 249 at 75; 268 at 95; 289 at 110; 321 at 135; 368 at 185 (highest FWR draw) |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Humidity range |
10 to 93% non-condensing |
| Input terminal wire gauge |
12 to 18 AWG |
| Dimensions (including lens) |
5.6" L x 4.7" W x 1.9" D (142 mm L x 119 mm W x 49 mm D) |
| Listings |
UL 1971 and UL 464 |
Installation notes
-
24 volts only: L-Series low frequency sounder strobes are regulated 24 VDC/FWR appliances with a 16 to 33 V operating range. There is no 12-volt option on this device.
-
Wall candela values: the selectable range 15, 30, 75, 95, 110, 135 and 185 cd is the wall set. The ceiling model PC2WL-LF uses a different set (15, 30, 75, 95, 115, 150, 177) — the two are not interchangeable in a design.
-
No Coded setting: the sounder on sounder strobe models operates on a non-coded power supply and offers Temporal 3, Temporal 4 and Continuous only. The Coded position exists on the sounder-only models such as the HWL-LF.
-
FWR draws considerably more current than DC at the same setting — for example 368 mA against 305 mA at 185 cd Continuous High. Size the notification appliance circuit on the figure matching the actual supply type.
-
Back boxes: a standard 4 x 4 x 1-1/2-inch back box, 4-inch octagon box or double-gang box. Being a 2-wire product it may also mount to a single-gang 2 x 4 x 1-7/8-inch back box.
-
Synchronization: compatible with the MDL3 Sync•Circuit module, which synchronizes strobes at 1 Hz and the low frequency sounder at temporal three, and can silence the sounder while the strobes continue over a single pair of wires. On the MDL3, 24-volt rated NAC outputs operate between 16.5 and 33 volts.
-
Panel compatibility: if the appliances are not UL 9th edition listed with the panel or power supply in use, refer to the panel compatibility listing to determine the maximum devices on a circuit.
-
Indoor use only, from a regulated DC or full-wave rectified unfiltered power supply.
Related models
-
P2RL-LF — the same wall low frequency sounder strobe in red.
-
PC2WL-LF — ceiling low frequency sounder strobe, white, using the ceiling candela set and measuring 6.8" diameter x 2.47" high.
-
HWL-LF — wall low frequency sounder, white, without a strobe; it adds a Coded rotary switch position.
-
P2WH-LF — the earlier SpectrAlert Advance model this unit directly replaces; it offers only the high candela settings 135, 150, 177 and 185 and has no Temporal 4.
-
MDL3W — Sync•Circuit synchronization module, white.
-
SBBWL — white wall surface mount back box.
Specifications taken from the System Sensor data sheet “Indoor Selectable-Output Low Frequency Sounders and Low Frequency Sounder Strobes,” document AVDS910-02 (11/02/2020). Manufacturer specifications are subject to change without notice.
