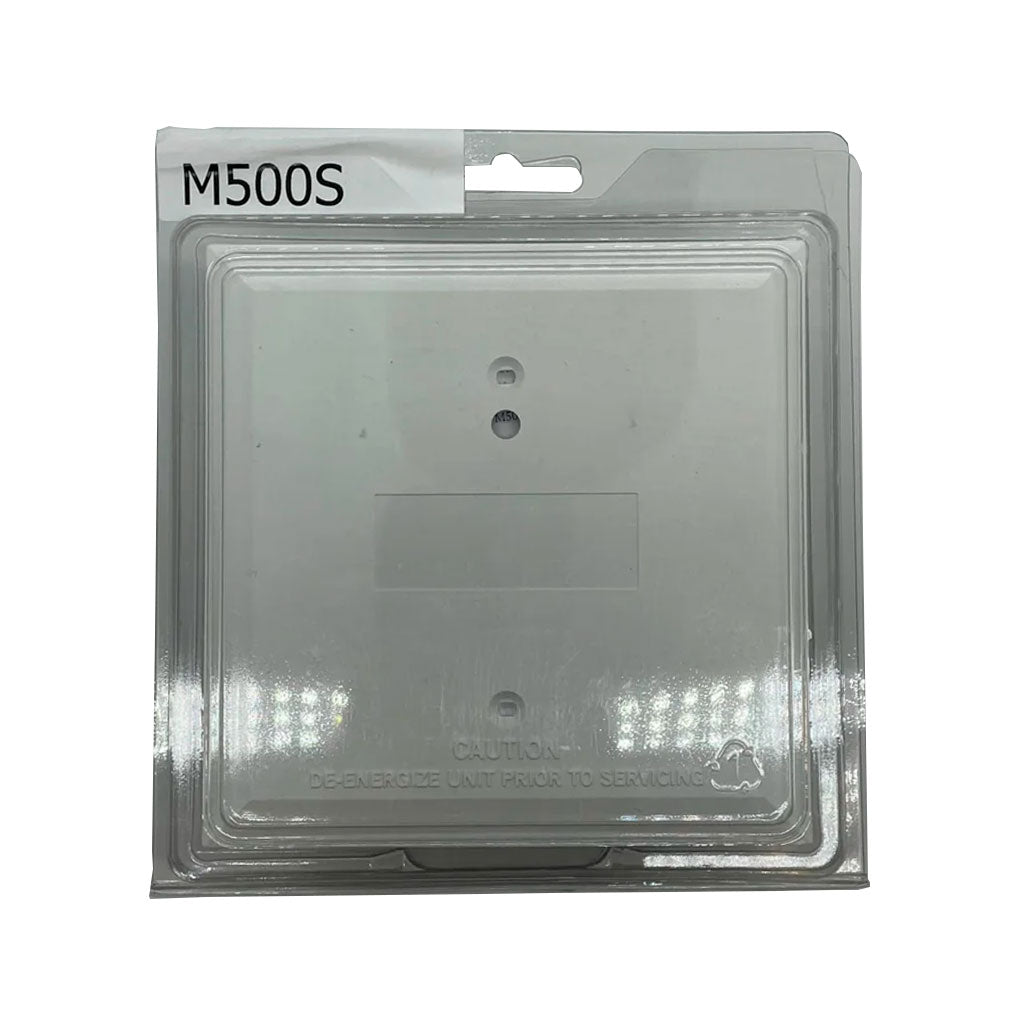

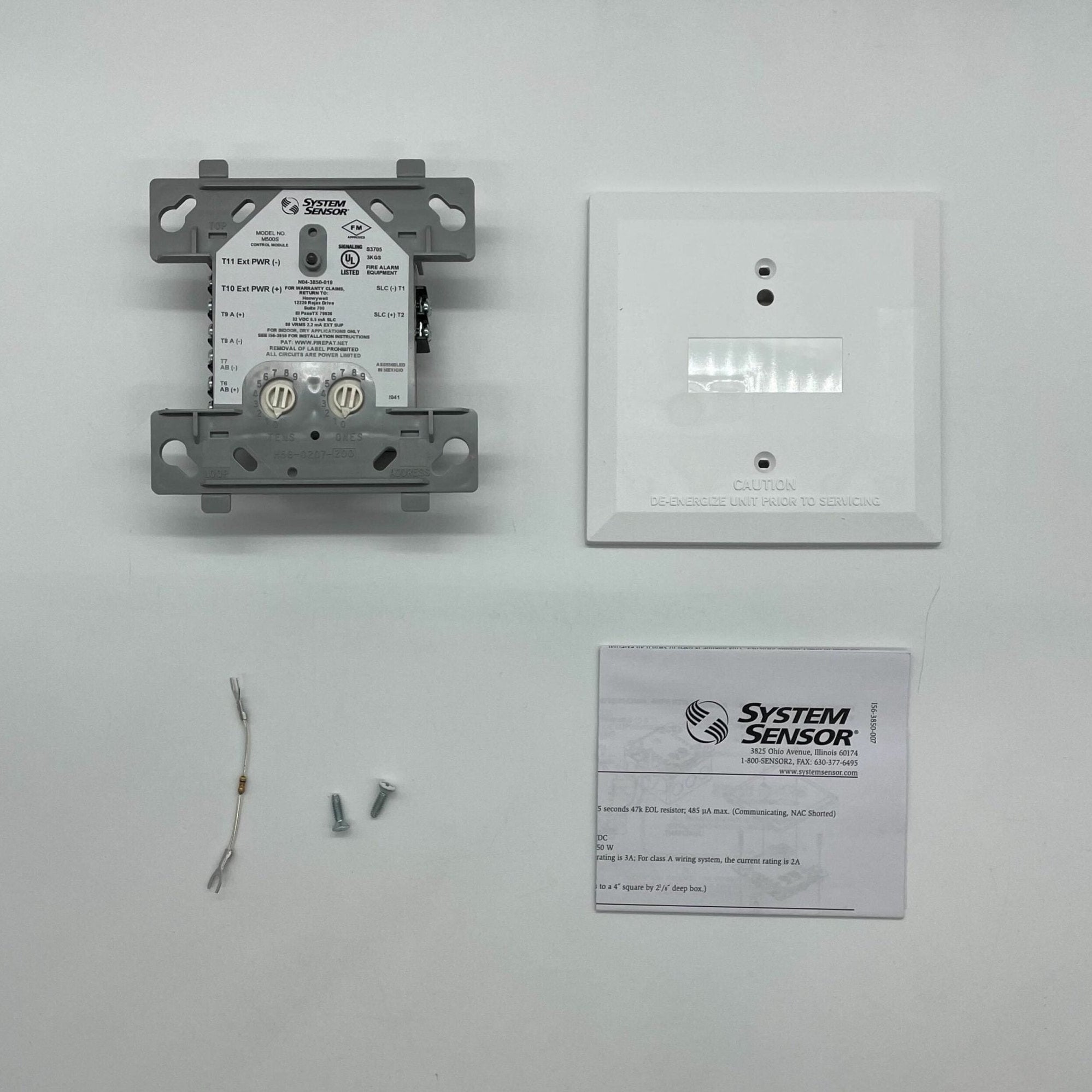

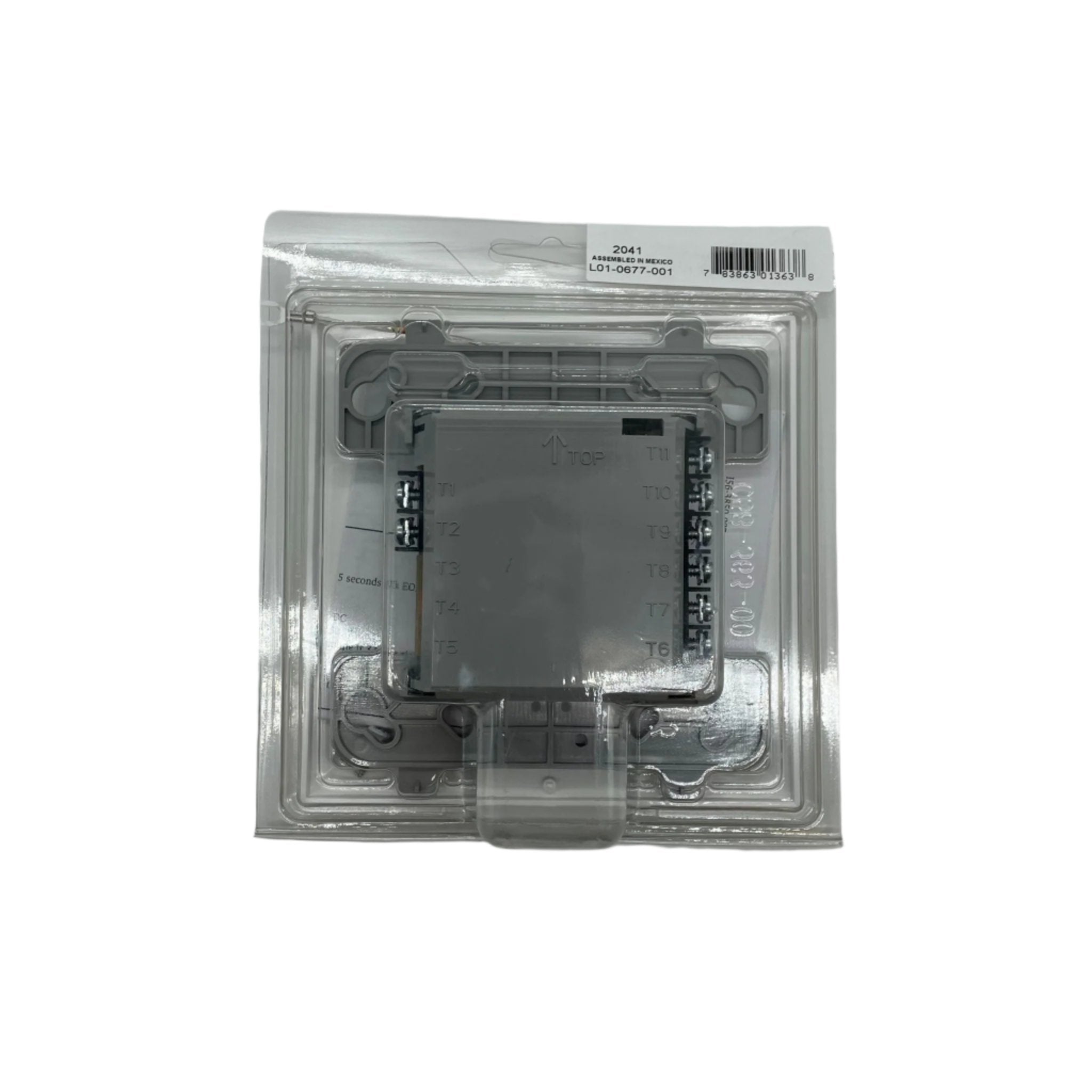

System Sensor M500S is a supervised control module for intelligent two-wire systems. It switches an external power supply, a DC supply or an audio amplifier up to 80 VRMS, to notification appliances such as horns, strobes, bells or speakers, and supervises that wiring, reporting normal, open or short circuit to the panel.
The address is set with built-in rotary switches. The module has two pairs of output terminals for fault-tolerant wiring and a panel-controlled LED, and it can replace an M500C module configured for supervised wiring. It must be connected to a compatible System Sensor control panel.
Specifications
| Operating voltage |
15–32 VDC |
| Current |
375 µA average (group poll); 6.5 mA max, LED on |
| NAC current |
3 A Class B; 2 A Class A |
| External supply |
Regulated 24 VDC (NAC) or 70.7 V RMS, 50 W (speakers) |
| Max NAC line loss |
4 VDC |
| Temperature |
32–120°F, 10–93% RH |
| Dimensions |
4.675 × 4.275 × 1.4 in. |
| Mounting |
4 in. square box, 2-1/8 in. deep |
Installation notes
- Use the CB500 barrier for non-power-limited applications to separate wiring per UL
- Remove and discard jumper J1 for audio applications or when power supply monitoring is not needed
- SMB500 surface boxes are available; the module can also mount in a DNR(W) duct housing
- Break wire runs at terminals to supervise connections
Related models
M500R is the relay module and M500M the monitor module in the same 500 Series.
