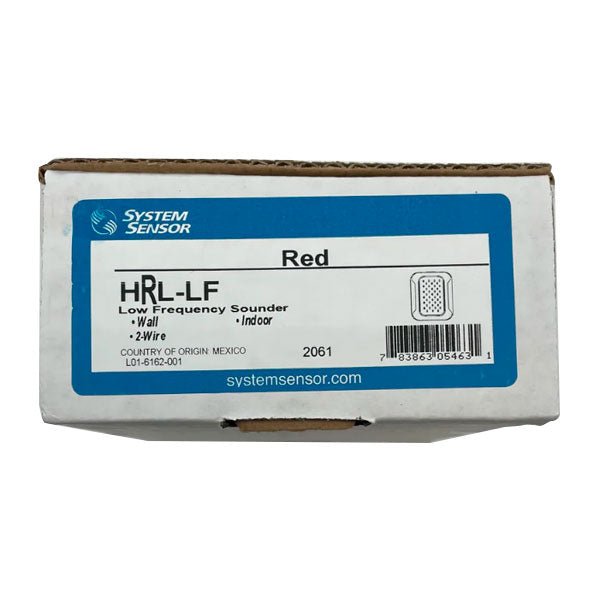

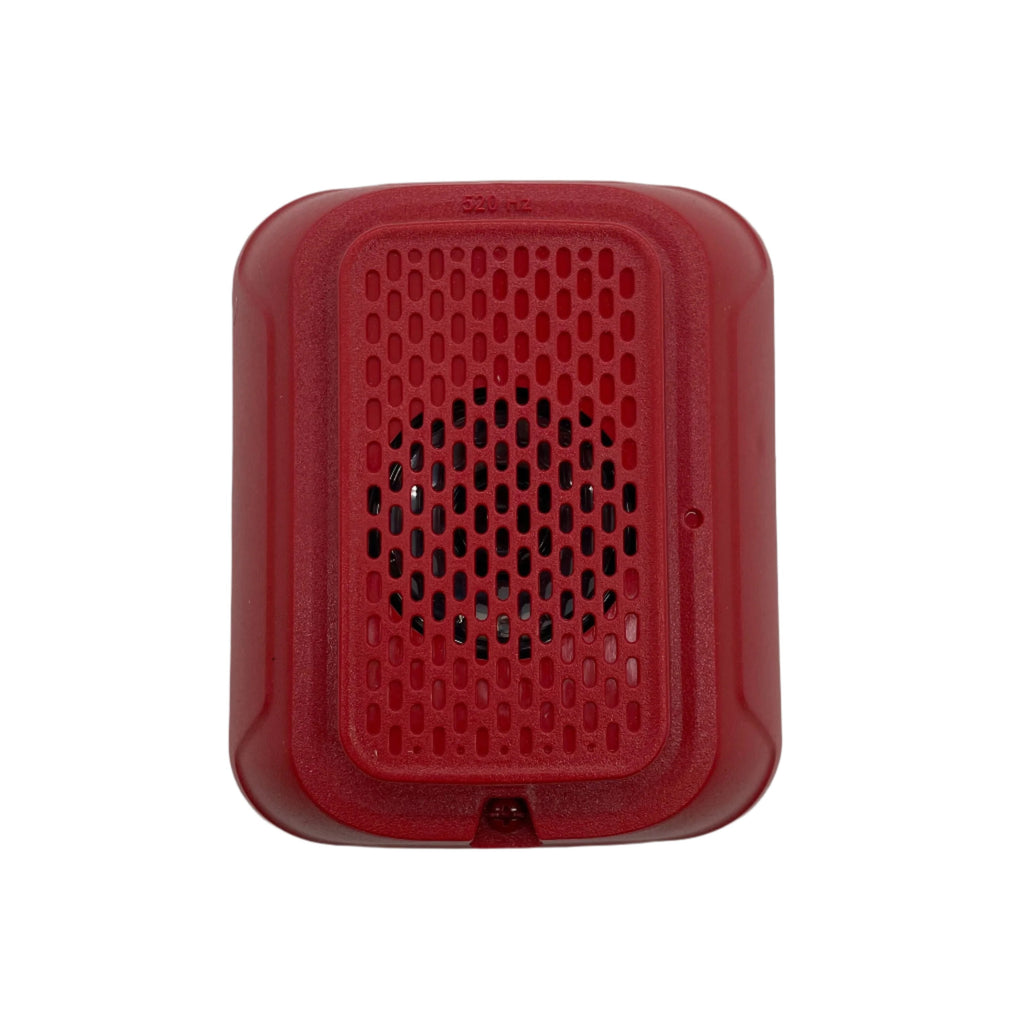

System Sensor HRL-LF — L-Series wall mount low frequency sounder, red, sounder only with no strobe.

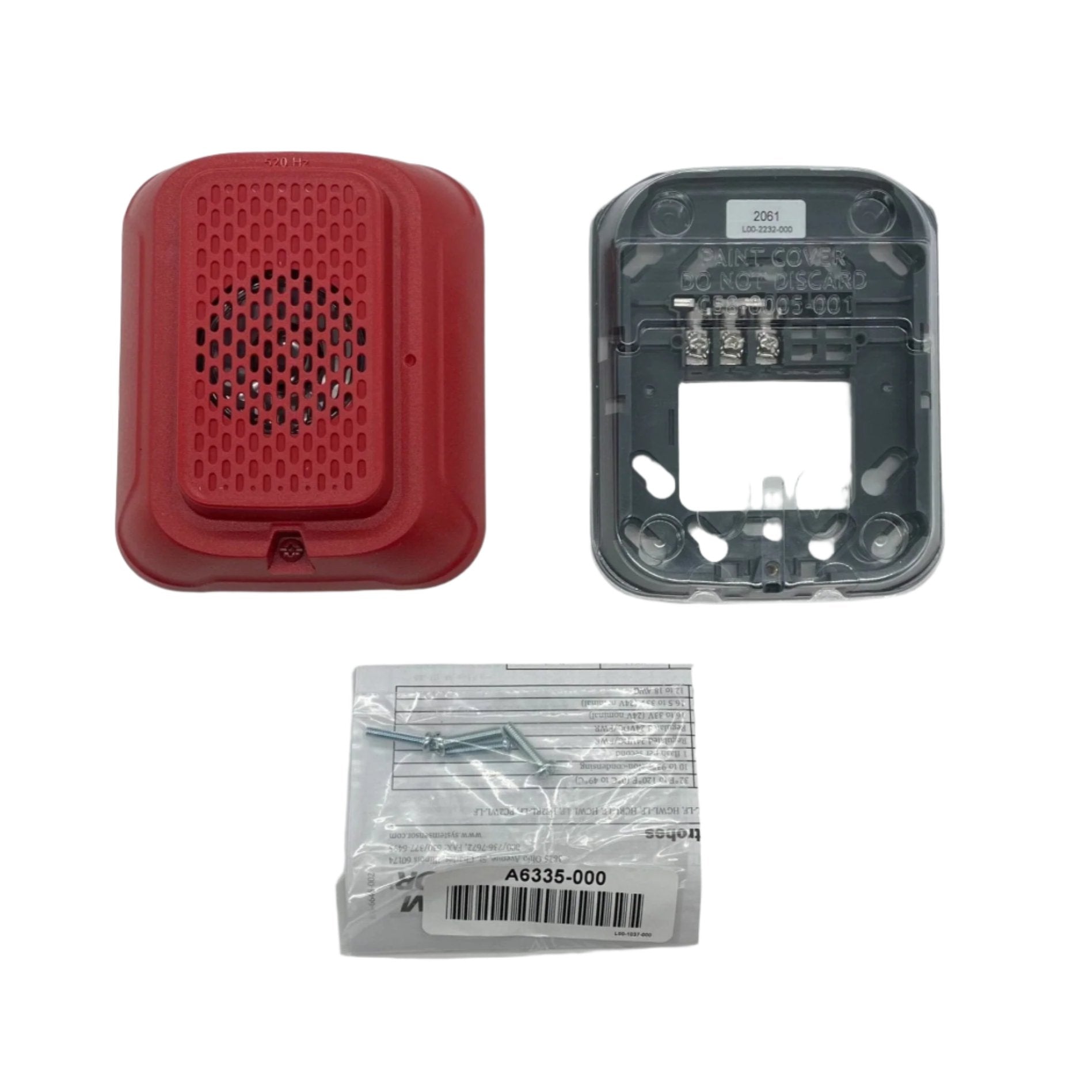

Produces a 520 Hz square wave, the low frequency signal NFPA 72 requires for sleeping spaces because it rouses sleepers more reliably than a 3 kHz tone. A rotary switch selects tone and volume, and the plug-in mounting plate lets wiring continuity be checked before the device is fitted.
- 520 Hz plus or minus 10 percent square wave; certified to UL 464
- 80 dBA high, 76 dBA low (UL reverberant); 82 and 78 ULC anechoic

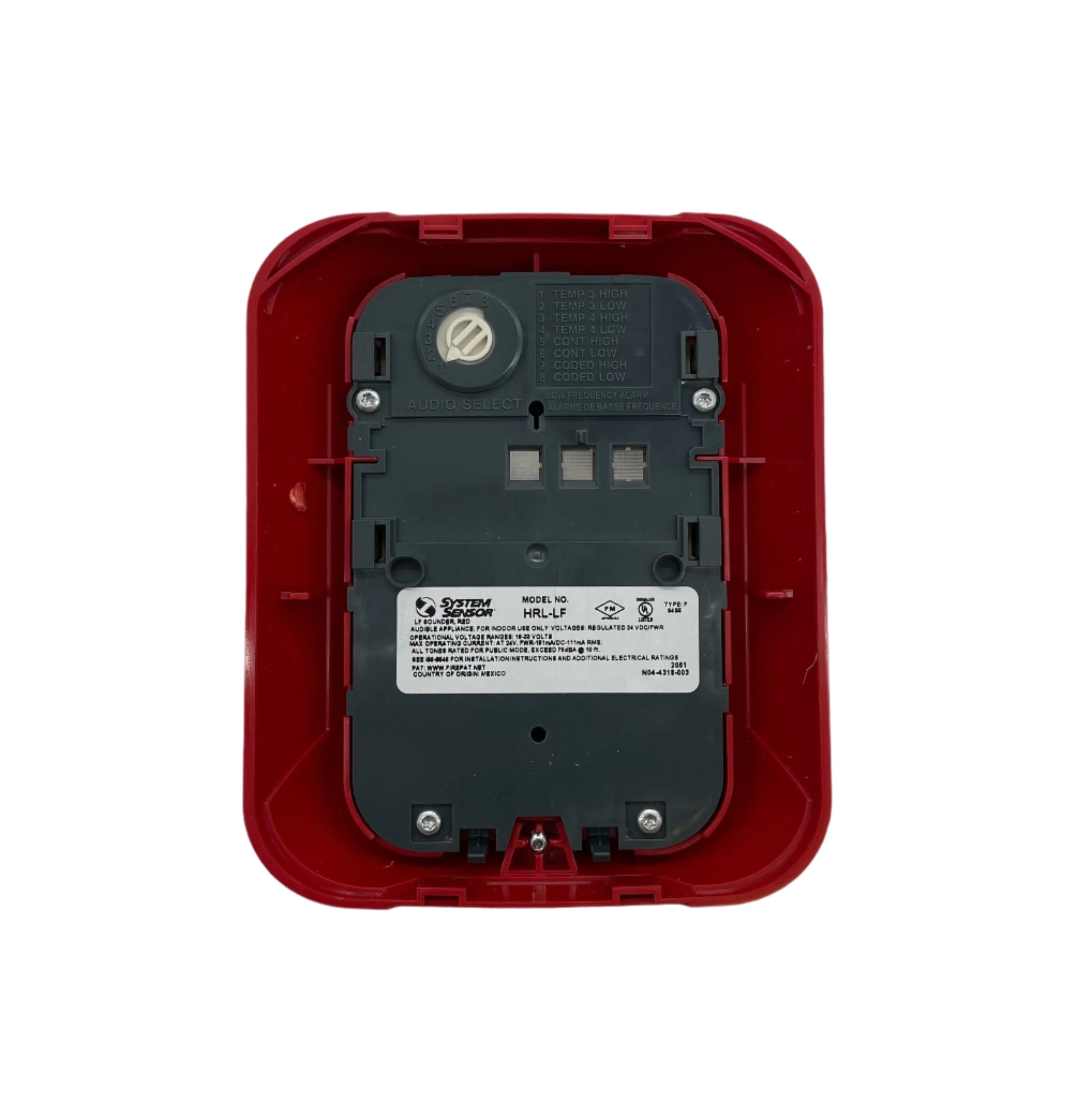

- Eight rotary positions: Temporal 3, Temporal 4, Continuous, Coded, high or low
- 16 to 33 V, nominal 24 V regulated DC or full wave rectified
- 108 mA DC or 150 mA FWR at Temporal 3 high; 78 mA DC at low
- 5.6 in. L x 4.7 in. W x 1.5 in. D; 12 to 18 AWG; 32 to 120 °F (0 to 49 °C)
System Sensor states the L-Series low frequency line directly replaces the legacy SpectrAlert HW/R-LF and P2R/WH-LF. Within the current line: HWL-LF is the same wall sounder in white, HCRL-LF the ceiling version, HGRL-LF the compact wall version, and P2RL-LF adds a strobe this model does not have.
Documents
FAQ
Why use a low frequency sounder?
It produces a 520 Hz square wave tone, designed to meet the NFPA 72 low frequency requirement for sleeping spaces.
Does it work with older SpectrAlert devices?
Yes. System Sensor states it is electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices and is a direct replacement for the HW/R-LF.
What power does it need?
Nominal 24 V, regulated DC or full-wave rectified, from a notification appliance circuit.
Can it be surface mounted?
Yes. The standard wall sounder fits the SBBRL/SBBWL surface mount back box.
