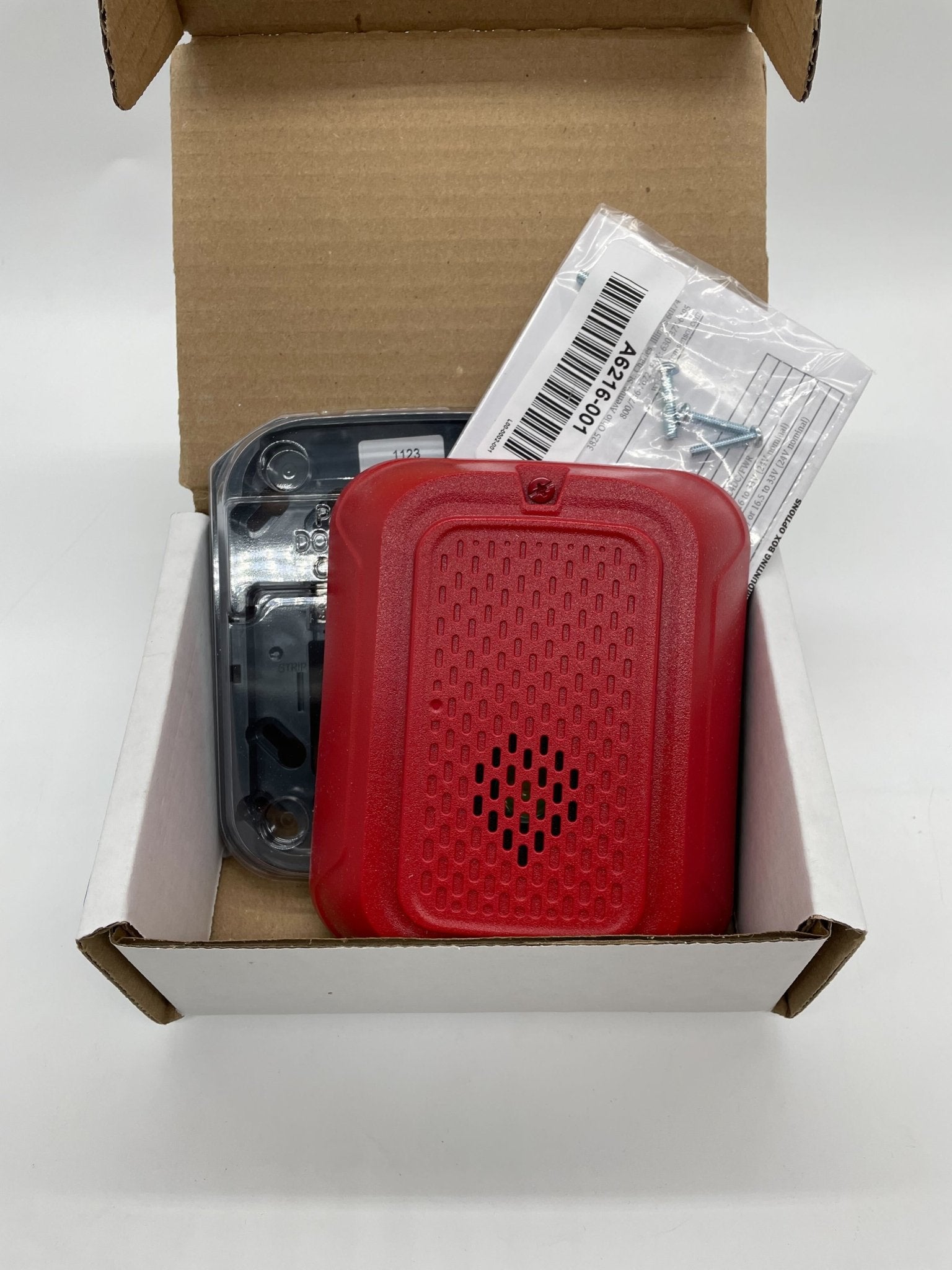

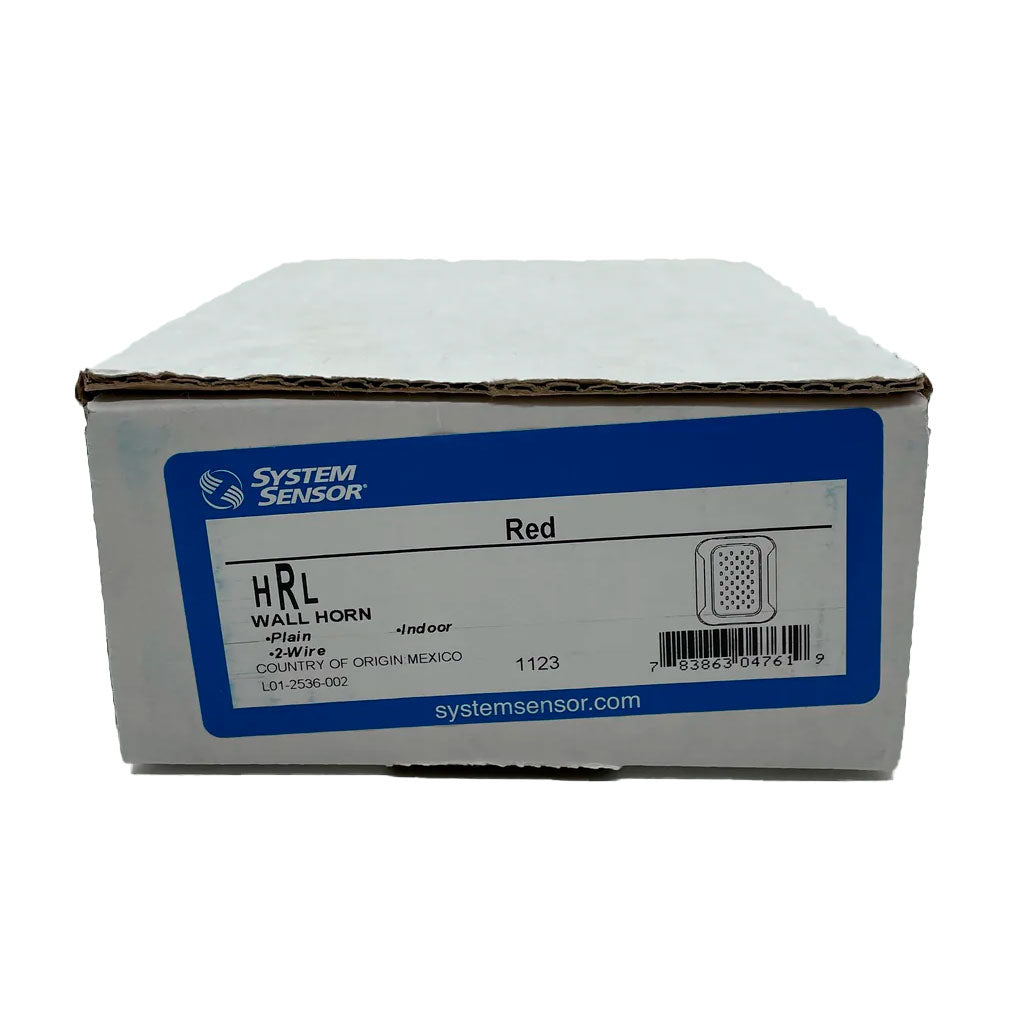

System Sensor HRL — L-Series indoor selectable-output horn, red, listed for wall or ceiling mounting, with ten field-selectable tone and volume combinations.
HRL is audible only. There is no strobe in it and no candela setting, which is why System Sensor files the horns in their own ordering block and why no LED version of this part exists: the LED refresh changed the light source, and a horn has none. A rotary switch on the back selects the tone.
- Ten positions: Temporal, Non-Temporal, 3.1 kHz Temporal and 3.1 kHz Non-Temporal at high or low, plus Coded and 3.1 kHz Coded at high
- 82 to 90 dBA at 16 to 33 VDC, 90 on Non-Temporal high and 89 on Temporal high
- 29 to 47 mA at 16 to 33 VDC, 54 mA on FWR; 28 to 43 mA at 8 to 17.5 VDC
- Regulated 12 VDC or regulated 24 V DC or FWR; ANSI/UL 464 certified, public mode

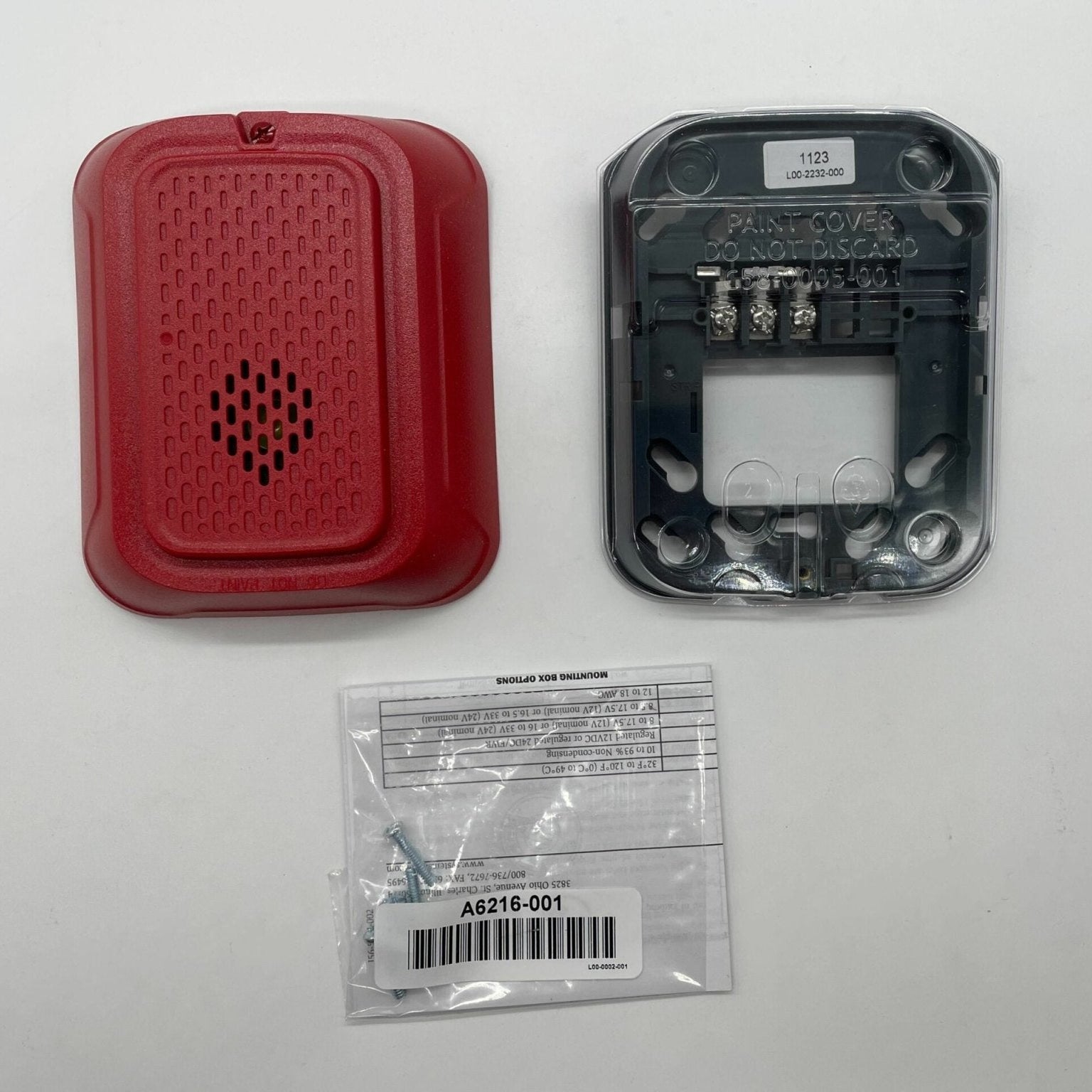

- 5.6 × 4.7 × 1.25 in.; 32 to 120 °F; 12 to 18 AWG; fits a 4 in. square, single-gang, double-gang or octagon box, or the SBBRL surface box
HWL is the same horn in white, HGRL the compact red version taking the smaller SBBGRL box, and HRLA the plain-housing ULC model. CHRL shares the housing and is a chime, a private mode appliance. P2RLED is the horn strobe on this platform.
