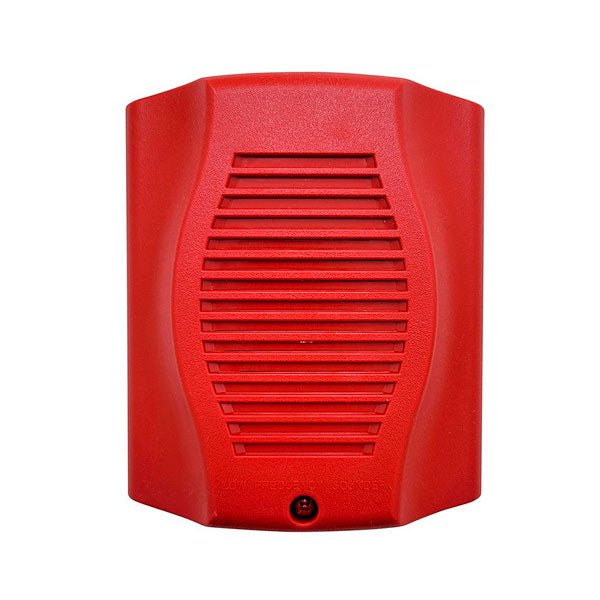

System Sensor HR-LF is a red, two-wire low frequency sounder from the SpectrAlert Advance line. It produces a 520 Hz square wave tone, the signal NFPA 72 calls for in sleeping areas, and it can be mounted on a wall or a ceiling.
It runs on a regulated 12 or 24 volt supply and has a rotary switch for the tone pattern. It is a sounder only and has no strobe.
Features
- 520 Hz (±10%) square wave tone
- Rotary switch: Temporal 3, continuous or coded
- Operates on regulated 12 or 24 VDC/FWR

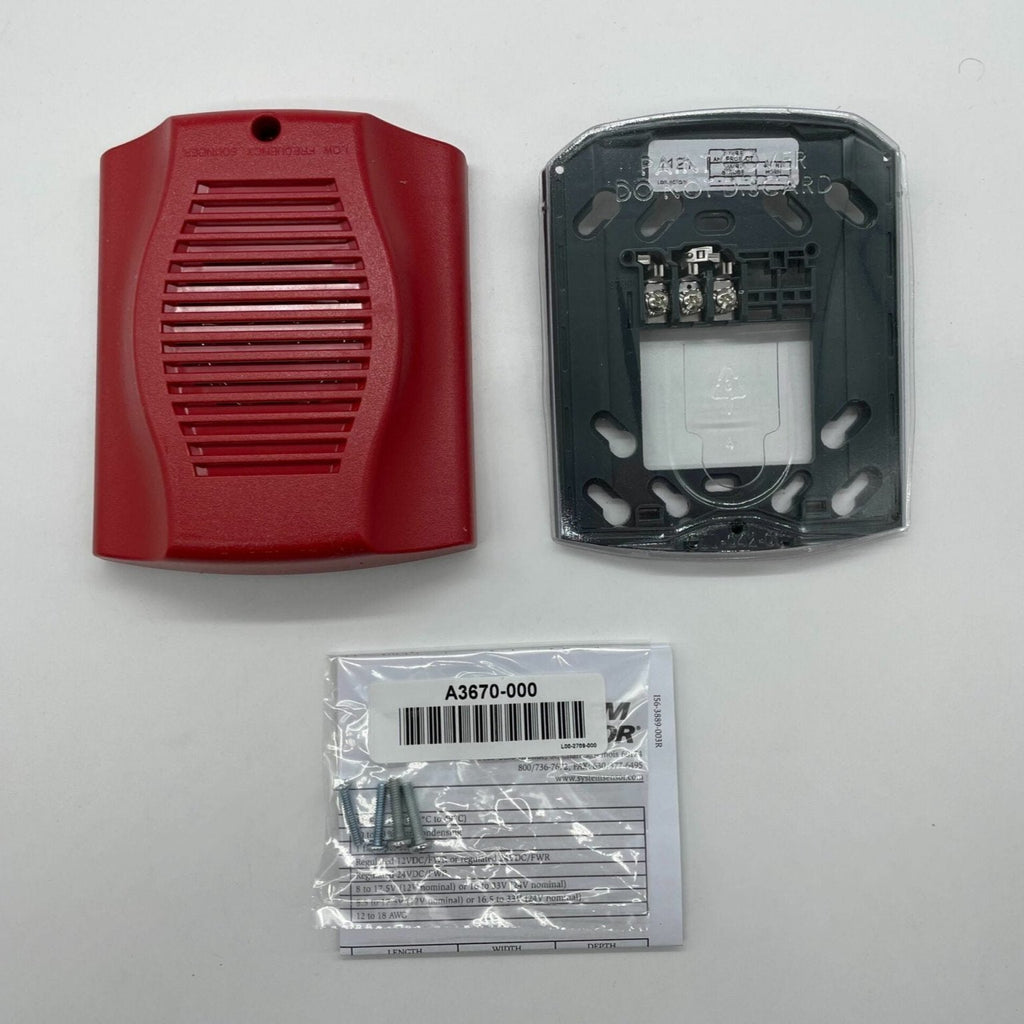

- Plug-in design with minimal intrusion into the back box; shorting spring checks wiring continuity
- Compatible with the MDL3 sync module, which synchronizes the sounder at temporal three
- Electrically compatible with legacy SpectrAlert devices
- Listed for ceiling or wall mounting; UL 464
Specifications
| Color |
Red |
| Voltage range |
8 to 17.5 V (12 V nominal) or 16 to 33 V (24 V nominal) |
| Maximum current, 16 to 33 VDC |
138 to 153 mA RMS depending on setting |
| Dimensions |
5.6 in. L x 4.7 in. W x 1.3 in. D (142 x 119 x 33 mm) |
| Operating temperature |
32 to 120 °F (0 to 49 °C) |
| Humidity |
10 to 93%, non-condensing |
| Mounts to |
4 x 4 x 1-1/2 in. box, 4 in. octagon or double-gang box |
