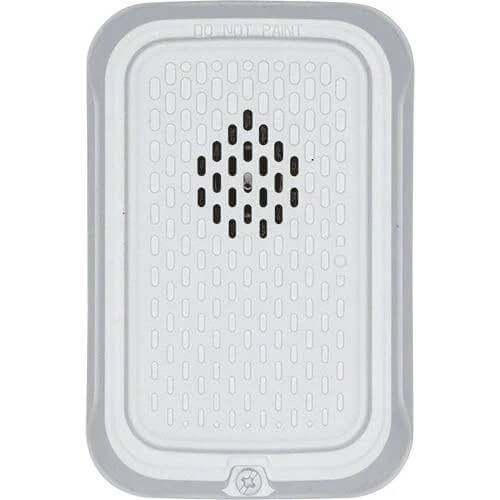

System Sensor HGWL — L-Series compact wall-mount fire alarm horn, white housing, audible only with no strobe.
HGWL is the compact-footprint member of the L-Series selectable-output horn family, seating on a single-gang back box rather than the larger box a standard L-Series horn requires. A rear rotary switch selects ten tone and volume combinations including ANSI temporal three, and the compact mounting plate carries a shorting spring so the notification appliance circuit can be continuity-checked before the horn is plugged on.
- Certified to ANSI/UL 464; public-mode audible notification appliance
- 12 VDC nominal or regulated 24 VDC/FWR; 8–17.5 V or 16–33 V operating range
- Temporal, high volume: 89 dBA at 44 mA on 16–33 V DC (54 mA FWR); 84 dBA at 39 mA on 8–17.5 V
- 5.25" L × 3.45" W × 1.25" D; single-gang box or SBBGWL compact surface back box
- 32°F to 120°F, 10–93% RH non-condensing; 12–18 AWG terminals
Check the suffix: HGRL is the same compact horn in red, HWL the standard-size white horn needing a larger box, and P2GWL the compact white horn strobe. SBBRL/SBBWL surface boxes fit standard horns only.
