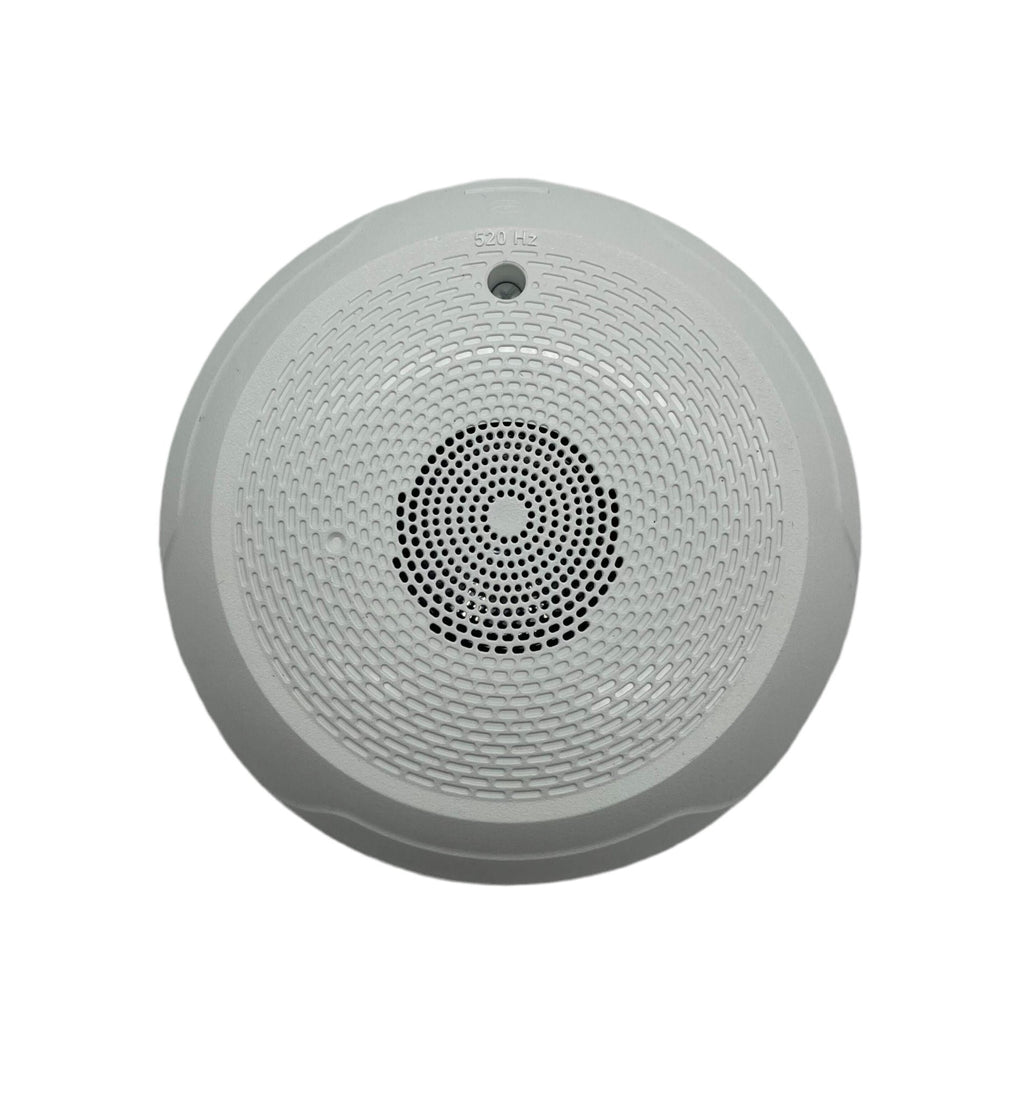

System Sensor HCWL-LF — L-Series low frequency sounder, ceiling mount, white. A sounder only: it carries no strobe.

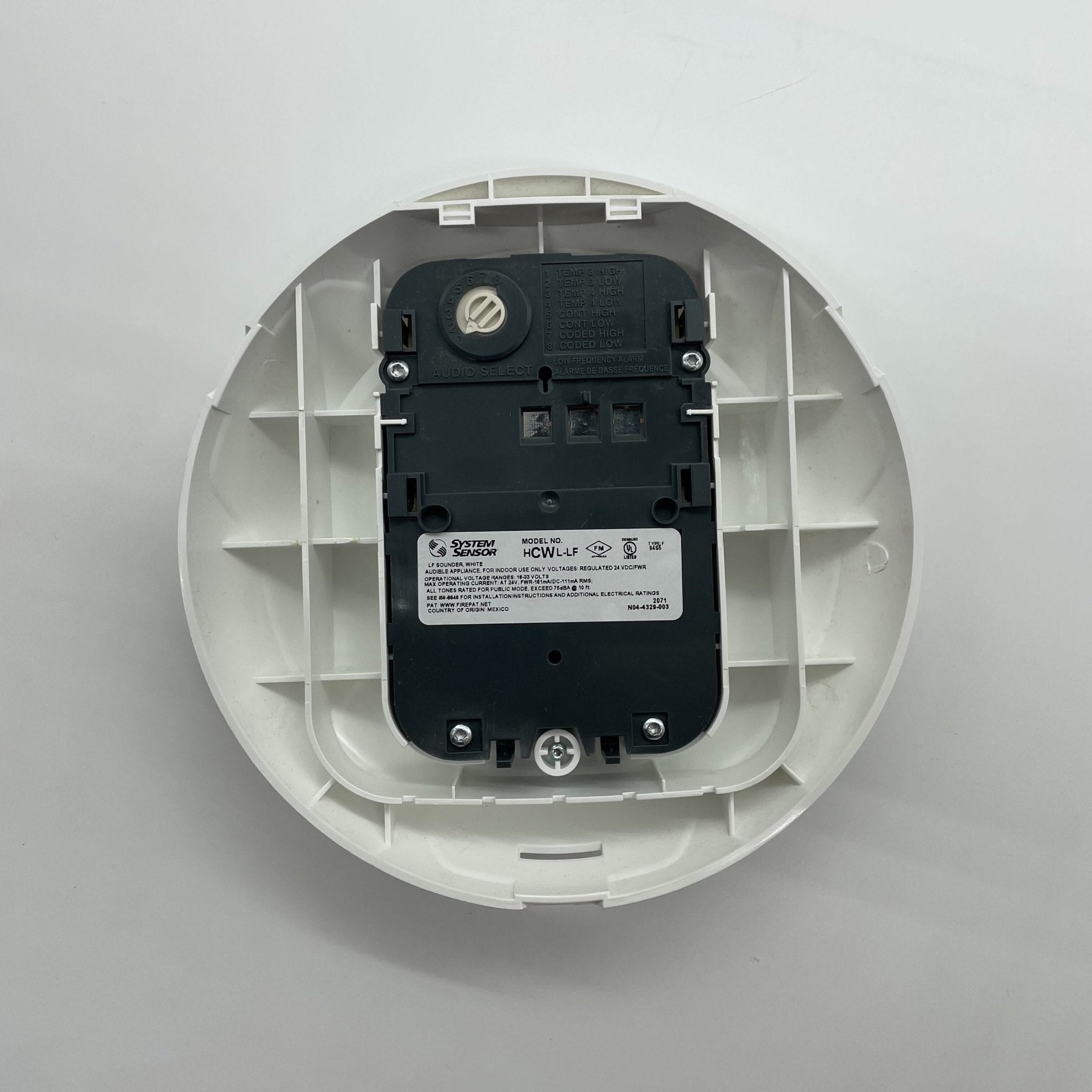

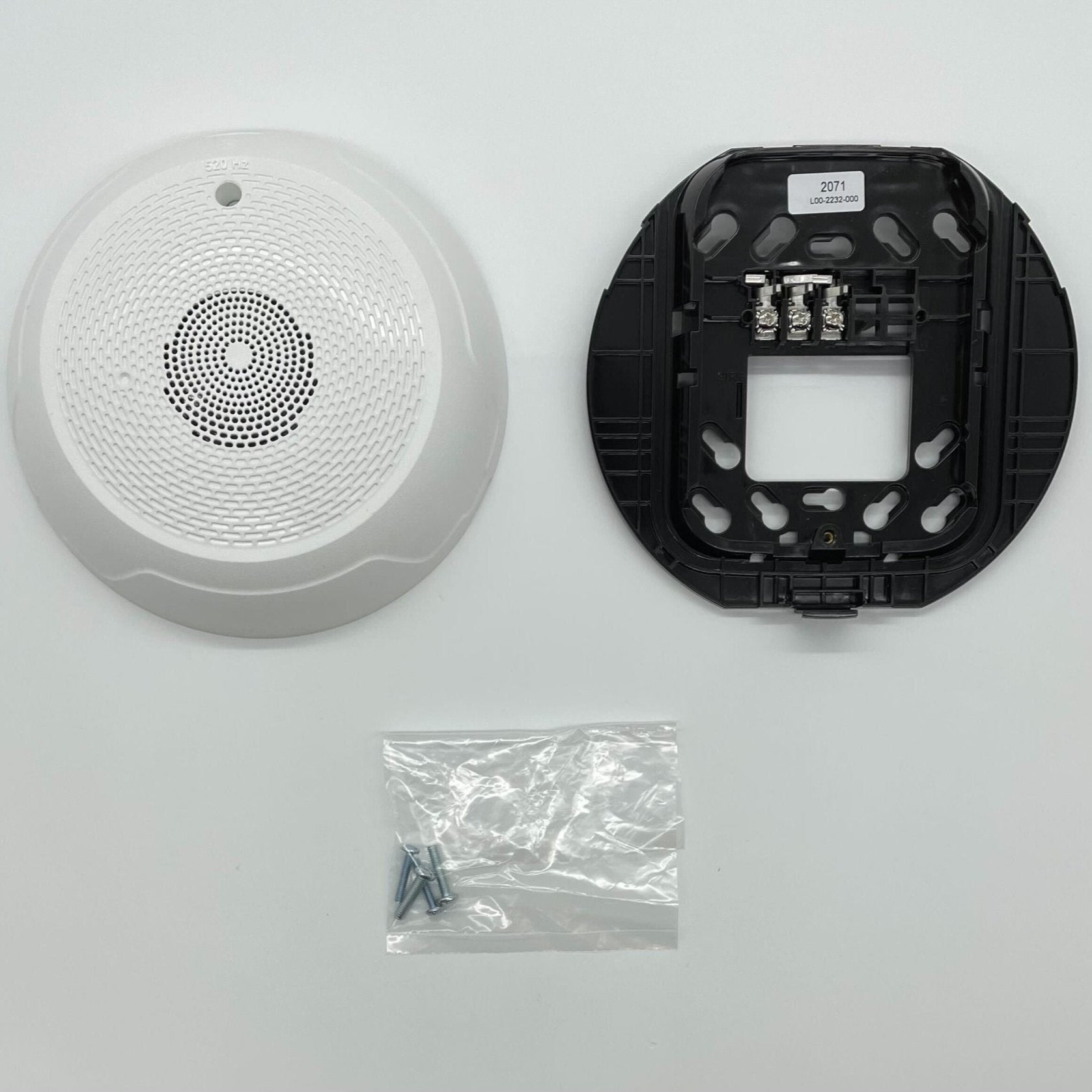

NFPA 72 requires audible appliances in sleeping areas to produce a low frequency square wave near 520 Hz, which wakes sleepers more reliably than a horn. It plugs onto a universal mounting plate whose shorting spring proves the circuit before fitting.
- 520 Hz square wave within 10 percent, marked on the housing.
- Rotary switch selects Temporal 3, Temporal 4, Continuous or Coded at high or low volume; Coded is sounder-only and supports two stage operation.
- 80 dBA high and 76 dBA low UL reverberant, 82 and 78 dBA ULC anechoic; 108 mA DC and 150 mA FWR on Temporal 3 high, 111 and 151 mA on other high settings, 78 to 80 mA DC and 76 mA FWR on low.
- 16 to 33 V; terminals 12 to 18 AWG; 6.83 in. diameter × 1.4 in. deep.
- Certified to UL 464; sounder-only models are approved for wall as well as ceiling.
With no strobe it has no candela rating: 15, 30, 75, 95, 110, 135 and 185 cd belong to the wall sounder strobes and 15, 30, 75, 95, 115, 150 and 177 cd to ceiling strobes like PC2WL-LF.
