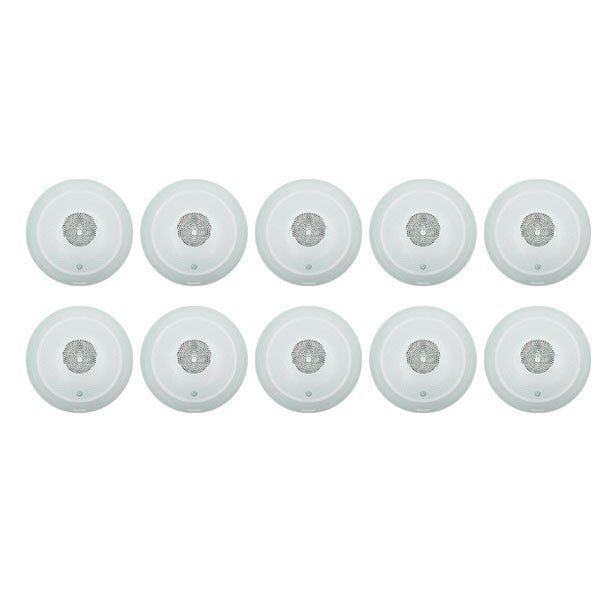

System Sensor HCWL-LF-BP10 is a bulk pack of ten HCWL-LF L-Series indoor low frequency sounders: two-wire, ceiling mount, white, with no marking. They are designed for the NFPA 72 sleeping space requirement for a 520 Hz ±10% square wave tone.
Each sounder plugs onto a universal mounting plate with an onboard shorting spring, so wiring continuity can be tested before the device is installed. A rotary switch selects High or Low output and Temporal 3, Temporal 4, Continuous or Coded patterns. The housing carries a permanent “520 Hz” marking.
Specifications
| Tone |
520 Hz ±10% square wave |
| Patterns |
Temp3, Temp4, Continuous, Coded; High/Low |
| Voltage |
Nominal 12 or 24 V; 16.5–33 V on 24 V NACs |
| Mounting |
Ceiling; 4 × 4 × 1-1/2 in., 4 in. octagon, double-gang or single-gang 2 × 4 × 1-7/8 in. box |
| Environment |
Indoor, 32–120°F |
| Standards |
UL 464; CSFM 7135-1653:0516 |
| Pack |
10 × HCWL-LF |
Installation notes
- Terminate NAC wiring on the universal mounting plate, then plug the sounder on
- Use the MDL3 sync module when synchronization is needed
- Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices
Related models
HCWL-LF is the single unit; HCRL-LF is the red version and HWL-LF the wall model.
