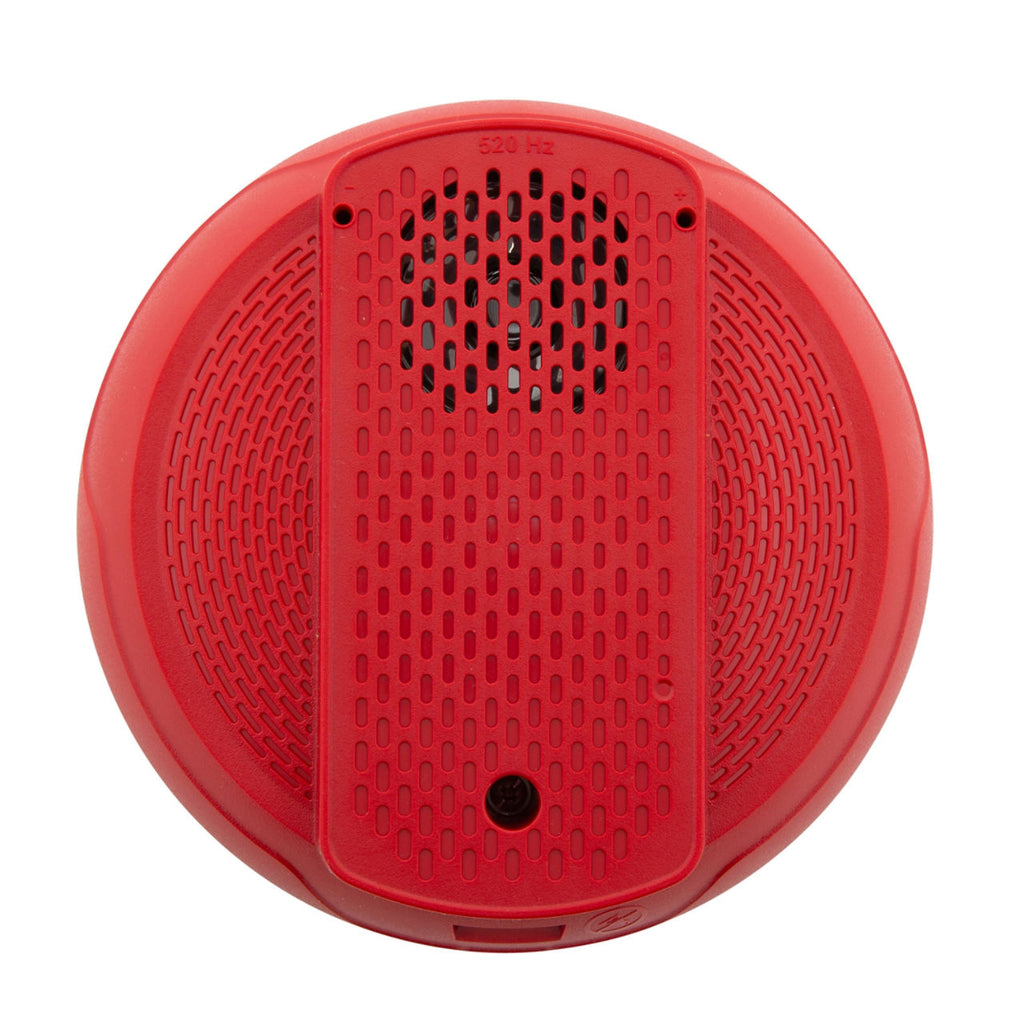

System Sensor HCRL2-LF is an L-Series 2nd generation low frequency sounder for ceiling mounting, in red with plain (unmarked) housing.
It produces a 520 Hz square wave tone, the type of signal the product data ties to NFPA 72 requirements for sleeping spaces. The sounder-only version has no strobe, so the tone and volume are the settings an installer works with.
Features
- 520 Hz, 10% square wave tone for low frequency notification
- High and low tone options to balance current draw against the application
- Rotary switch for tone and volume selection
- Coded setting available on sounder-only models
- Digital Voltage Meter (DVM) diagnostic test points
- Plug-in mounting plate for easier installation
- Shorting springs to check wiring continuity
Specifications
| Mounting |
Ceiling |
| Color |
Red |
| Marking |
Plain |
| Tone |
520 Hz, 10% square wave |
| Series |
L-Series, 2nd generation |
