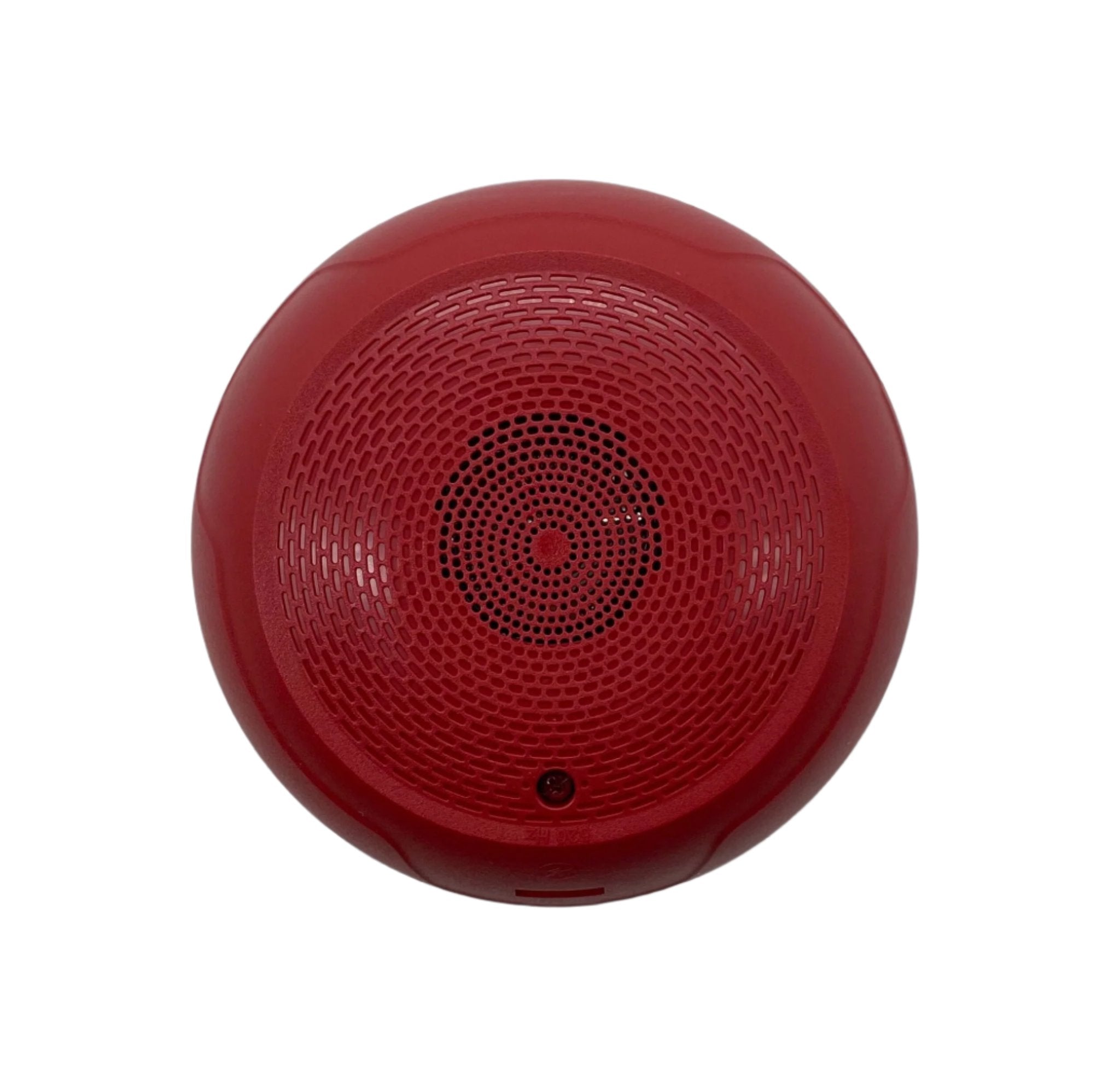

System Sensor HCRL-LF — L-Series low frequency sounder, ceiling mount, red, UL certified.
NFPA 72 requires an audible appliance in a sleeping space to produce a 520 Hz square wave signal, and the L-Series low frequency line exists for that. This model is a sounder only: no strobe and no candela setting. A rotary switch picks tone and volume, and sounder-only models carry a Coded position the sounder strobes lack, which lets them support two-stage operation.
- 520 Hz square wave tone within 10%, permanently marked on the housing

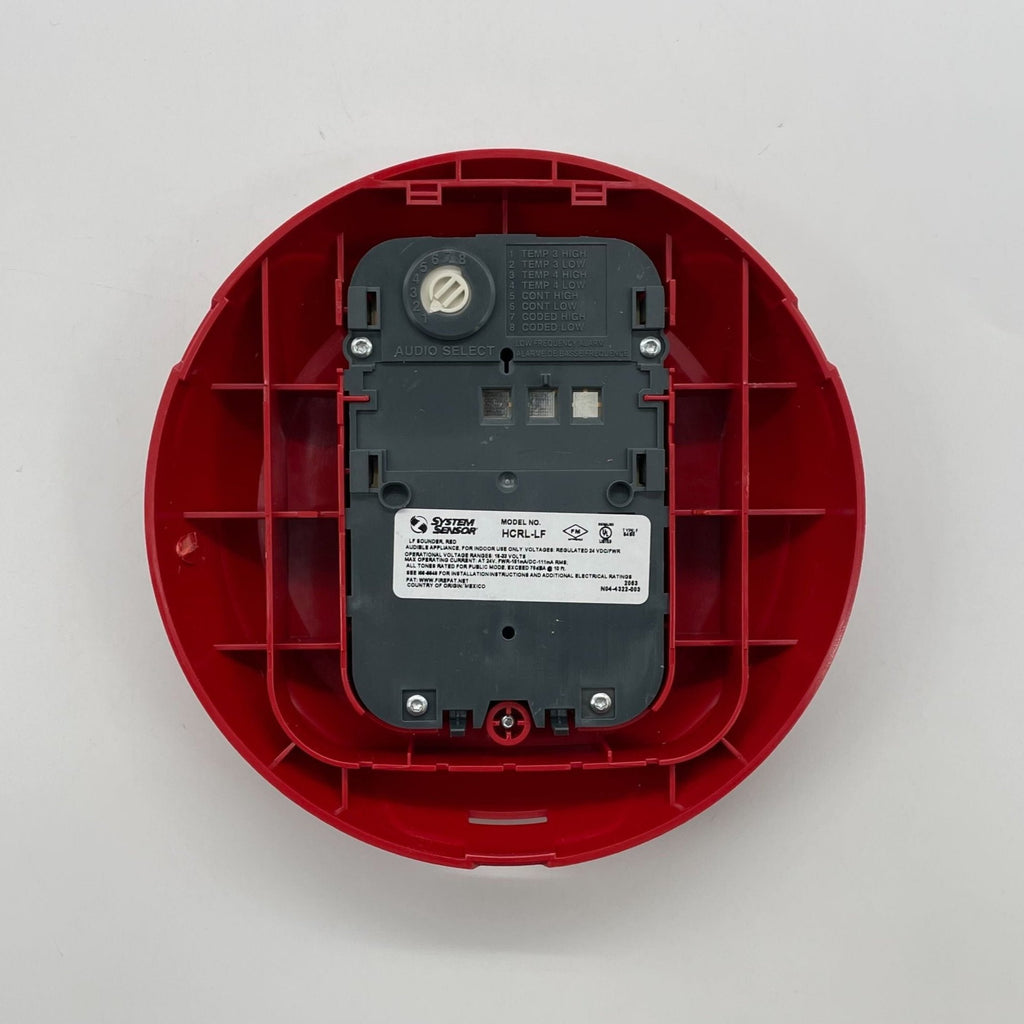

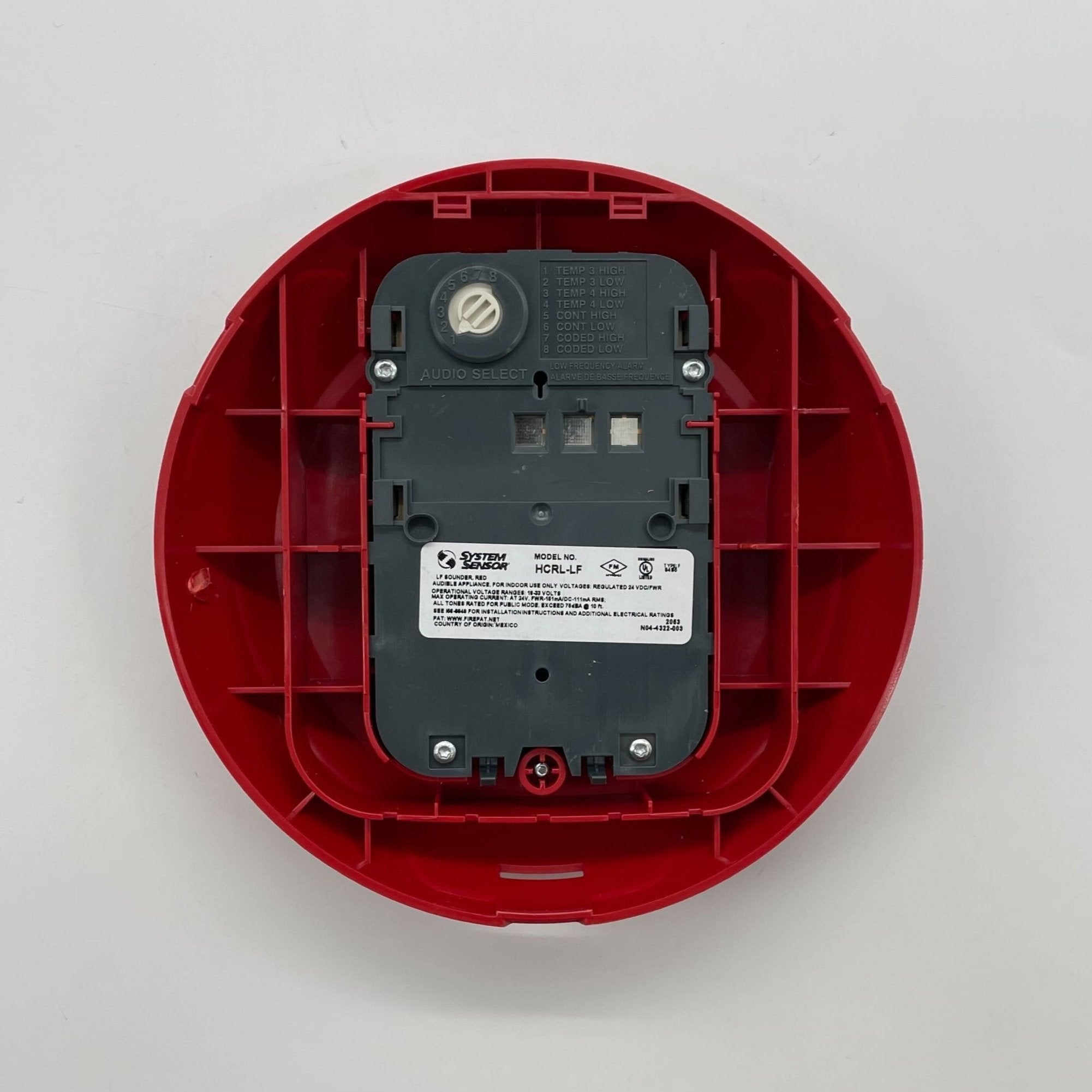

- Eight positions: Temporal 3, Temporal 4, Continuous and Coded, at High or Low volume

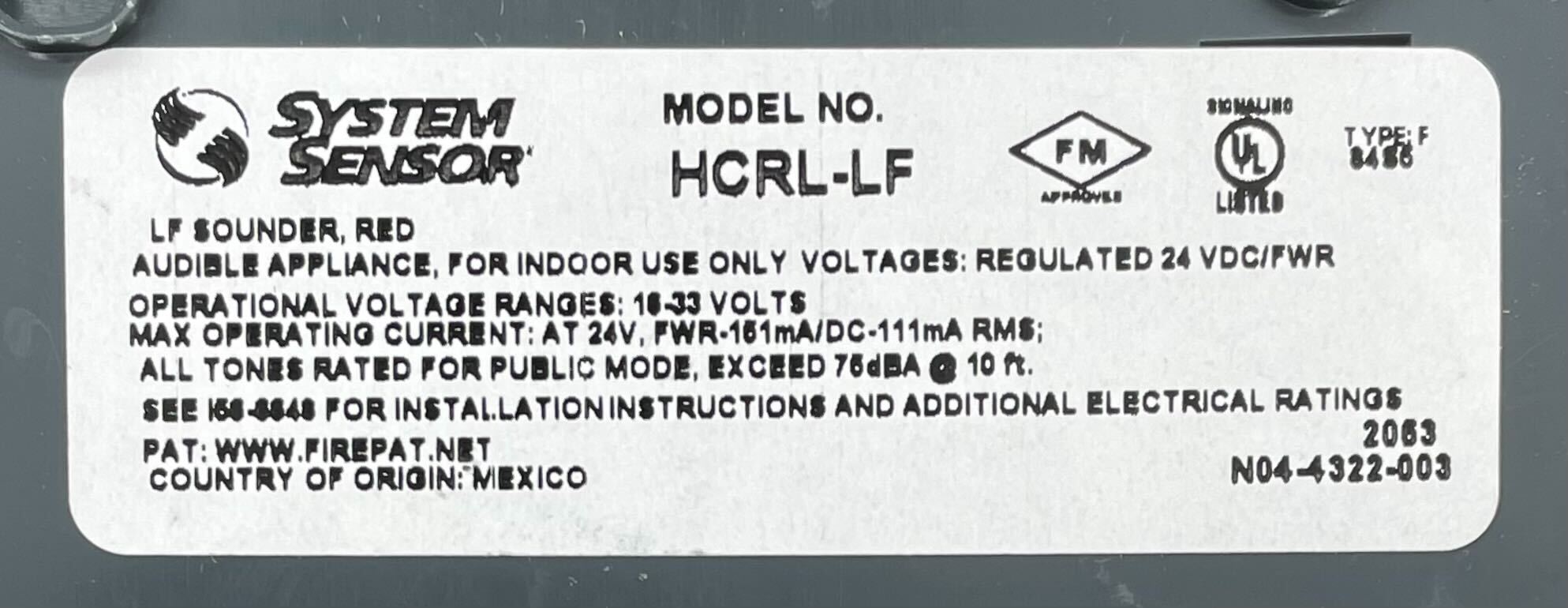

- 80 dBA reverberant at High, 76 dBA at Low; maximum 111 mA on DC or 151 mA on FWR
- Regulated 24 V nominal over 16 to 33 V; terminals take 12 to 18 AWG
- 6.8 in. diameter × 1.4 in. high, or 6.9 × 3.9 in. with the SBBCRL back box
- Certified to UL 464; 32°F to 120°F, 10 to 93% non-condensing
HCWL-LF is this sounder in white and HCRLA-LF the ULC-certified red one. HRL-LF is the wall version; PC2RL-LF is the ceiling sounder strobe, adding candela but losing the Coded position.
