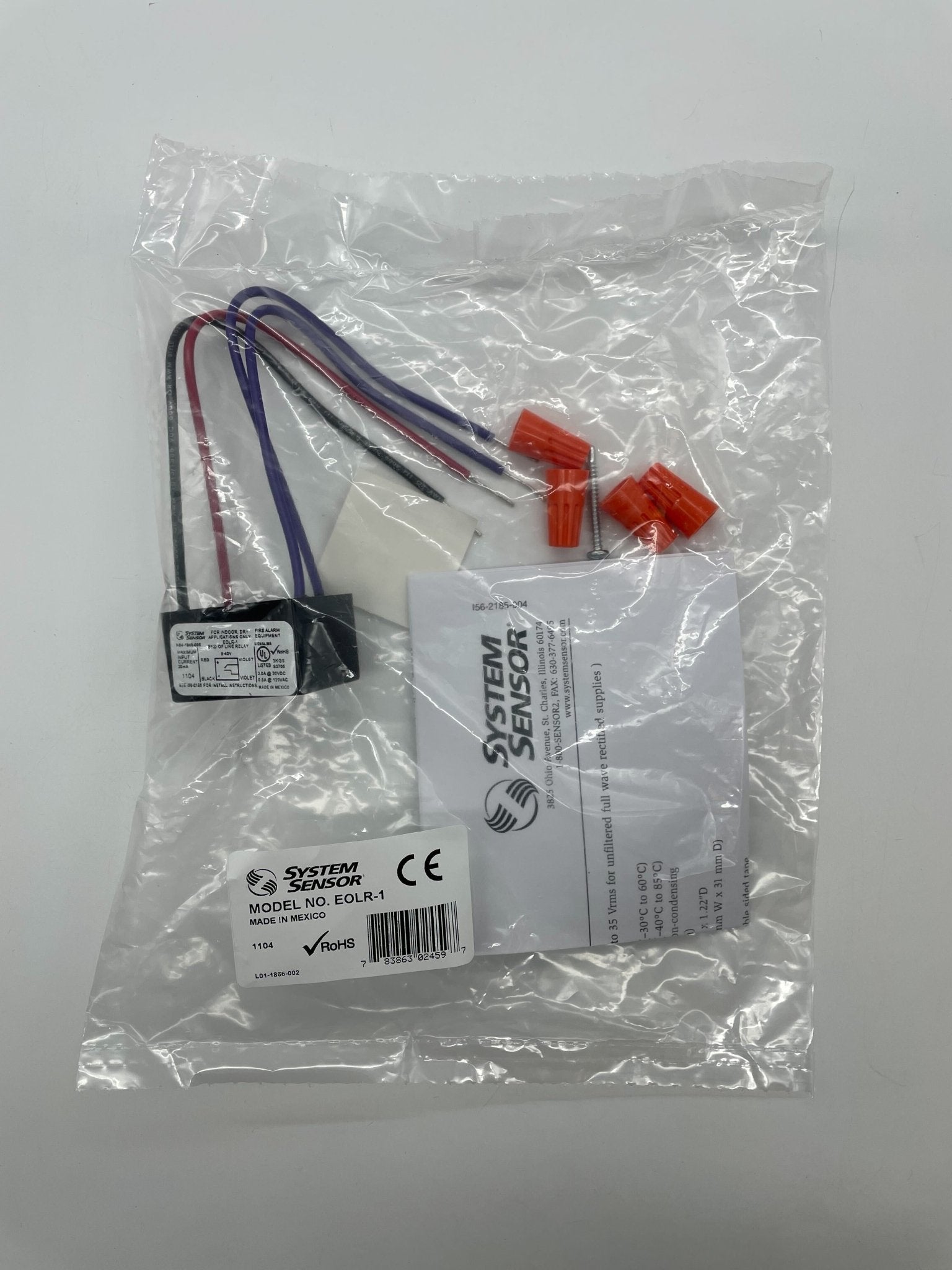

System Sensor EOLR-1 — epoxy-encapsulated SPST normally open end-of-line supervision relay.
Despite the end-of-line name this is an active relay, not a passive resistor. Its coil is held energised by the supply it watches, so losing that supply drops the contacts. That lets a fire alarm system supervise a power supply or auxiliary circuit and report its loss, which a terminating resistor cannot do.
- Single pole single throw normally open contacts
- Operating voltage 9 to 40 VDC, or 9 to 35 Vrms on unfiltered full-wave-rectified supplies
- Operating current 20 mA maximum
- Contact ratings 120 VAC at 0.5 A and 30 VDC at 3 A, resistive load
- –22°F to 140°F (–30°C to 60°C), 10 to 93 percent RH non-condensing
- 0.91" H × 1.65" W × 1.22" D; leads 8" minimum, red and black power in, two violet for relay common and normally open

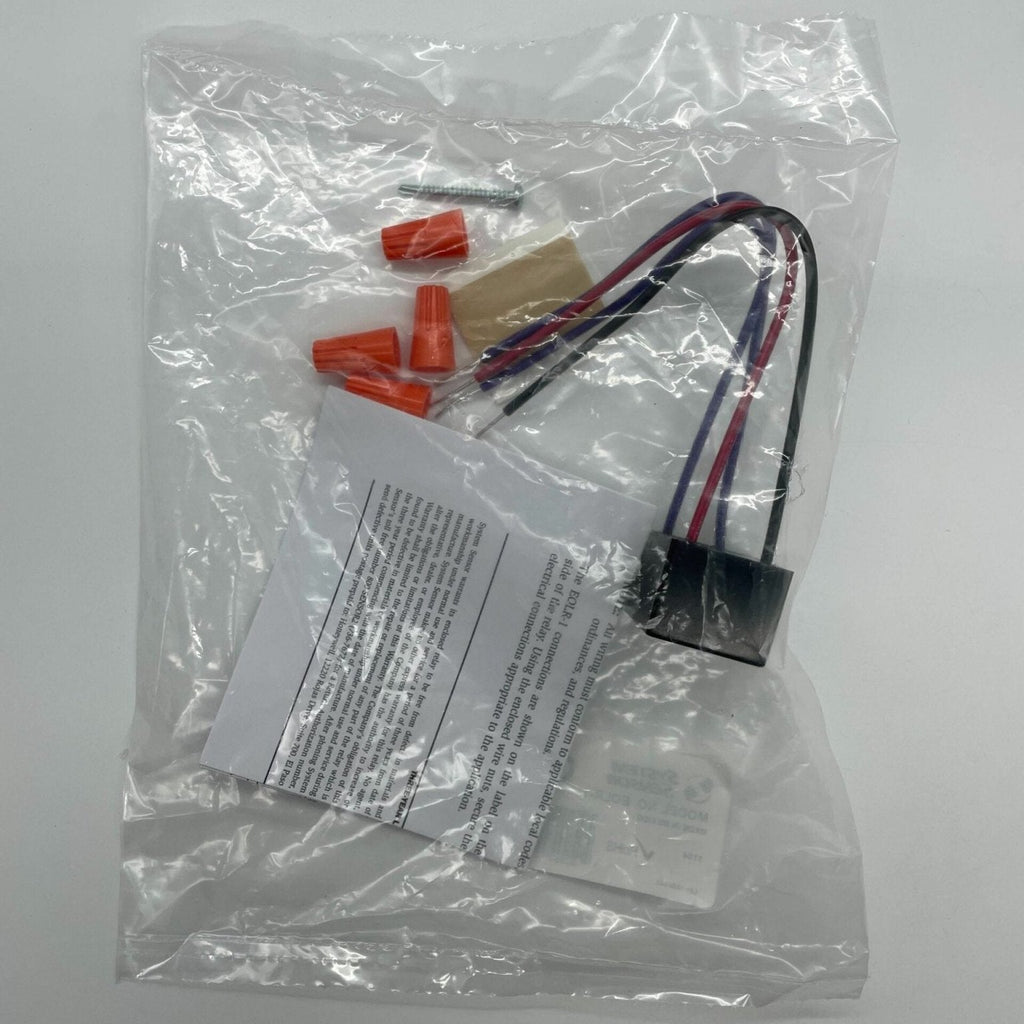

Do not substitute a plain end-of-line resistor such as a 47 kΩ device: a resistor terminates a circuit, while the EOLR-1 switches a dry contact. It ships with wire nuts, tape and a screw.
Documents
FAQ
What is the EOLR-1 used for?
It is an SPST normally open relay used as an end of line device in fire alarm systems, for example to supervise power supplies.
What voltage activates it?
9 to 40 VDC, or 9 to 35 Vrms on unfiltered full wave rectified supplies, at 20 mA maximum.
How are the wires identified?
Red is power input (+), black is power input (-), and the two violet leads are the relay common and normally open contacts.
How is it mounted?
It can be attached to equipment or inside an enclosure with the supplied screw or the double sided tape.
