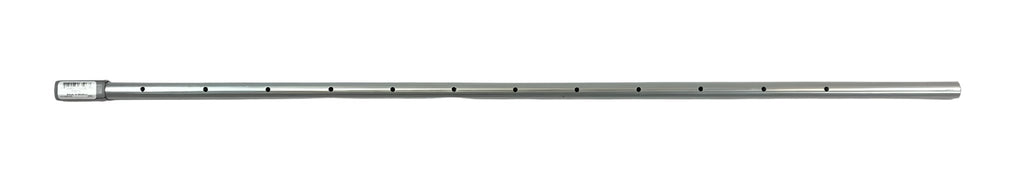

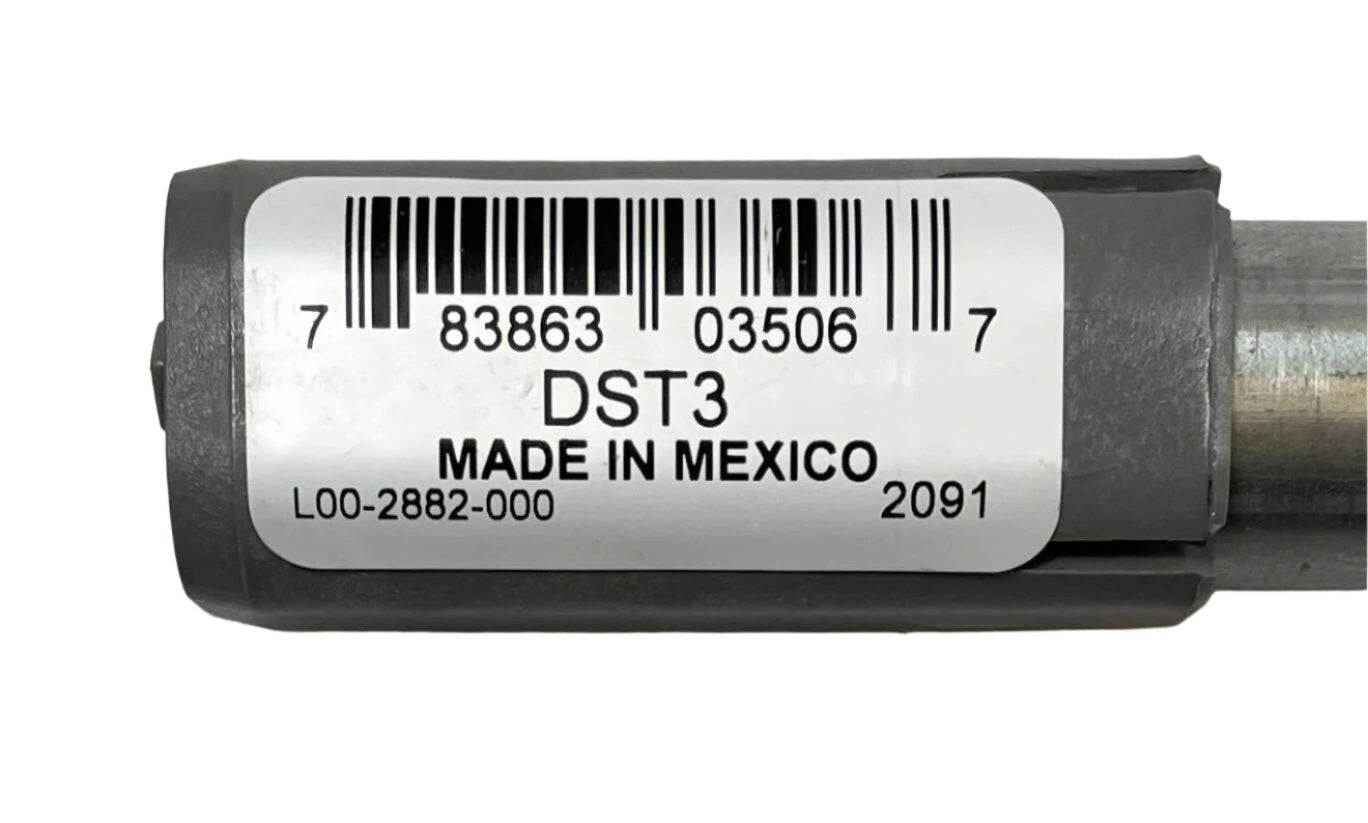

System Sensor DST3 — metal air sampling tube for duct smoke detector housings, for outside duct widths of 2 ft to 4 ft (0.6 to 1.2 m).
A duct smoke detector draws its sample through an intake tube reaching across the duct, and that tube is not in the detector carton. It is ordered to suit the duct, sized by duct width and not by detector model, because a tube stopping short of the airstream cannot sample it properly.
- Duct widths 2 ft to 4 ft (0.6 to 1.2 m), worded identically by System Sensor, Notifier and Gamewell-FCI
- Must extend at least two-thirds of the way across the duct width
- Inlet holes face into the airflow; the connector arrow has to point upstream
- Trim so about 1 to 2 in. protrudes; use a shorter tube if over two inlet holes fall outside
- The end cap sealing the far end ships with the detector, not the tube, and is called critical to correct airflow
The family is sized the same way: DST1 up to 1 ft, DST1.5 for 1 to 2 ft, DST5 for 4 to 8 ft, two-piece DST10 for 8 to 12 ft. Do not confuse it with ETX, the 1 ft metal exhaust tube fitted downstream, or P48-21-00, the end cap.
Documents
FAQ
Which duct width is the DST3 for?
Outside duct widths of 2 to 4 ft. System Sensor recommends DST1 up to 1 ft, DST1.5 for 1 to 2 ft and DST5 for 4 to 8 ft.
Is the end cap included?
No. The sampling tube end cap is included with the detector, and System Sensor calls it critical to correct airflow.
Which way do the holes face?
The air inlet holes always face into the airflow, with the arrow pointing into the airflow.
What if the tube is longer than the duct?
Let it extend out the opposite side, angled down at least 1/4 in. for every 12 in. of duct width. If more than two holes are outside the duct, use a shorter tube; otherwise trim it to leave 1 to 2 in. outside, plug the end and tape any exposed holes.
