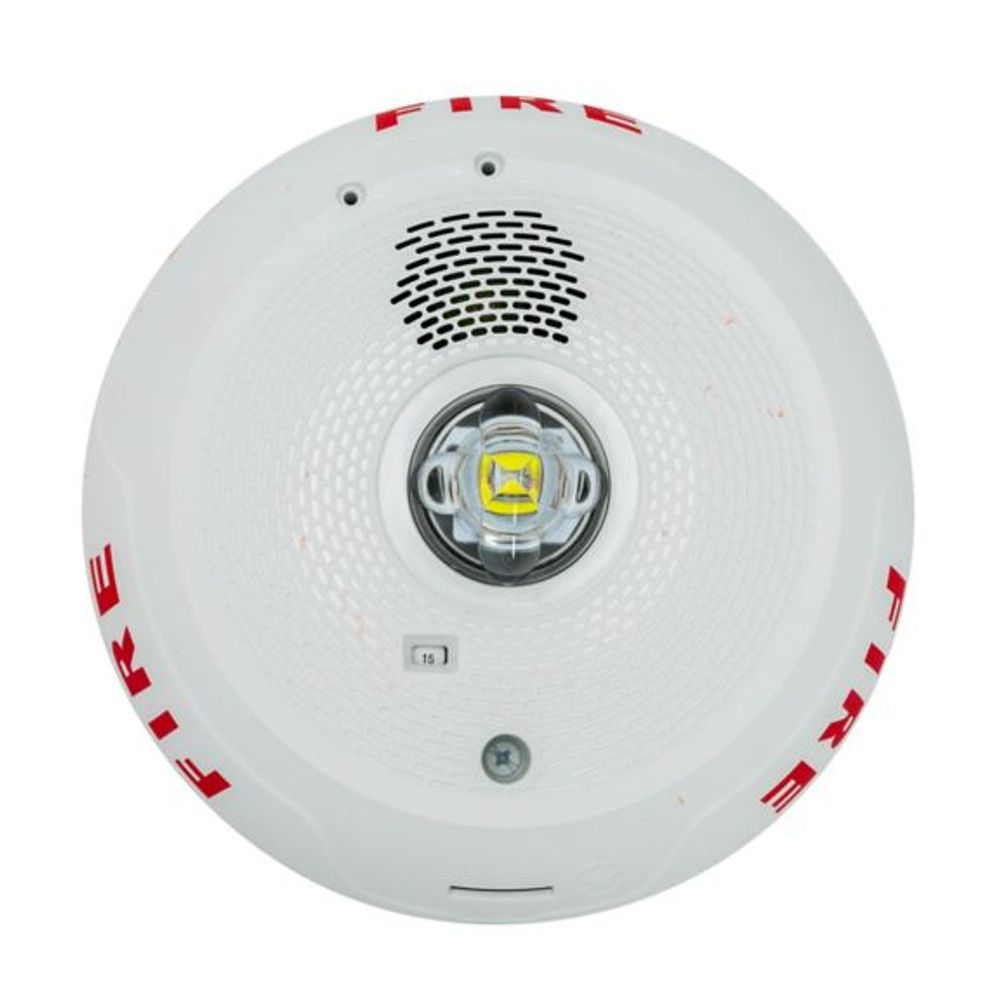

System Sensor CHSCWLED L-Series LED Chime Strobe, Ceiling Mount, White
Ceiling-mount selectable-output chime strobe from System Sensor's L-Series with LED line, in a white housing. It is for private-mode notification such as nurse or security stations and runs on regulated 24 VDC (16-33 V). Candela settings are field-selectable (15-177 cd) and there are 9 chime/whoop patterns.
Key Features
- LED technology for lower current draw
- DVM (digital voltmeter) test points on the face for voltage checks without removing the device
- Field-selectable ceiling candela settings: 15, 30, 75, 95, 115, 150, 177 cd
- Rotary switches for candela and tone/volume selection; 9 chime patterns
- Plug-in mounting plate with shorting spring to check wiring continuity
- Tamper-resistant construction
- Common aesthetics across the L-Series platform
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-Series devices at 16-33 VDC
- Synchronization with UL-approved power supplies supporting the System Sensor Sync protocol or the MDL Sync Module
Specifications
| Mounting |
Ceiling |
| Housing color |
White |
| Nominal voltage |
Regulated 24 VDC |
| Operating voltage range |
16-33 VDC |
| Candela (ceiling) |
15, 30, 75, 95, 115, 150, 177 cd |
| Strobe flash rate |
1 flash per second |
| Chime patterns |
1 s chime, 1/4 s chime, temporal chime, 5 s whoop (high/low each), single chime |
| Sound output (chime strobe, 16-33 VDC) |
58-80 dBA depending on pattern and volume |
| Max current draw (chime strobe, 16-33 V) |
36-50 mA at 15 cd up to 180-189 mA at 177 cd, depending on tone |
| Operating temperature |
32-120 °F (0-49 °C) |
| Humidity |
10-93% non-condensing |
| Wire gauge |
12-18 AWG |
| Dimensions |
6.83 in diameter |
| Listings |
UL/ULC (S4011); CSFM 7135-1653:0503 |
Related Models
- CHSCWLED-B (bilingual, FIRE/FEU)
- CHSCRLED (ceiling, red)
- CHSWLED / CHSRLED (wall)
- SBBCWL ceiling surface-mount back box (white)
- BZWC ceiling white bezel kit
- LENS-A3/B3/G3/R3 coloured LED lenses
- MDL Sync Module
- CHRL / CHWL chimes
Specifications taken from the manufacturer's published literature. Manufacturer specifications are subject to change without notice.
