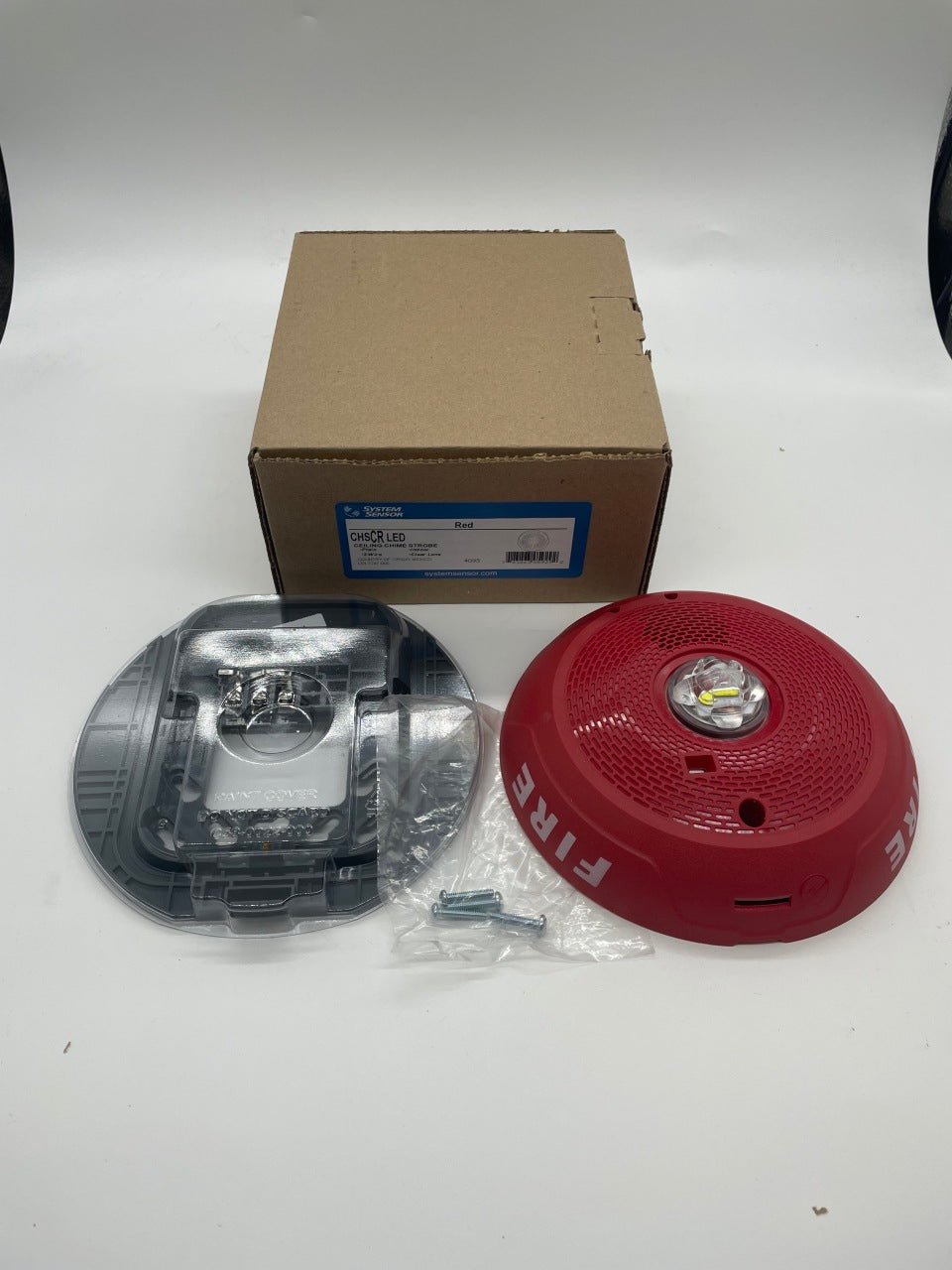

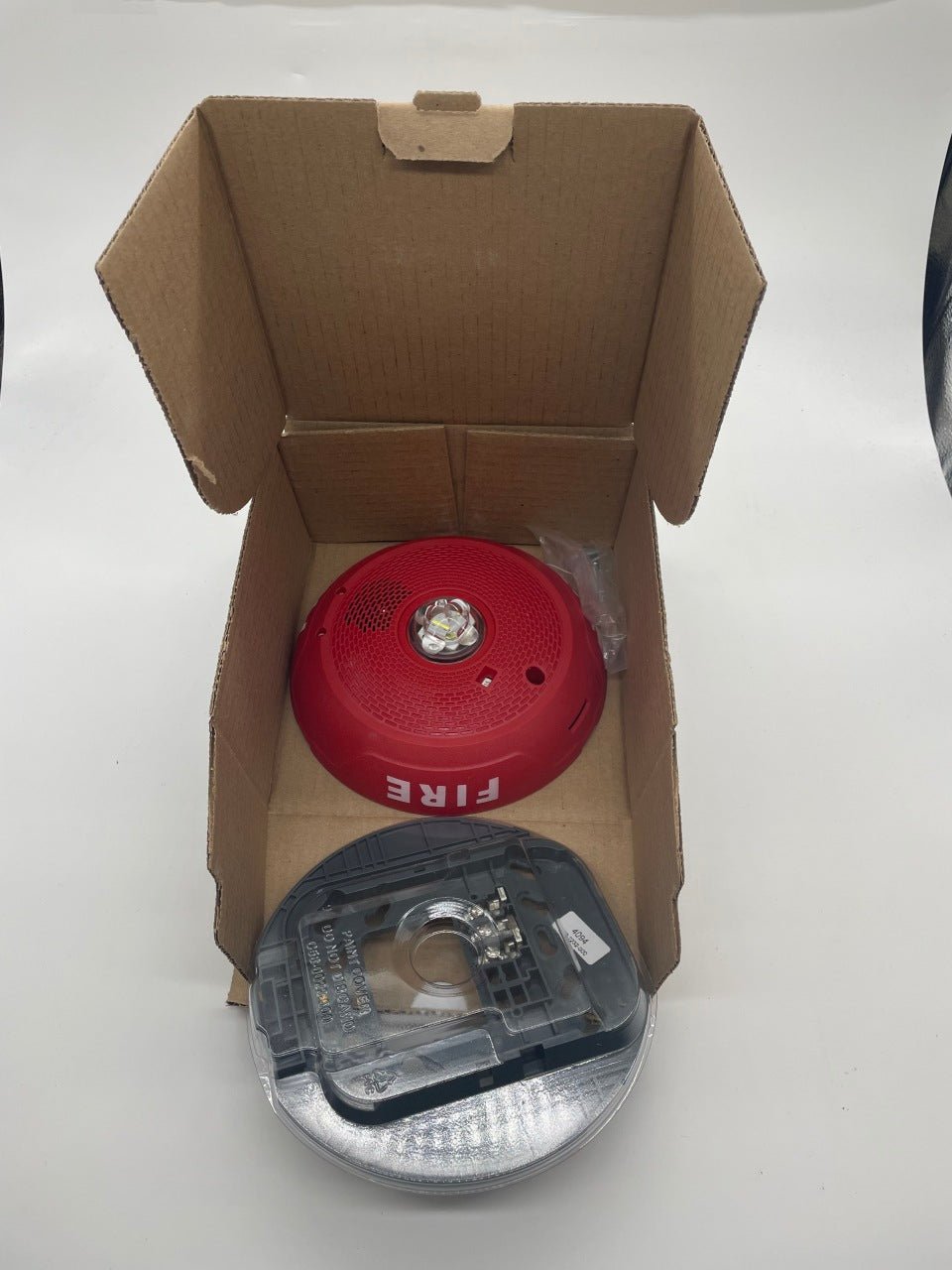

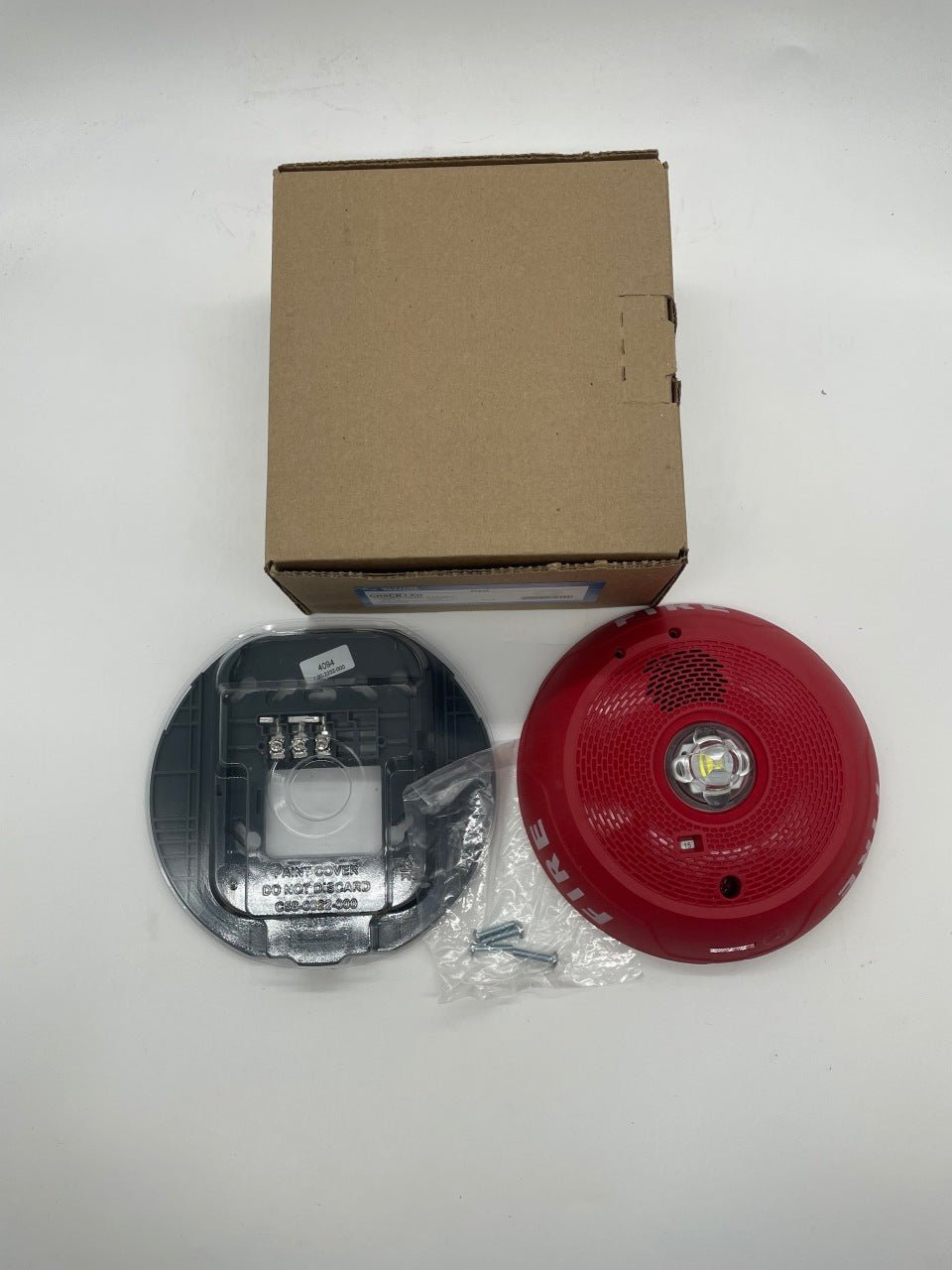

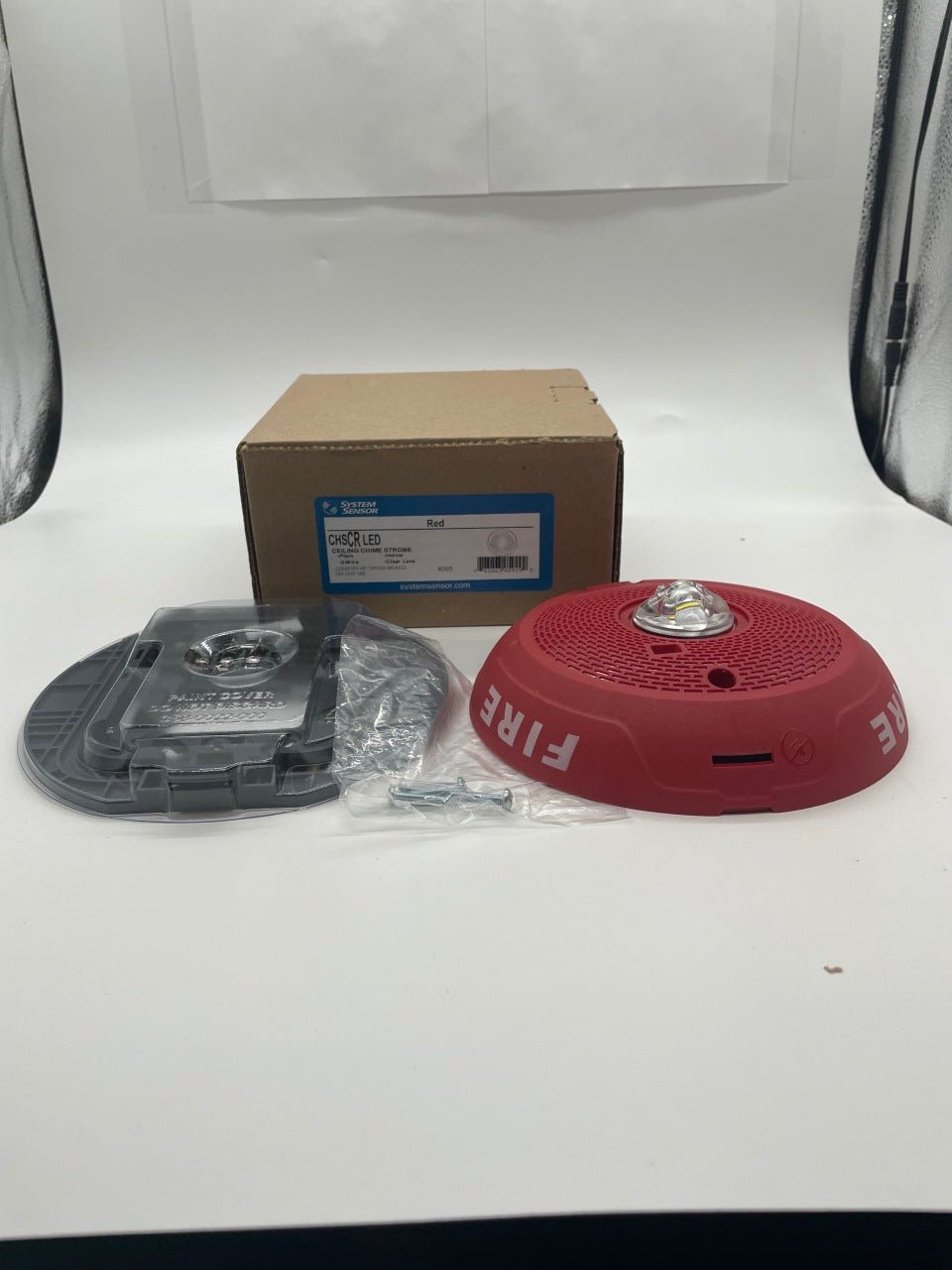

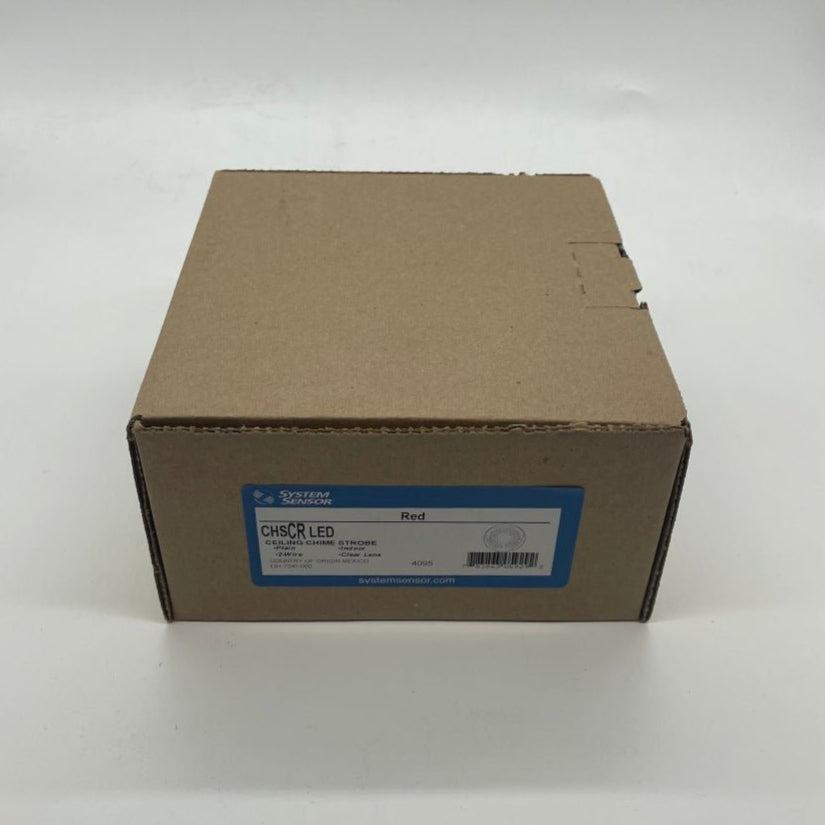

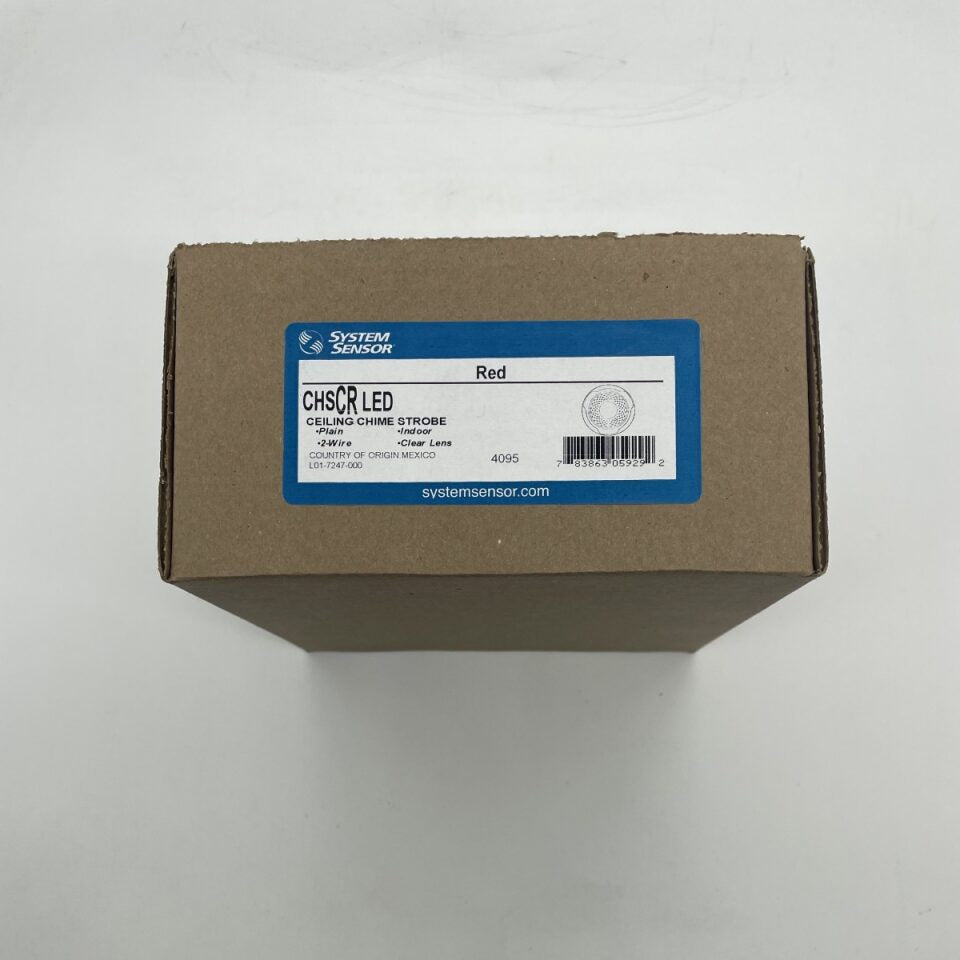

System Sensor CHSCRLED is a ceiling-mount chime strobe in red from the System Sensor L-Series with LED platform. It combines an audible chime with an LED strobe for areas where a softer tone is preferred.
Security guard and nurse workstations are described as ideal locations for these chimes and chime strobes. The plug-in design keeps intrusion into the back box to a minimum.
Features
- LED technology for lower current draw
- Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177

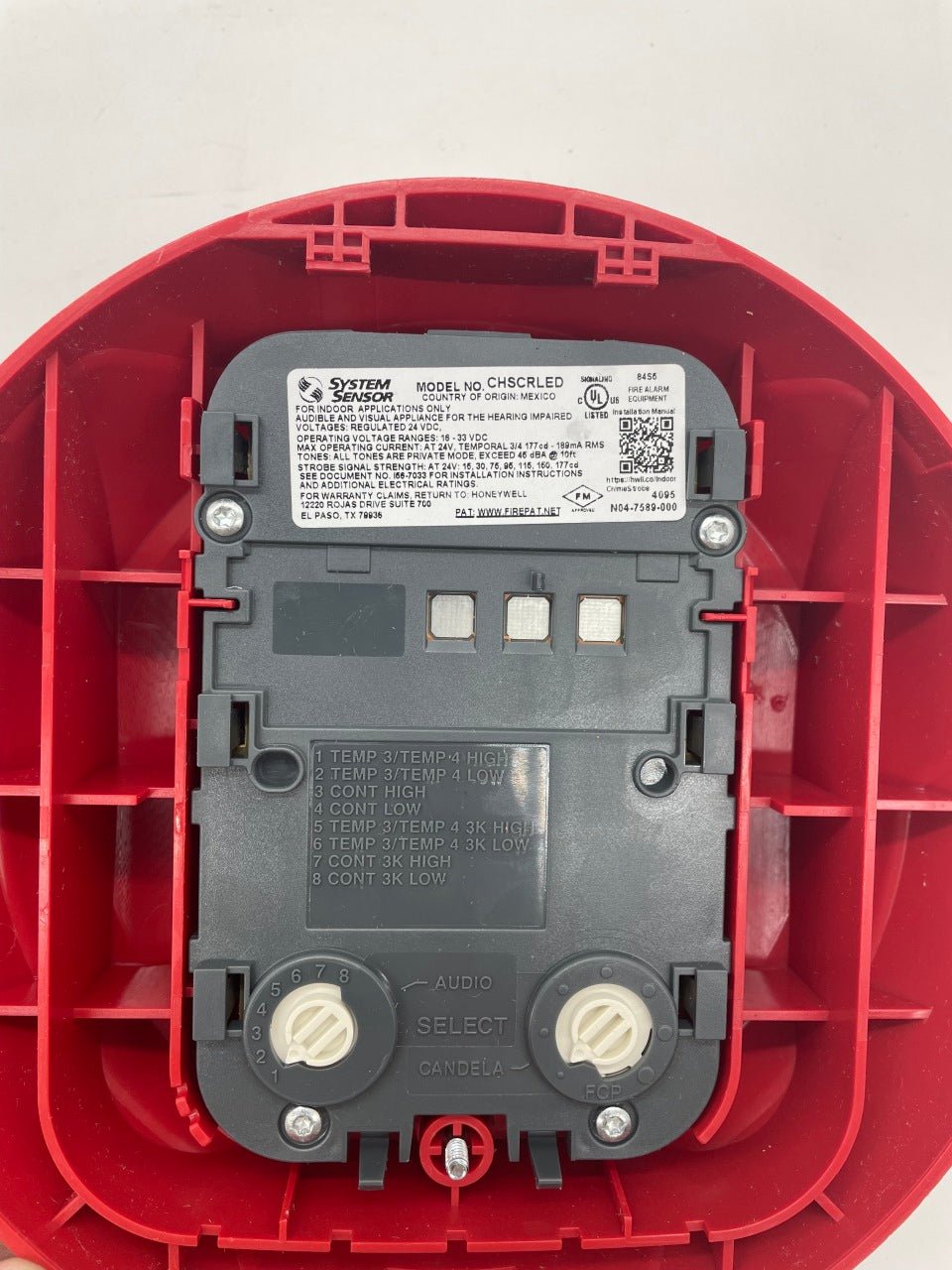

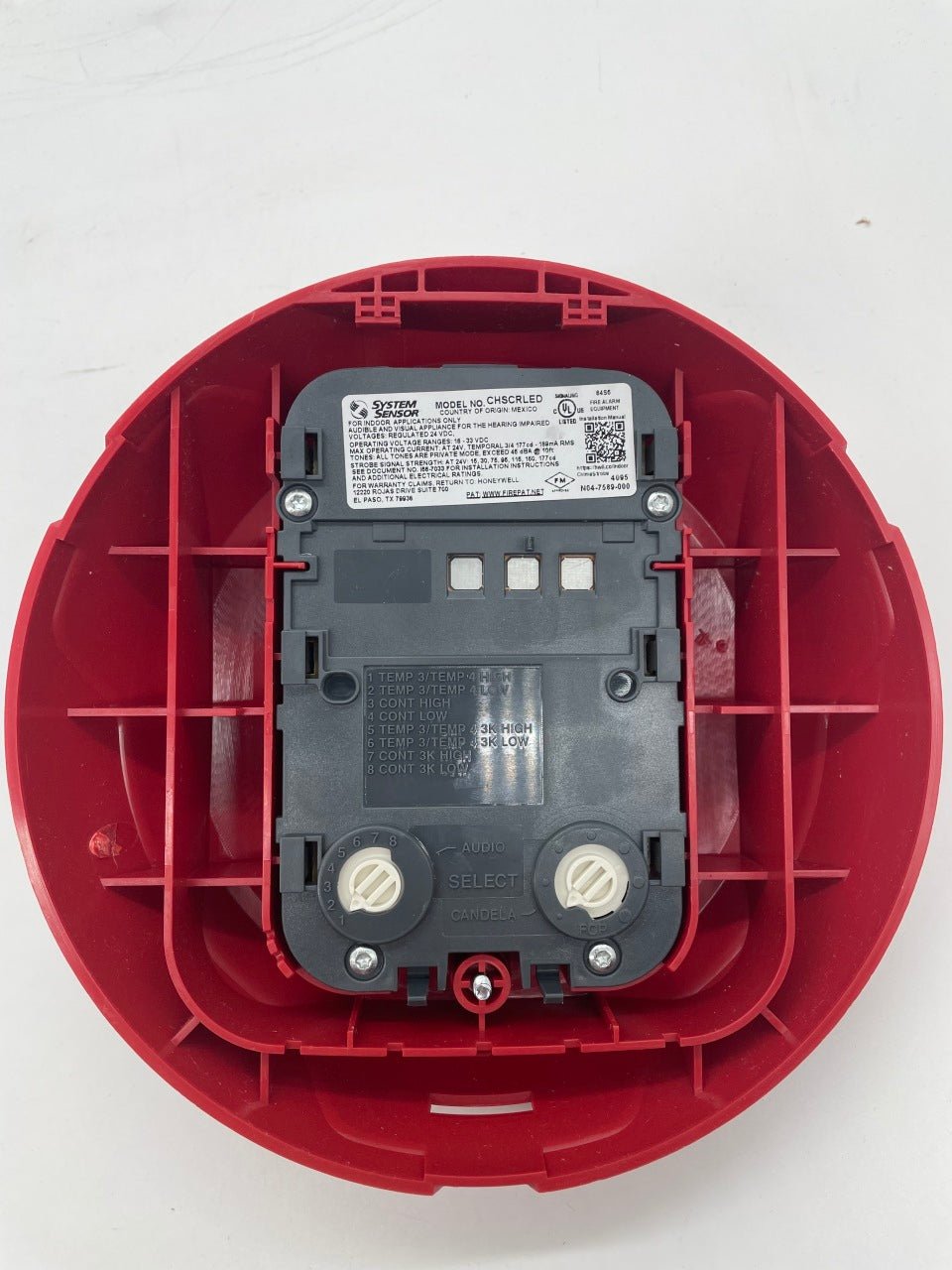

- Rotary switches for candela, tone, and volume selection
- Digital voltmeter (DVM) test points on the face allow voltage checks without removing the device

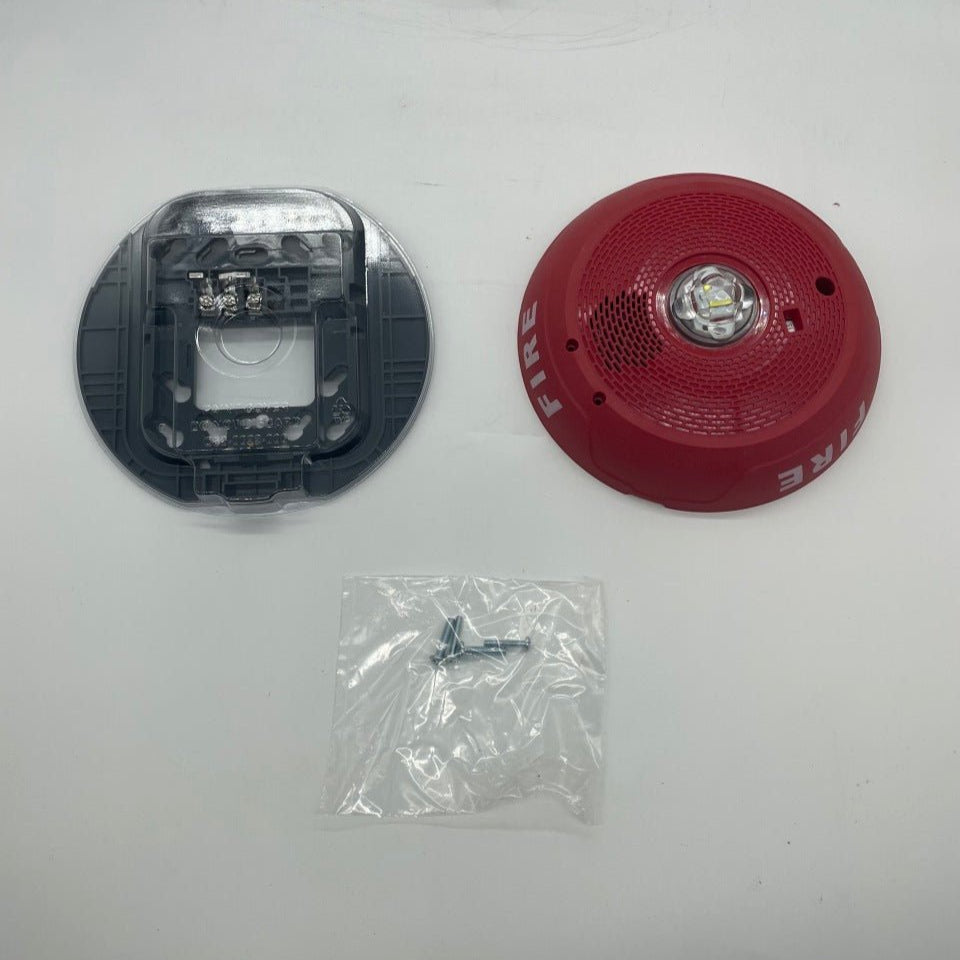

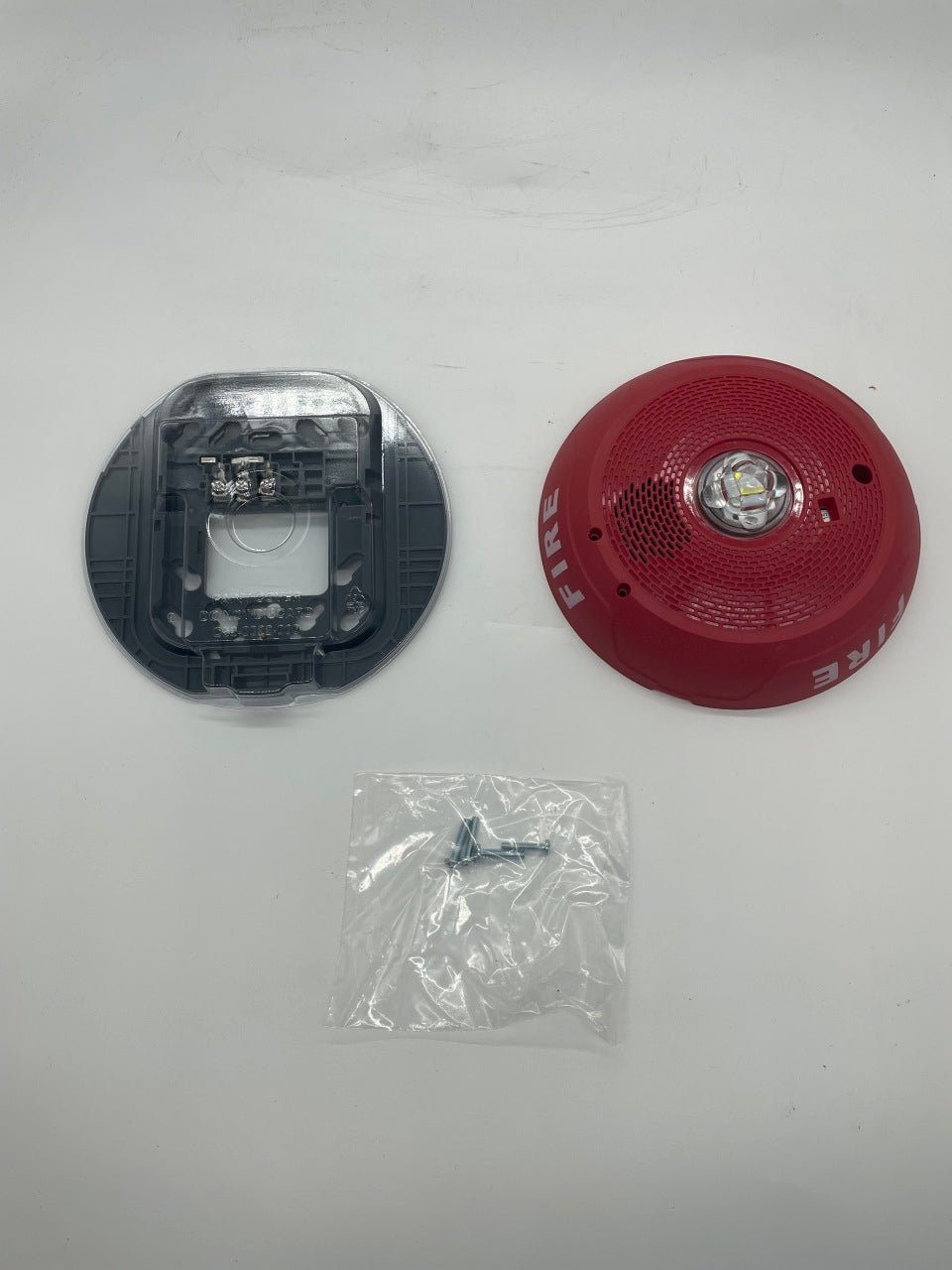

- Plug-in mounting plate with a shorting spring to test wiring continuity before installation
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance, and L-Series devices
- Synchronizes with approved power supplies supporting System Sensor Sync protocol or the MDL Sync Module
Specifications
| Type |
Chime strobe |
| Strobe source |
LED |
| Mounting |
Ceiling |
| Color |
Red |
