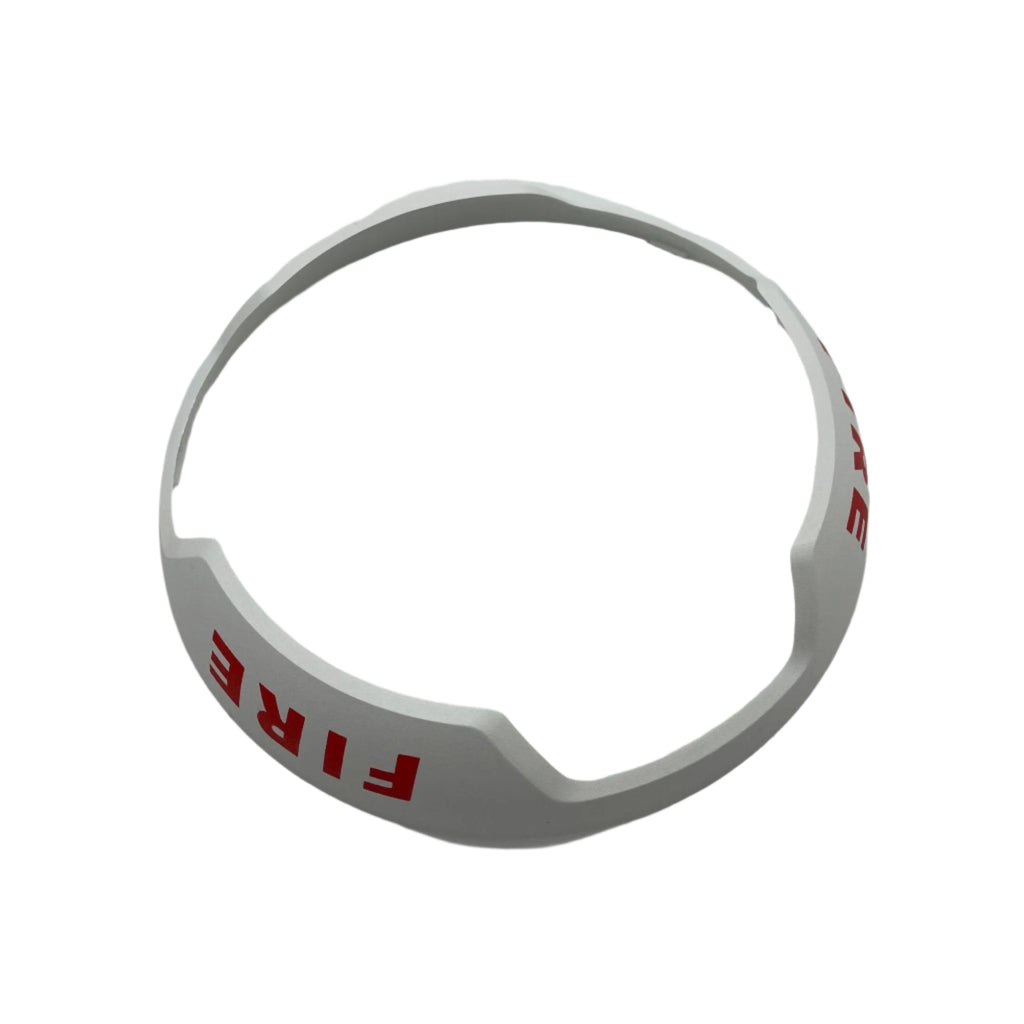

System Sensor BZWC-F is a ceiling-mount white bezel kit with FIRE wording for indoor System Sensor L-Series notification appliances. The bezel snaps onto the appliance and sets the marking shown on its face, so installers can finish an L-Series strobe, horn, chime, speaker or combination device with the wording the job calls for.
Specifications
| Brand |
System Sensor |
| Model |
BZWC-F |
| Type |
Bezel kit, ceiling mount |
| Color |
White |
| Marking |
FIRE (the -F suffix) |
| Quantity per pack |

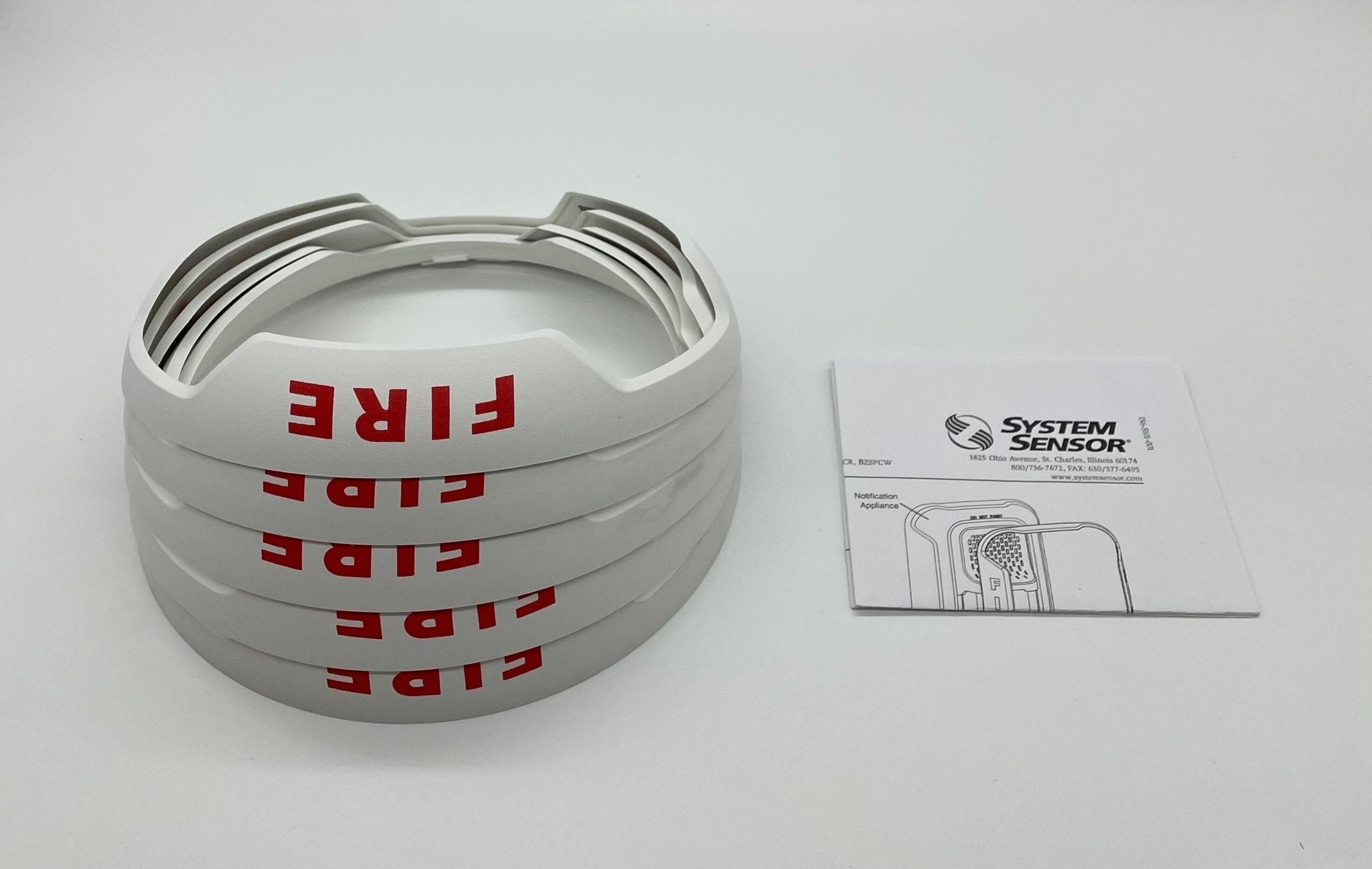

5 bezels |
| Operating temperature |
-40°F to 151°F (-40°C to 66°C) |
| Application |
Indoor use only |
Installation notes
- Orient the bezel to the L-Series device.
- Gently snap the bezel into place so the wording shows on the face of the appliance.
- Use only with indoor System Sensor L-Series models.
Compatible with
- L-Series strobes, horns, chimes, speakers, horn strobes, chime strobes and speaker strobes
Other wording is sold under the same BZWC base number: -AL (ALERT), -EV (EVAC), -AG (AGENT) and -P (plain, no marking).
