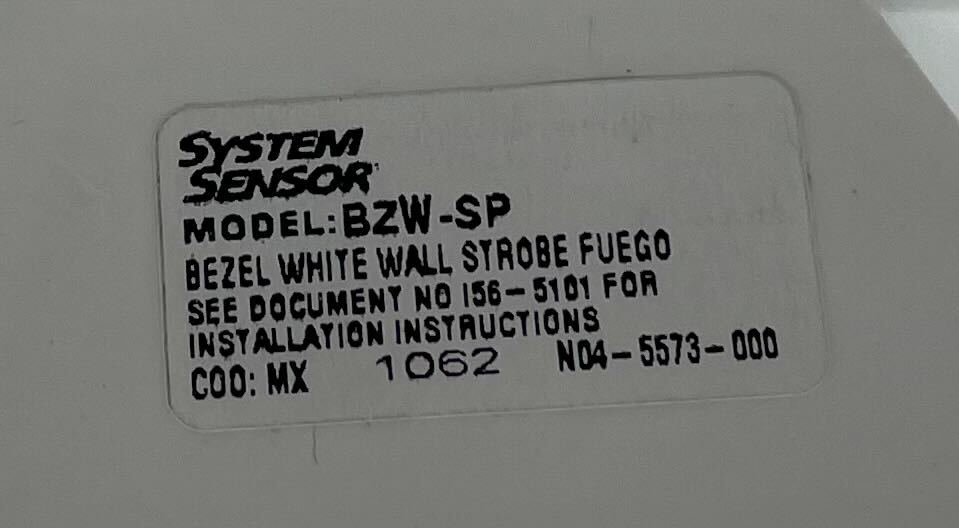

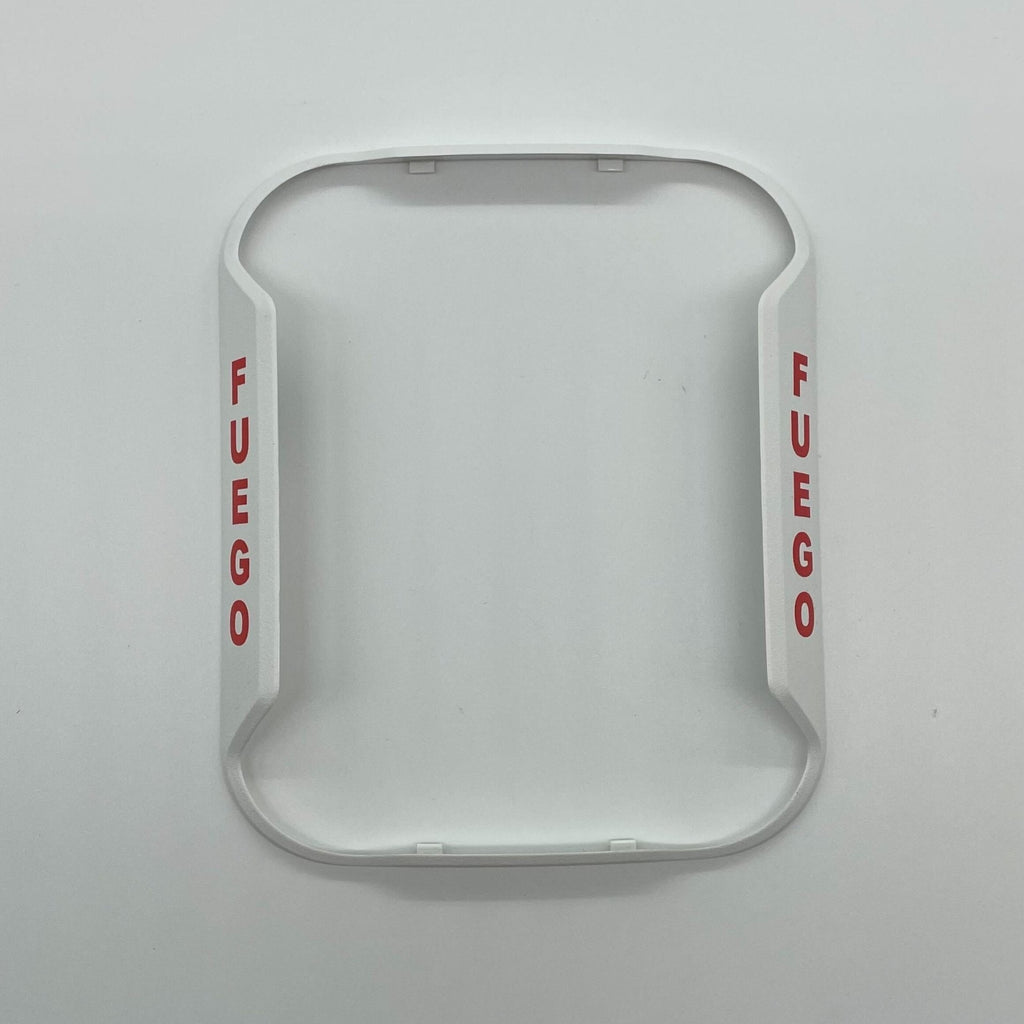

System Sensor BZW-SP — wall white L-Series bezel kit lettered FUEGO, supplied five per pack.
A bezel snaps over the face of an installed L-Series appliance to change the wording it shows, so a FIRE or plain device can be relabeled for Spanish-language or ECS/MNS use without swapping the appliance. Nothing is rewired and no address or candela setting changes. System Sensor builds the code from footprint and color, BZW being the wall white bezel kit, plus a lettering extension.
- BZW is the wall white bezel kit; the -SP extension is the FUEGO (Spanish) print option

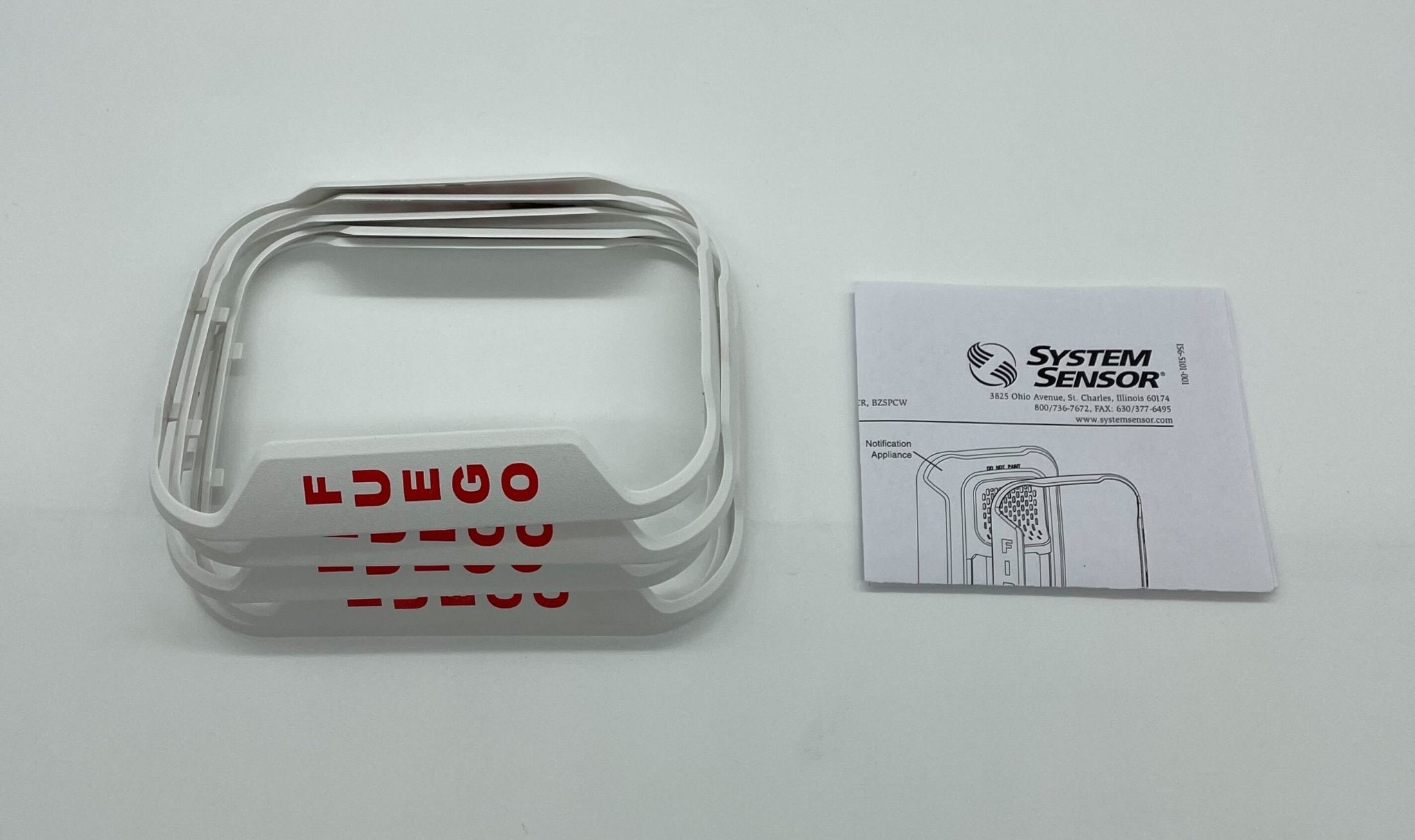

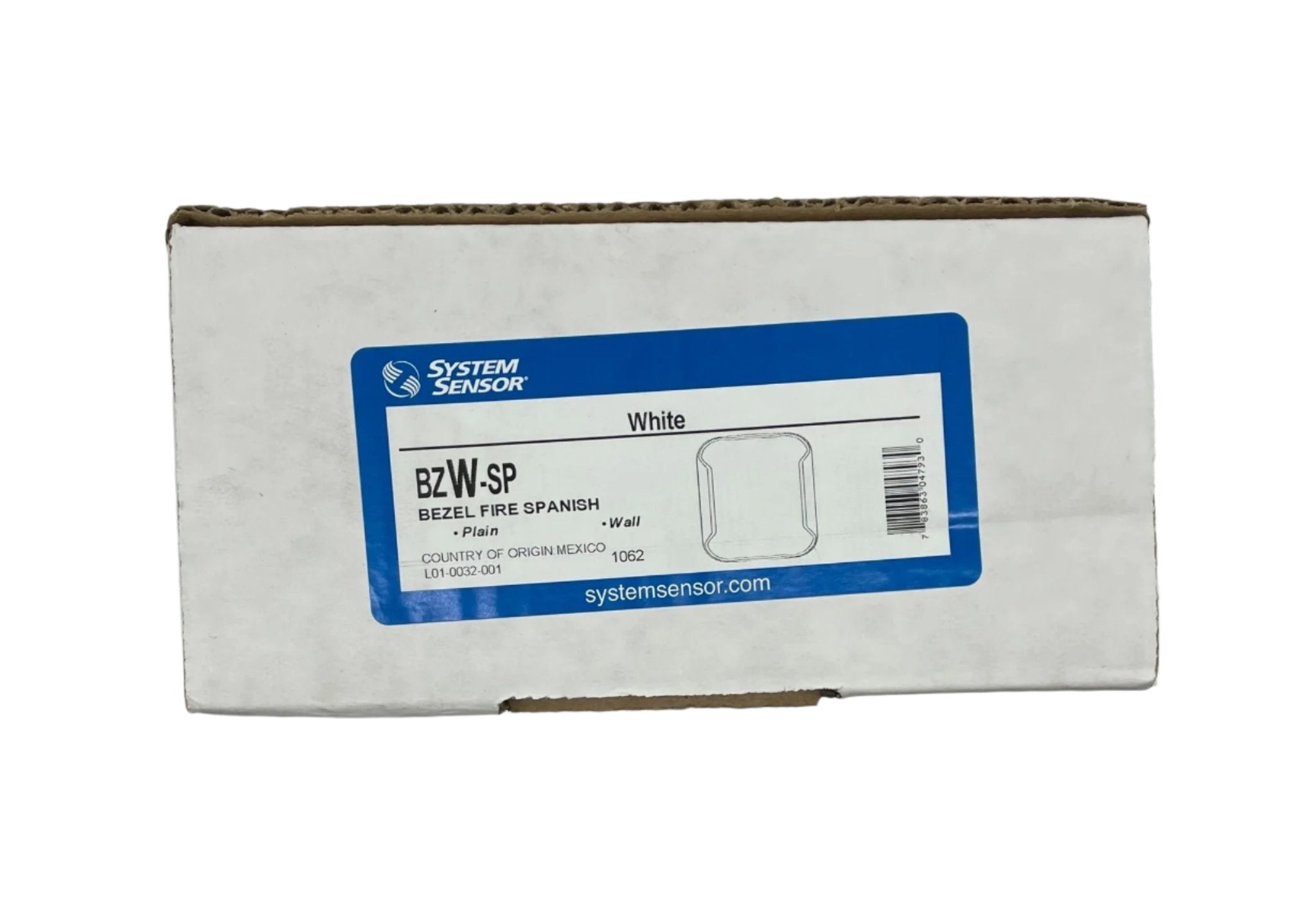

- Each bezel pack ships in a package of 5, per System Sensor
- For indoor System Sensor L-Series and L-Series with LED devices only
- Operating temperature –40°F to 151°F (–40°C to 66°C)

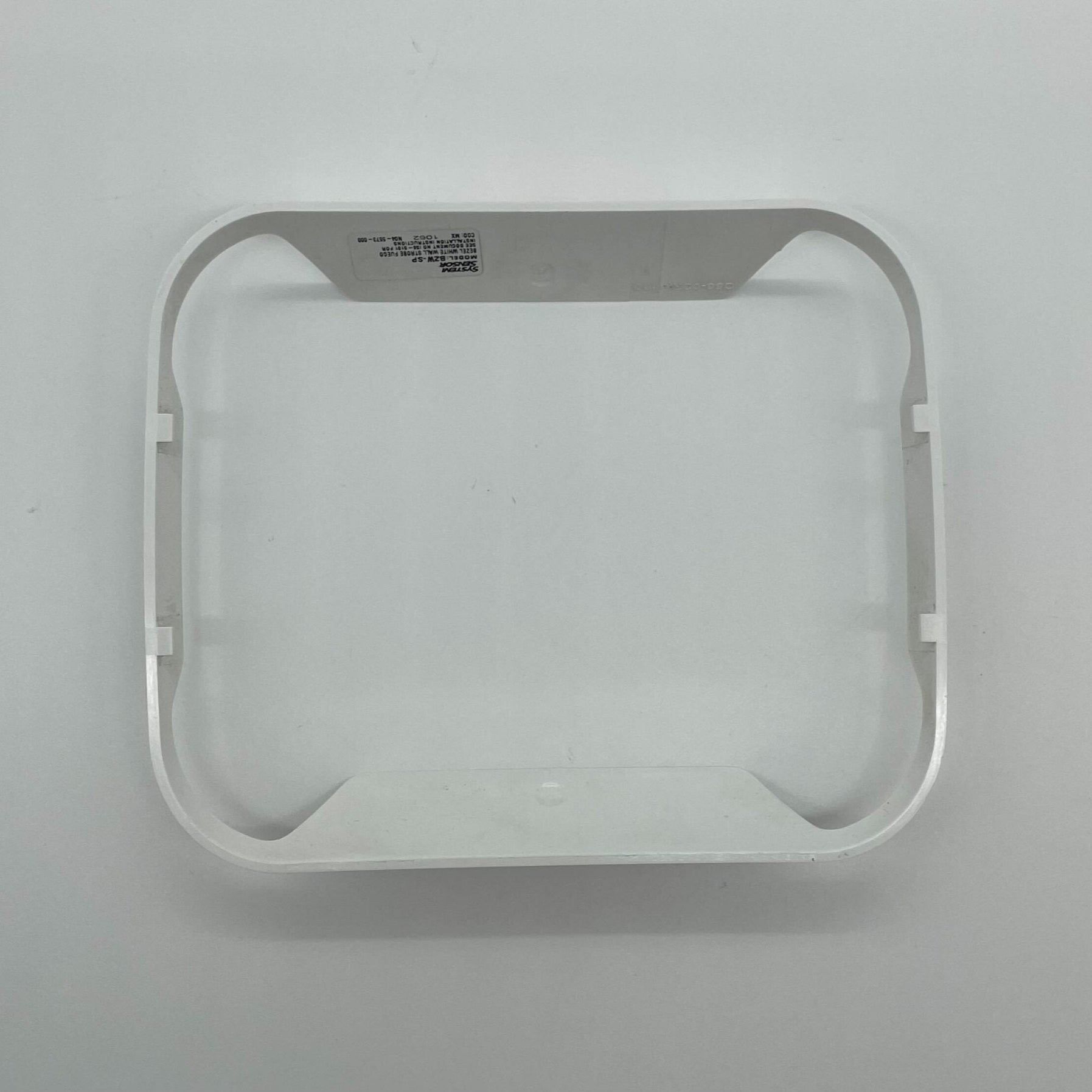

- Installs by orienting the bezel to the appliance and snapping it into place
Confirm both halves of the code. BZR is wall red, BZGW compact wall white, BZWC horn-strobe ceiling white, BZSPW speaker-strobe wall white. Lettering runs -F FIRE, -AL ALERT, -EV EVAC, -AG AGENT, -P plain, -FR FEU, -PG FOGO, -SP FUEGO, -SPE FUEGO/FIRE. And this is a five-pack, not one bezel.
