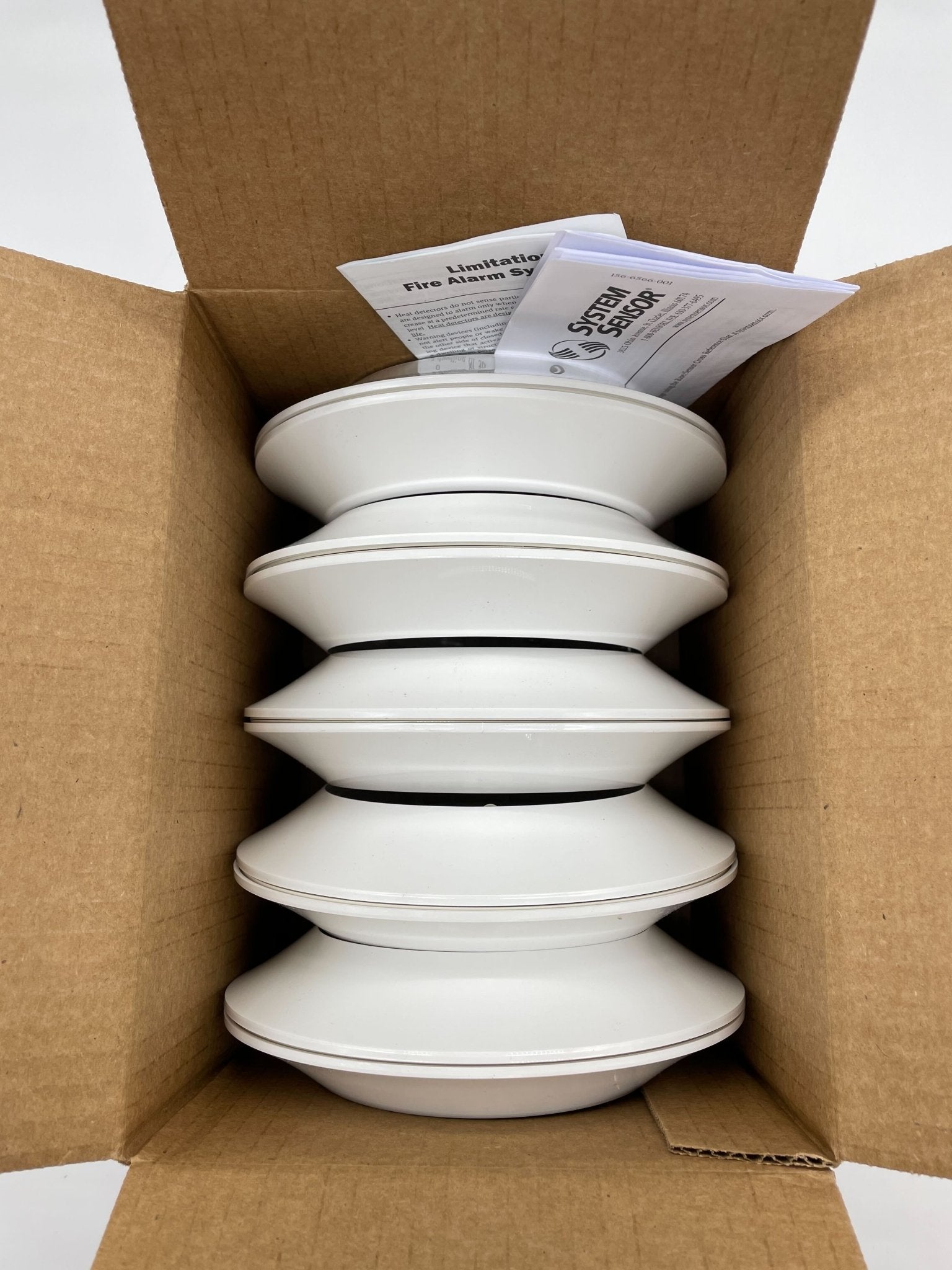

System Sensor B300-6-BP is a bulk pack of ten B300-6 white 6 in. flanged plug-in detector bases for intelligent systems.

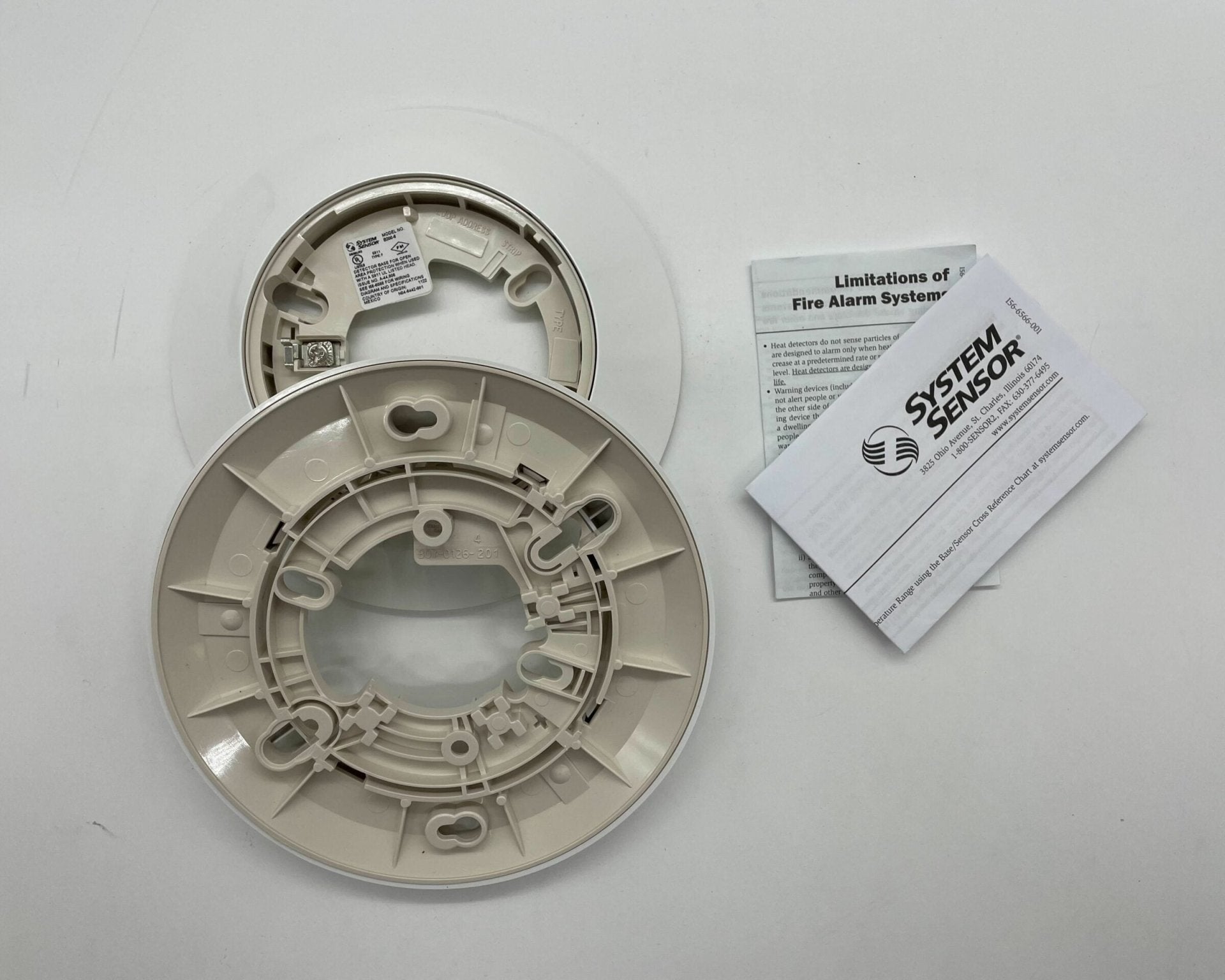

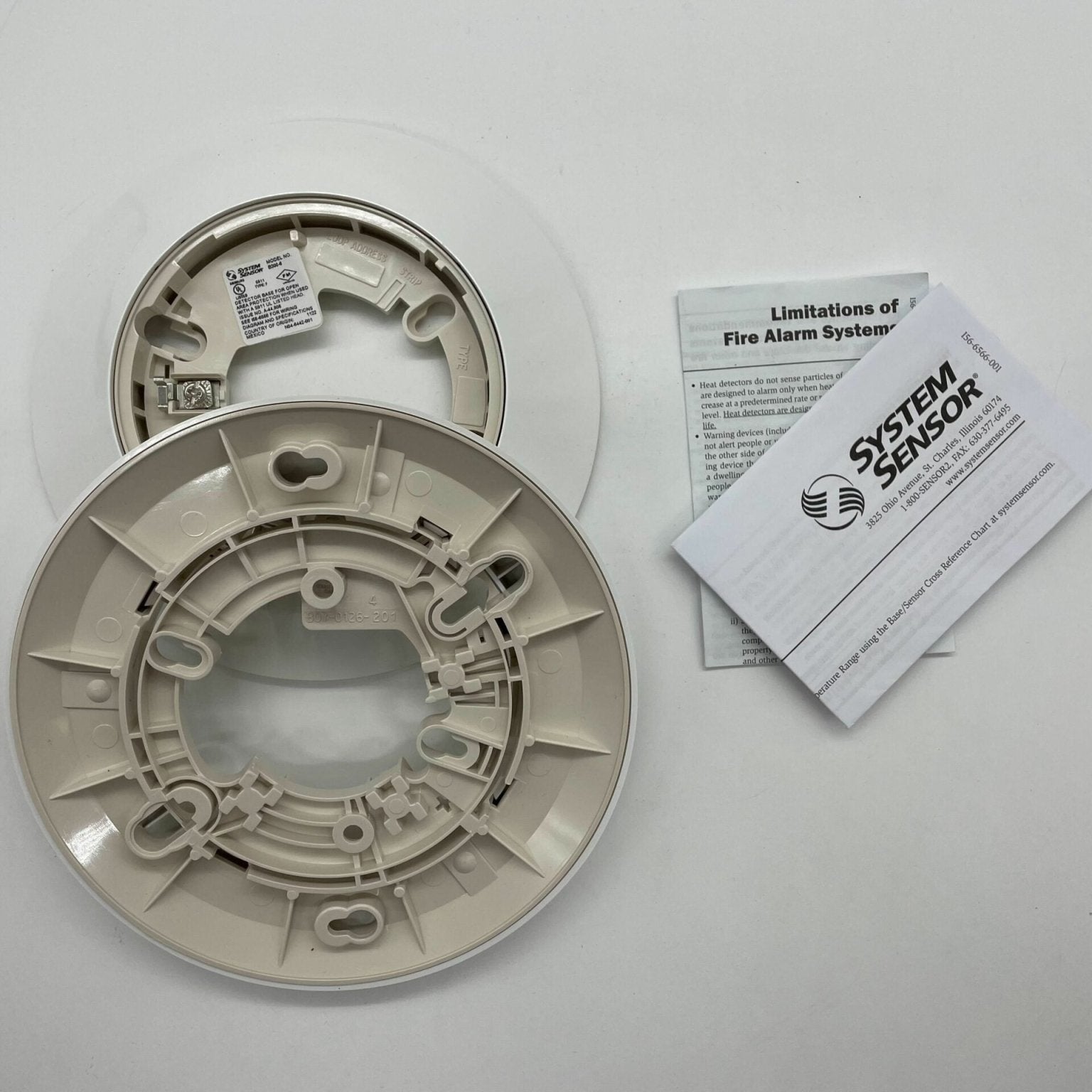

The B300-6 is a standard plug-in detector base intended for use in an intelligent system, with screw terminals for power (+ and –) and a remote annunciator connection. Communication takes place over the power lines. The 6 in. base fits a wider range of junction boxes than the 4 in. base, and a decorative trim ring snaps onto the base after it is fastened to the box. The base carries a mechanical locking feature that restricts removal of the attached sensor head.
Specifications
| Contents |
10 x B300-6 6 in. flanged mounting base, white |
| Base diameter |
6.1 in. (155 mm) |
| Base height |
0.76 in. (19 mm) |
| Weight (each base) |
0.32 lb (145 g) |
| Operating voltage |
15 to 32 VDC |
| Standby current |
170 µA maximum |
| Wire gauge |
18 AWG (0.823 mm²) to 12 AWG (3.31 mm²) |
| Junction boxes |
4 in. square (with or without plaster ring), 4 in. octagon, 3-1/2 in. octagon, single gang |
| Terminals |
1: power (–) and remote annunciator (–); 2: power (+); 3: remote annunciator (+) |
| Standard |
UL 268 |
| CSFM |
7300-1653:0109 |
Installation notes
- Remove the decorative ring, fasten the base to the box with the screws supplied with the junction box, then snap the ring back on.
- Operating temperature follows the detector installed; see the System Sensor base/sensor cross reference chart.
- Optional accessories: TR300 trim ring, RA100Z remote LED annunciator, and the M02-04-00 test magnet.
Related models
-
B300-6 — the same base sold individually
-
B300-6-IV — ivory version of the 6 in. flanged base
-
B501-WHITE / B501-IV — 4 in. flangeless mounting base
Specifications taken from the System Sensor data sheet "Select Series Mounting Base Options," SPDS901-00 (04/04/2018), and installation instructions I56-6566-002. Manufacturer specifications are subject to change without notice.
Documents
FAQ
How many bases are in the B300-6-BP?
Ten white B300-6 6 in. flanged mounting bases.
Which junction boxes does the B300-6 fit?
4 in. square boxes with or without plaster rings, 4 in. octagon, 3-1/2 in. octagon and single gang boxes.
What are the electrical ratings?
15 to 32 VDC operating voltage and 170 µA maximum standby current; communication takes place over the power lines.
Which detectors use the B300-6?
Plug-in intelligent detectors such as System Sensor Select Series and NOTIFIER FST-951 Series heads, which list the B300-6 as a standard base.
