System Sensor B200SR-IV is an ivory B200SR series intelligent sounder base for plug-in addressable detector heads, designed for new and existing dwelling unit applications. The detector head is ordered separately.

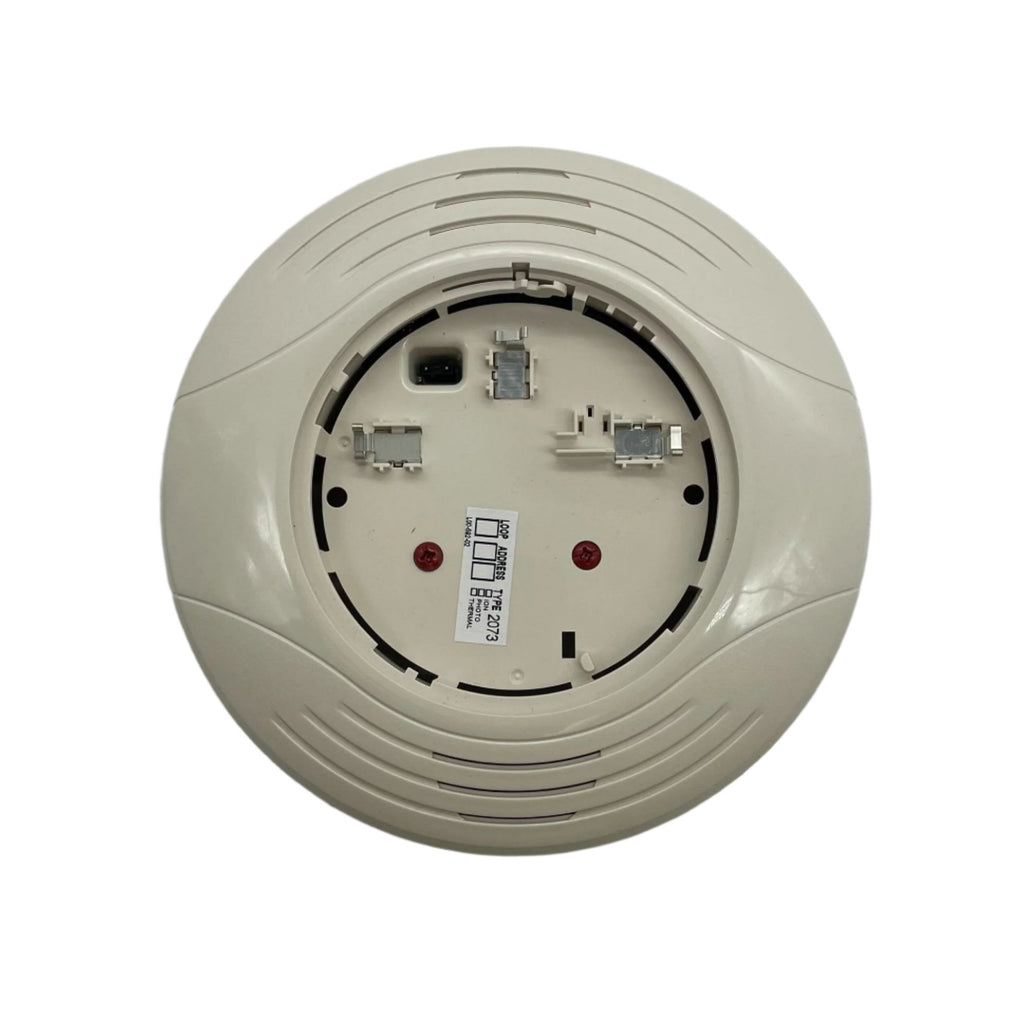

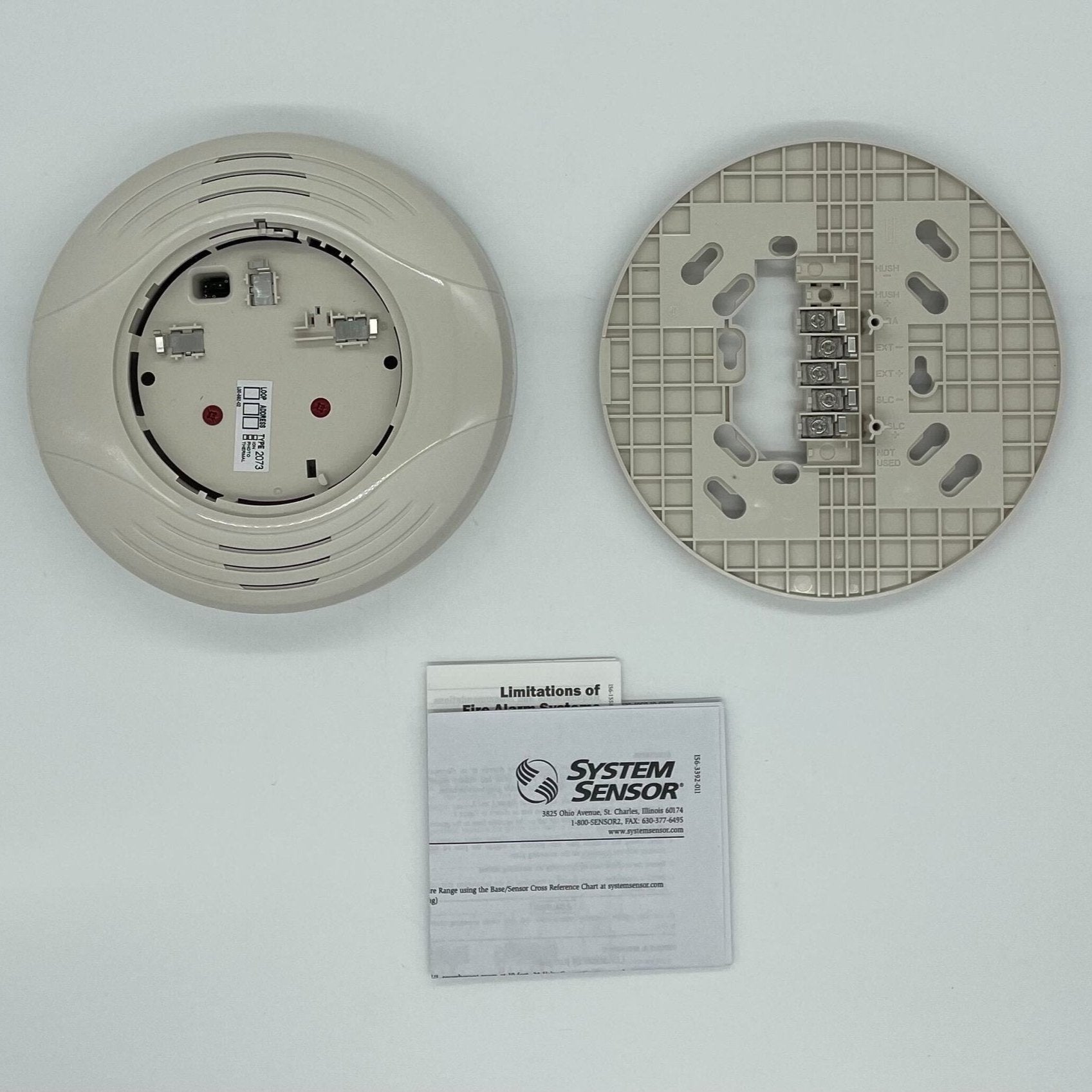

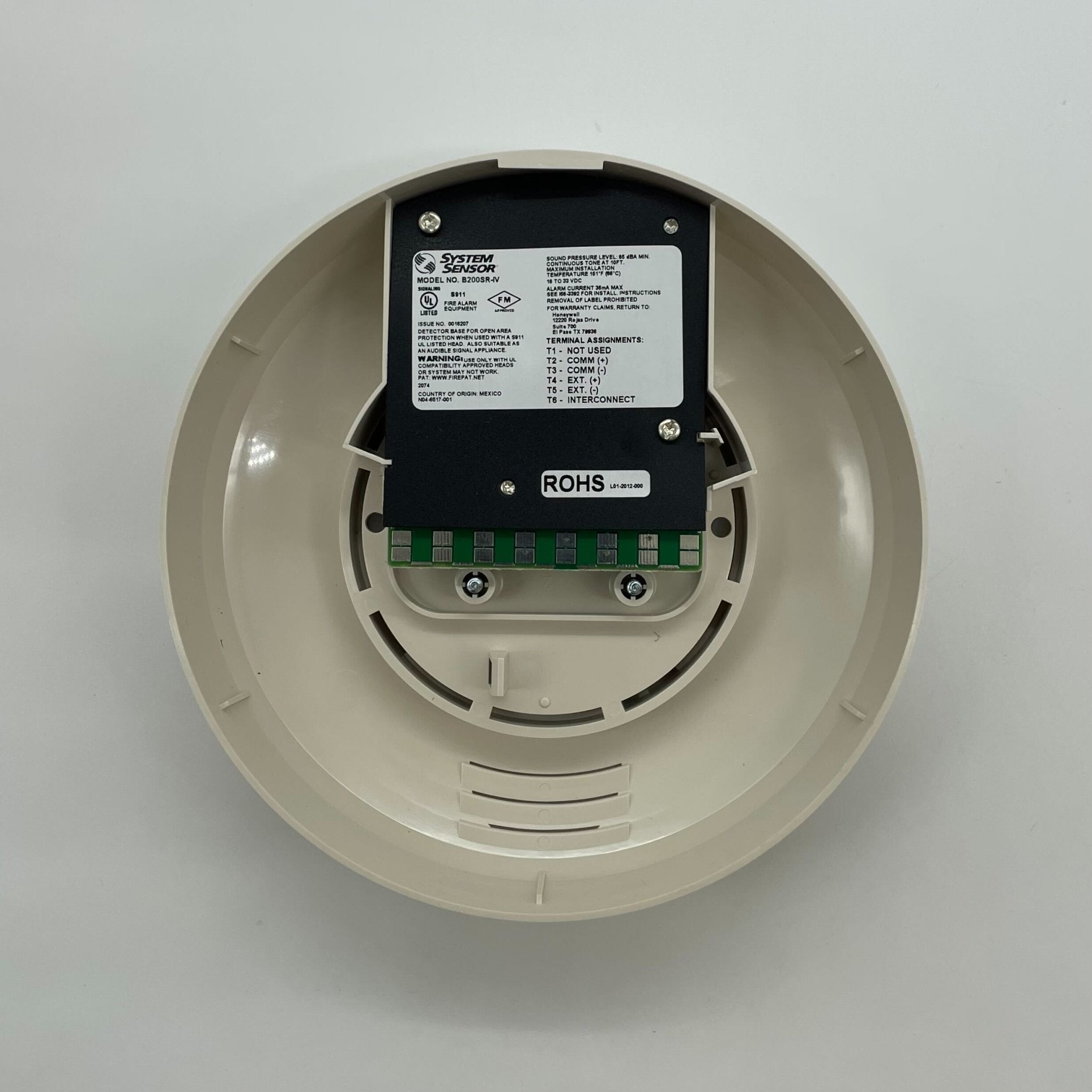

The B200SR offers the two B501BH-supported tones, ANSI Temporal 3 or Continuous, selected by removing an onboard jumper, and it is fully compatible with existing B501BH-Series sounder base installations. A separate mounting plate fits various junction box sizes and allows all connections to be pre-wired. The housing then mates with the plate and is locked with two retaining screws that are covered by the installed sensor head, and a mechanical locking feature prevents removal of the attached head.
Specifications
| Color |
Ivory |
| Tones |
ANSI Temporal 3 or Continuous (jumper selectable) |
| Sound output |
Greater than 85 dBA minimum at 10 ft, 24 V, continuous tone |
| External supply voltage |
16 to 33 VDC (VFWR) |
| External supply standby current |
1 mA maximum |
| Alarm current |
35 mA maximum |
| SLC operating voltage |
15 to 32 VDC |
| Base diameter |
6.875 in (17.46 cm) |
| Base height |
2.0 in (5.08 cm) less sensor |
| Shipping weight |
0.50 lb (227 g) |
| Humidity |
10% to 93% RH, non-condensing |
| Operating temperature |
Per the installed sensor (Base/Sensor Cross Reference Chart) |
| Compliance |
UL 268 and UL 464; CSFM 7135-1653:0213 |

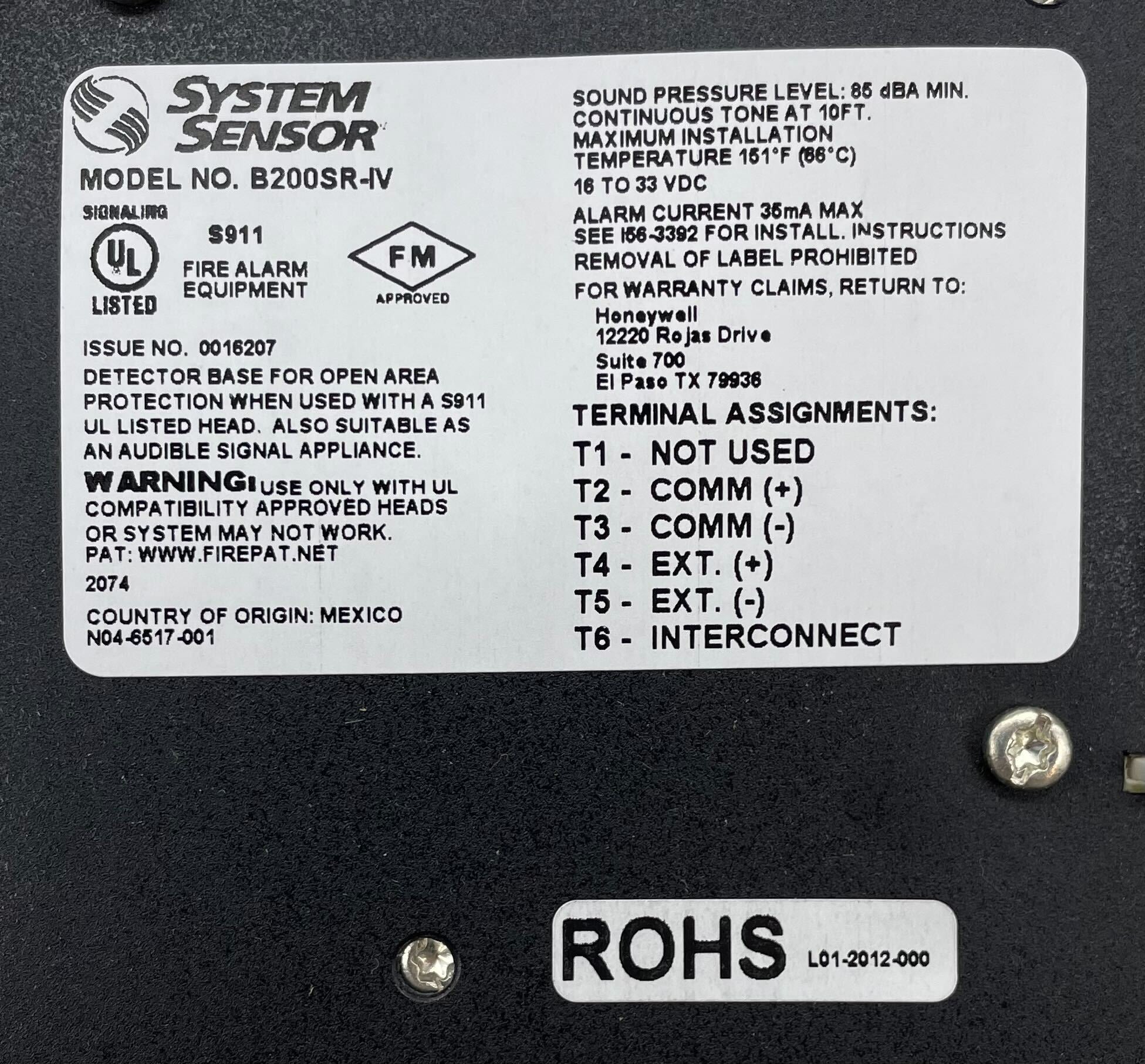

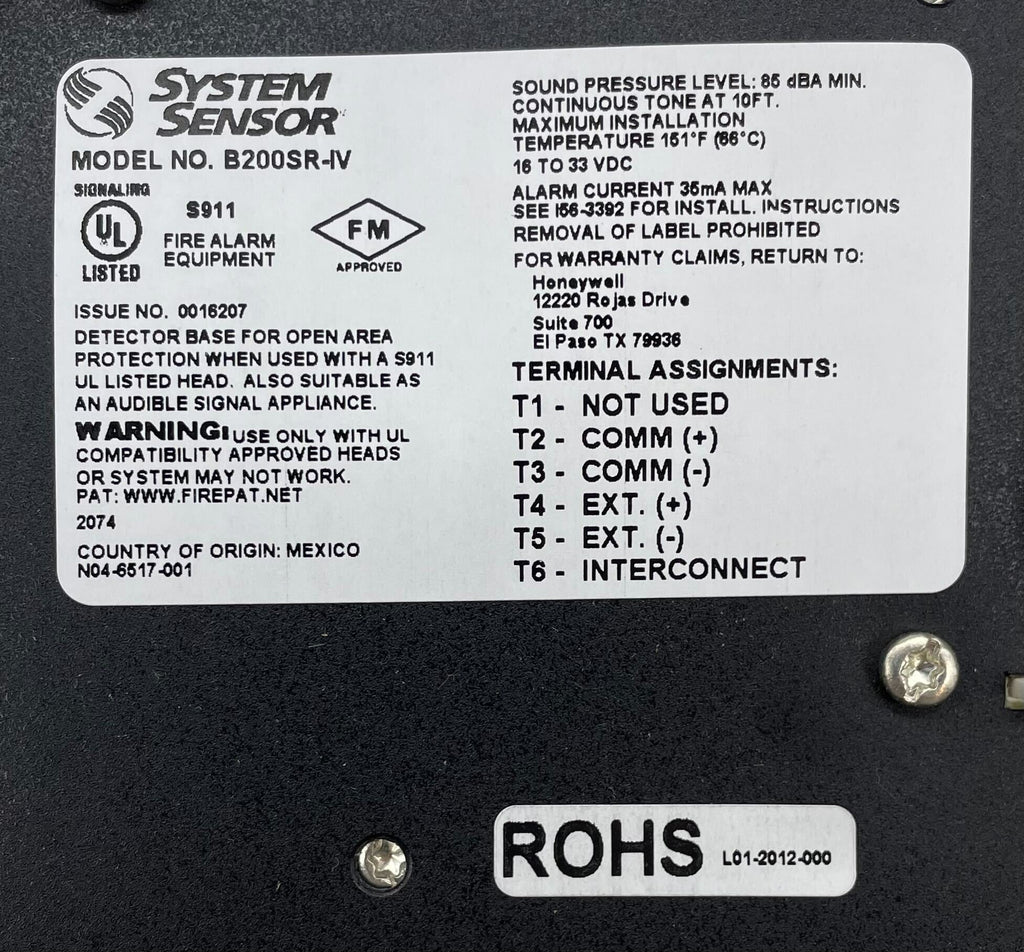

Installation notes
- The sounder requires an external 16 to 33 VDC supply in addition to the SLC connection.
- Confirm the detector head against the System Sensor Base/Sensor Cross Reference Chart; it also sets the operating temperature range.
- For sleeping areas that require a 520 Hz low frequency tone, use the B200SR-LF version.
Related models
- B200SR-WH — same sounder base in white
- B200SR-LF-IV — low frequency 520 Hz version in ivory
- B200S-IV — B200S series intelligent sounder base in ivory
- B300-6-IV — 6 in standard base in ivory
Documents
FAQ
Is a detector head included with the B200SR-IV?
No. It is a sounder base only; the plug-in addressable detector head is ordered separately.
Which tones can it produce?
ANSI Temporal 3 or Continuous, selected by removing an onboard jumper.
Does it need a separate power supply?
Yes. The sounder runs from an external 16 to 33 VDC supply and draws up to 35 mA in alarm.
Can it replace a B501BH sounder base?
Yes. The B200SR series is fully compatible with existing B501BH-Series sounder base installations.
