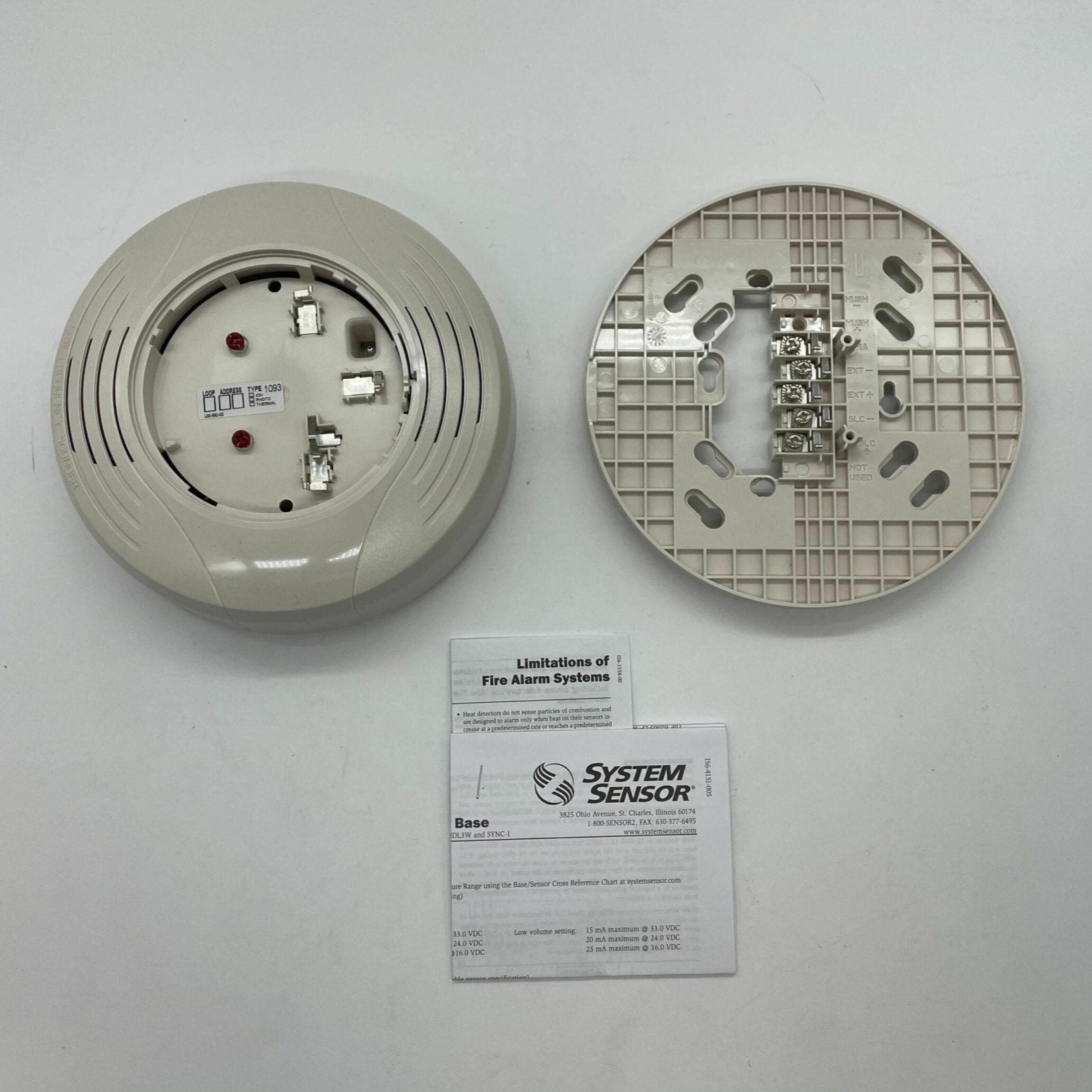

Sleeping areas such as hotel rooms, dormitories and apartments need a low-frequency tone, and the System Sensor B200S-LF-IV intelligent sounder base provides it right at the detector. It produces a 520 Hz square-wave tone designed to meet the NFPA 72 sleeping space requirement. The ivory base picks up the attached sensor's address, so the panel can sound it individually or in groups.
Key Features
- 520 Hz ±10% square-wave tone, a frequency shown to be effective at waking sleeping occupants
- Two volume levels: 75 or 85 dBA
- Continuous, ANSI Temporal 3, ANSI Temporal 4 and March Time tones
- Synchronizes with other System Sensor notification devices
- Pre-wire mounting plate fits various junction box sizes
- Mechanical locking feature prevents removal of the attached sensor head
Specifications
-
Manufacturer: System Sensor
-
Part Number: B200S-LF-IV
-
Color: Ivory
-
External Supply Voltage: 16–33 VDC (VFWR)
-
External Standby Current: 550 µA max.
-
Alarm Current (High): 90 mA max. @ 24 VDC
-
Alarm Current (Low): 20 mA max. @ 24 VDC
-
SLC Operating Voltage: 15–32 VDC
-
Base Dimensions: 6.875" diameter x 2.0" high (less sensor)
-
Humidity: 10%–93% RH non-condensing
-
Standards: UL 268 and UL 464; CSFM 7300-1653:0238
Compatibility
Listed as a compatible intelligent base in Notifier FST-951 Series (FlashScan) literature and in Gamewell-FCI Velociti Series literature for E3 Series, S3 Series and GWF-7075 panels. Confirm compatibility with your panel documentation.
Documents
FAQ
Is a detector head included?
No. The base works with an addressable detector head ordered separately; it adopts the attached sensor's address as a unique device type on the loop.
Does it need separate power?
Yes. It needs an external 16 to 33 VDC (VFWR) supply; alarm current is 90 mA max at 24 VDC on high volume and 20 mA max on low volume.
Does it meet the NFPA 72 sleeping room requirement?
Yes. The B200S-LF produces a 520 Hz ±10% square-wave tone designed to meet the NFPA 72 sleeping space requirement.
Can it synchronize with other notification appliances?
Yes. It recognizes the System Sensor synchronization protocol when connected to a power supply or panel output that generates the sync pulses.
