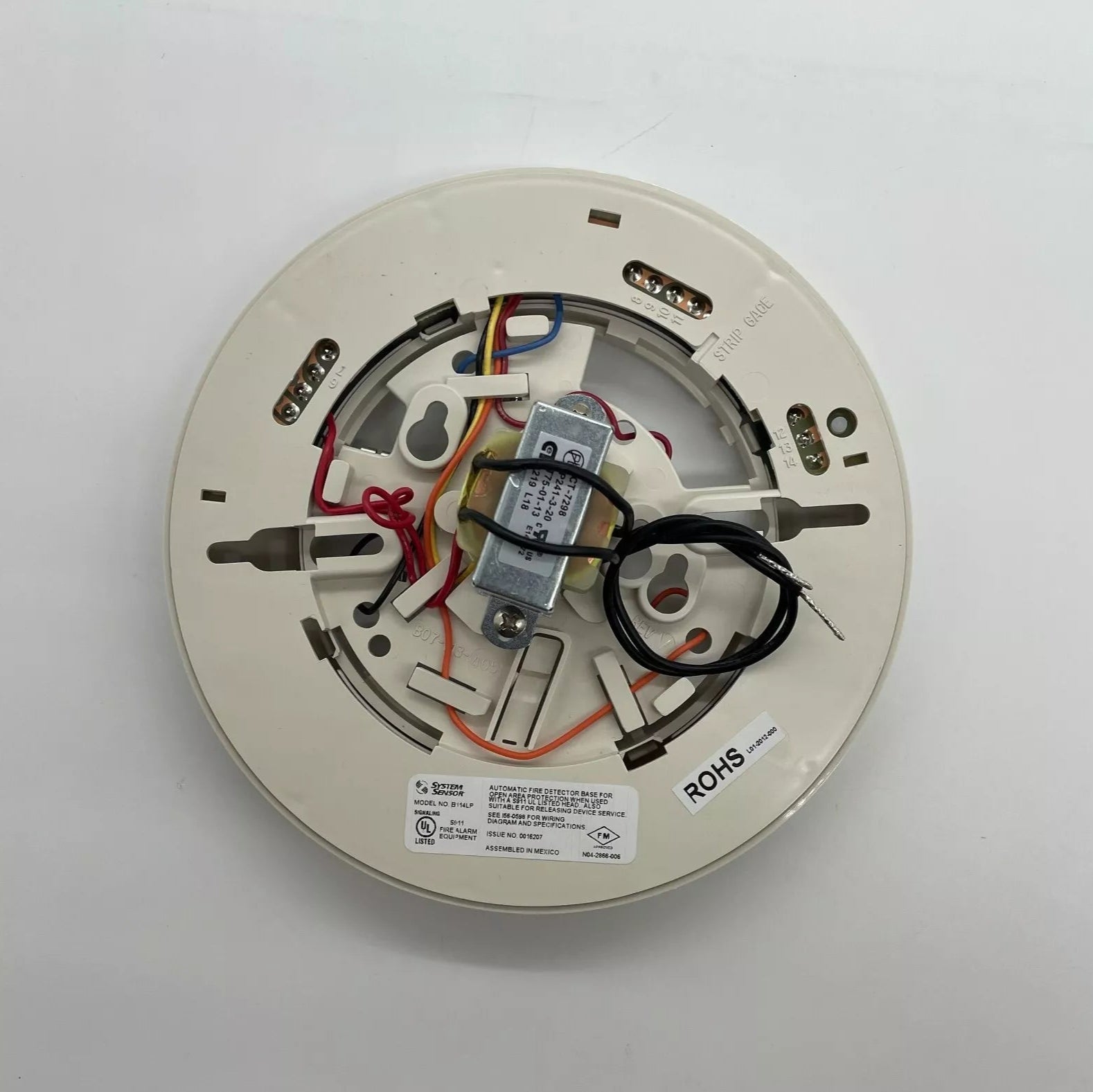

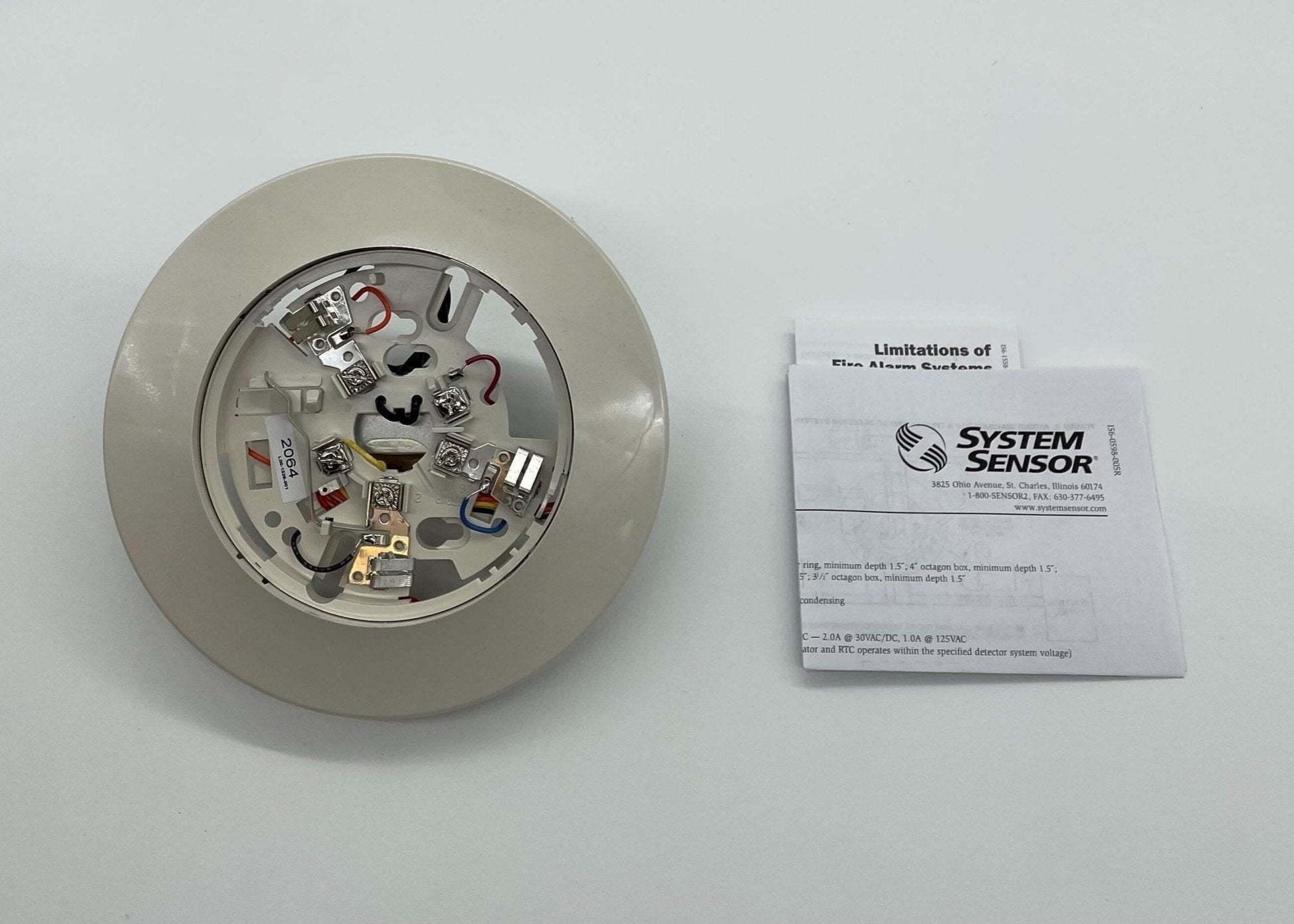

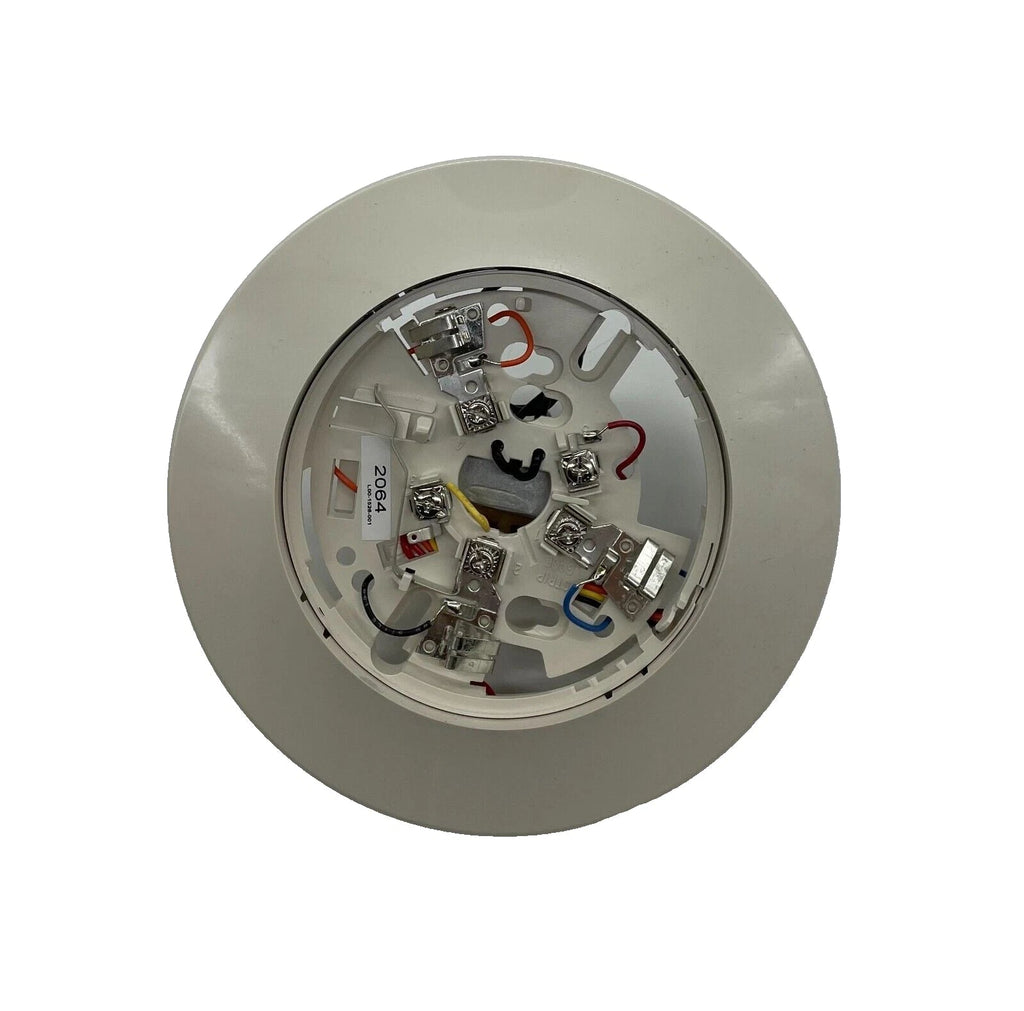

System Sensor B114LP — 120 VAC four-wire relay base for 100 Series plug-in smoke detectors, with Form A and Form C alarm contacts and a Form A supervisory contact.
The base takes the 2151 photoelectric or 2151T photoelectric/thermal detector head and adds alarm relay contacts for auxiliary control, plus a supervisory contact, on a 120 VAC circuit. It includes a current limit resistor and a built-in shorting spring for checking loop continuity before the heads are installed.
Specifications
| Model |
B114LP |
| Loop type |
4-wire |
| Nominal voltage |
120 VAC |
| Alarm current |
75 mA AC maximum |
| Contacts |
Form A and Form C alarm, Form A supervisory |
| Form A rating |
2.0 A at 30 VAC/DC |
| Form C rating |
2.0 A at 30 VAC/VDC; 1.0 A at 125 VAC; 0.6 A at 110 VDC |
| Junction box |
4 in. octagon or 4 in. square |
Installation notes
- For use with System Sensor 100 Series 2151 and 2151T detector heads.
- Not suited to single gang or 3-1/2 in. octagon boxes; use a 4 in. octagon or 4 in. square box.
- Box depth depends on base and wire size; follow the NEC and local codes.
Related models
- B112LP is the 24 VDC four-wire relay base.
- B401 is the flangeless two-wire base.
Documents
FAQ
Which detector heads fit the B114LP?
System Sensor 100 Series 2151 photoelectric and 2151T photoelectric/thermal detectors.
What voltage does it run on?
120 VAC, with 75 mA AC maximum in alarm.
What are the relay contact ratings?
Form A: 2.0 A at 30 VAC/DC. Form C: 2.0 A at 30 VAC or VDC, 1.0 A at 125 VAC and 0.6 A at 110 VDC.
Which electrical boxes can it mount to?
A 4 in. octagon or 4 in. square box. It does not fit single gang or 3-1/2 in. octagon boxes.
