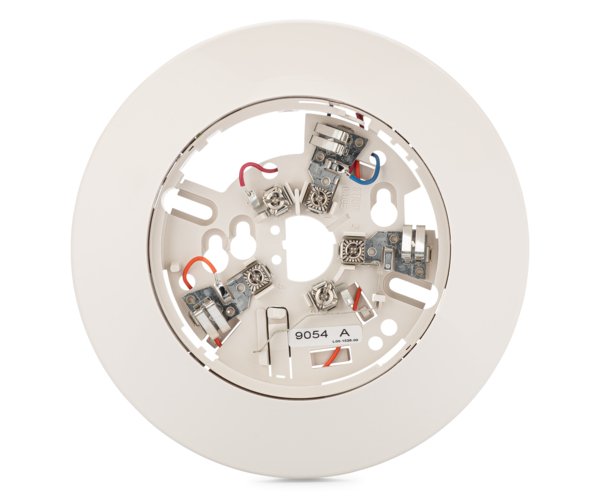

This 4-wire, 24 V plug-in base is the System Sensor B112LP. It works with the 100 Series conventional smoke detector heads and adds Form A and Form C relay contacts plus a current-limit resistor. Integrators use it when a detector must drive auxiliary functions such as fan shutdown, door release or other local control.
Key Features
- 4-wire base with separate power and initiating connections
- Form A and Form C relay contacts with a current-limit resistor
- Screw terminals for power, ground and an optional remote annunciator
- Mounts directly to common octagon and square electrical boxes, with or without plaster rings
Specifications
-
Manufacturer: System Sensor
-
Part Number: B112LP
-
Type: 4-wire relay base, 24 V
-
System Voltage: 24 VDC (standby range 20–29 VDC)
-
Relay Contacts: Form A: 2.0 A @ 30 V AC/DC; Form C: 2.0 A @ 30 V AC/DC, 0.6 A @ 110 VDC, 1.0 A @ 125 VAC (resistive or inductive, 60% PF)
-
Base Dimensions: 6.2" diameter x 0.95" high
-
Mounting: 4" square box (with or without plaster ring), 3-1/2" or 4" octagon box; 1.5" min. depth
-
Operating Temperature: 32°F to 120°F (0°C to 49°C)
-
Humidity: 10% to 93% RH, non-condensing
Compatibility
For use with System Sensor 2151 photoelectric and 1151 ionization detector heads (100 Series).
Documents
FAQ
Which detector heads fit the B112LP?
In the US, the System Sensor 2151 photoelectric and 1151 ionization detector heads.
What are the relay contact ratings?
Form A: 2.0 A at 30 V AC/DC. Form C: 2.0 A at 30 V AC/DC, 0.6 A at 110 VDC, or 1.0 A at 125 VAC (resistive or inductive, 60% power factor).
What boxes can it mount to?
3-1/2 in. and 4 in. octagon boxes, and 4 in. square boxes with or without plaster rings, at least 1.5 in. deep.
What voltage does it need?
24 VDC system voltage, with a standby range of 20 to 29 VDC.
