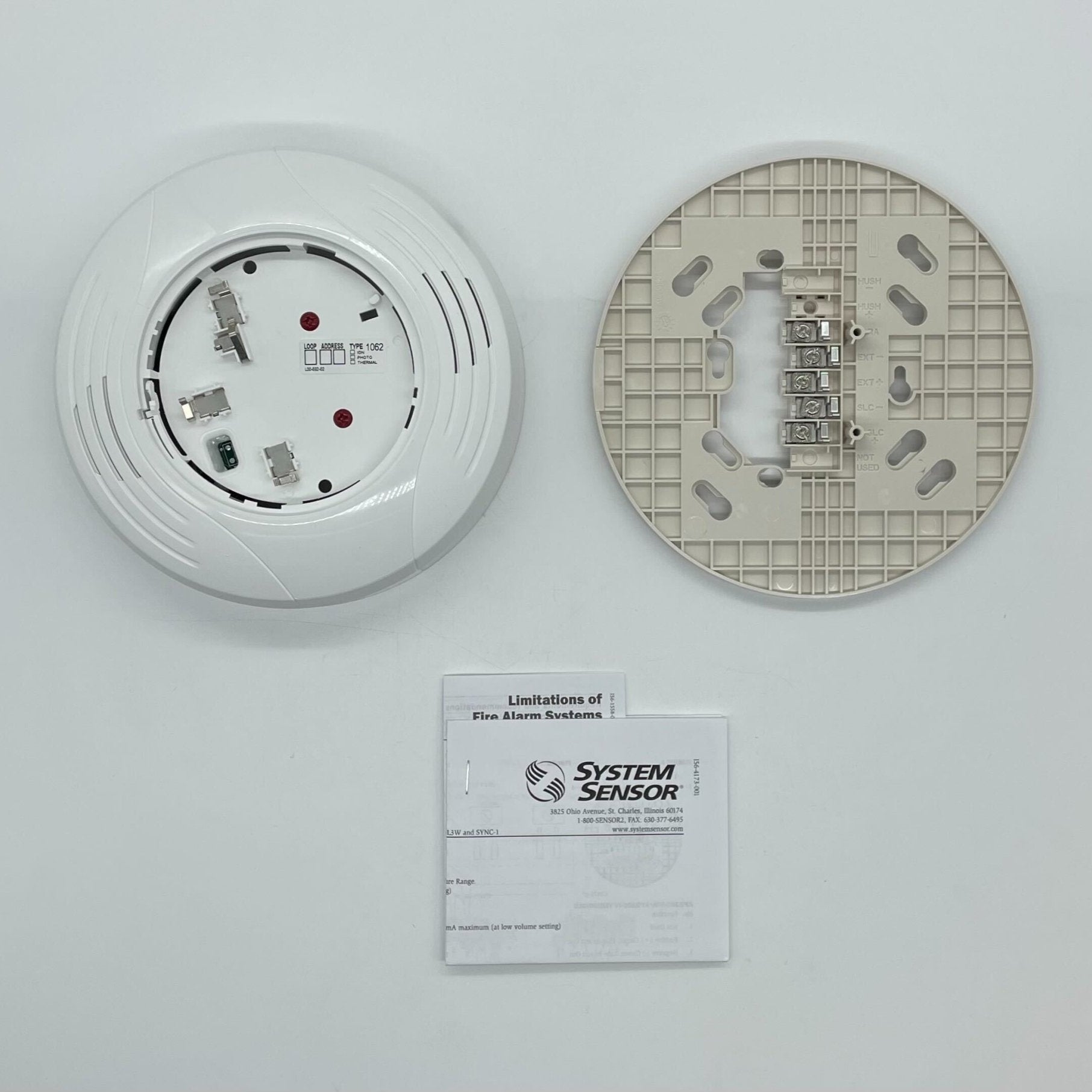

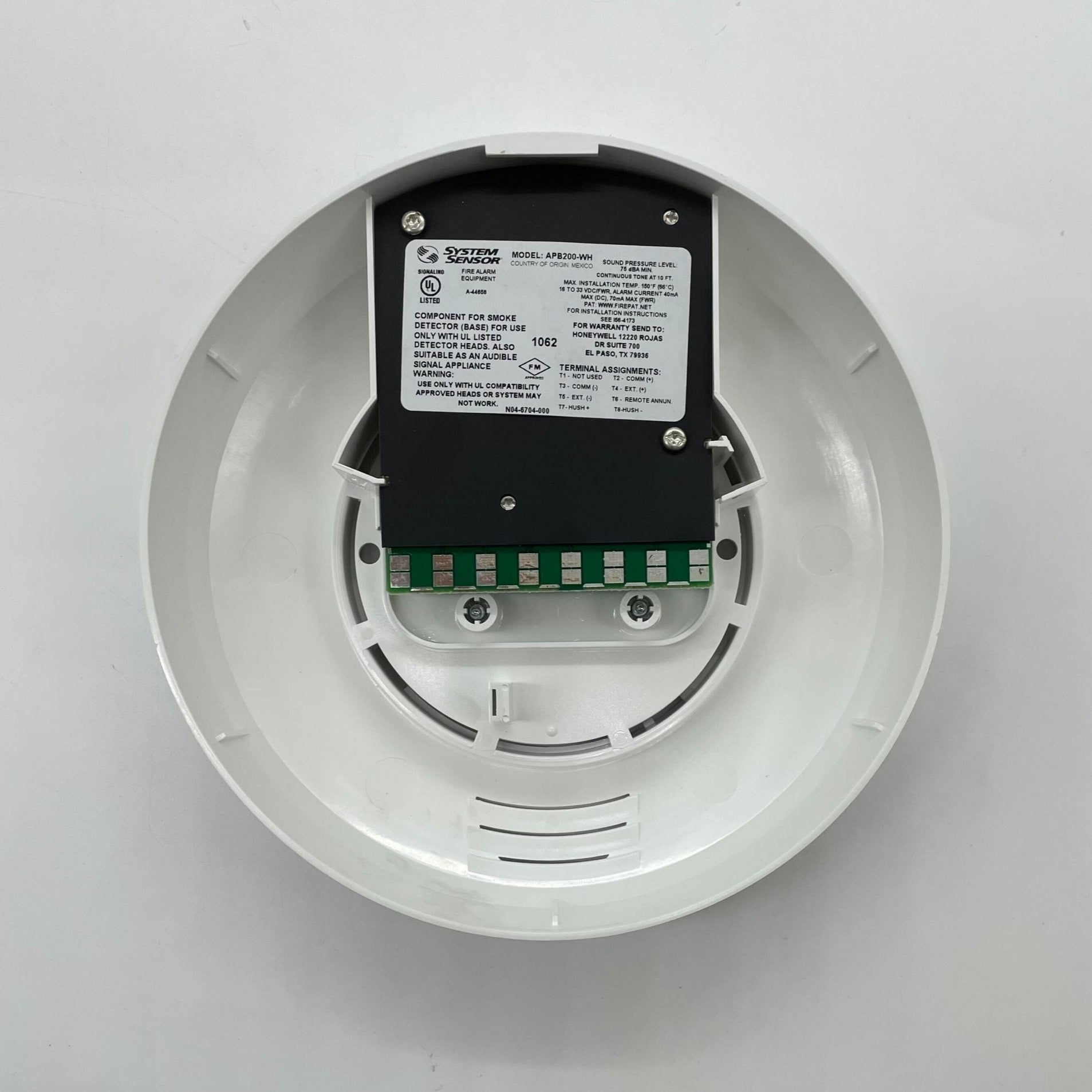

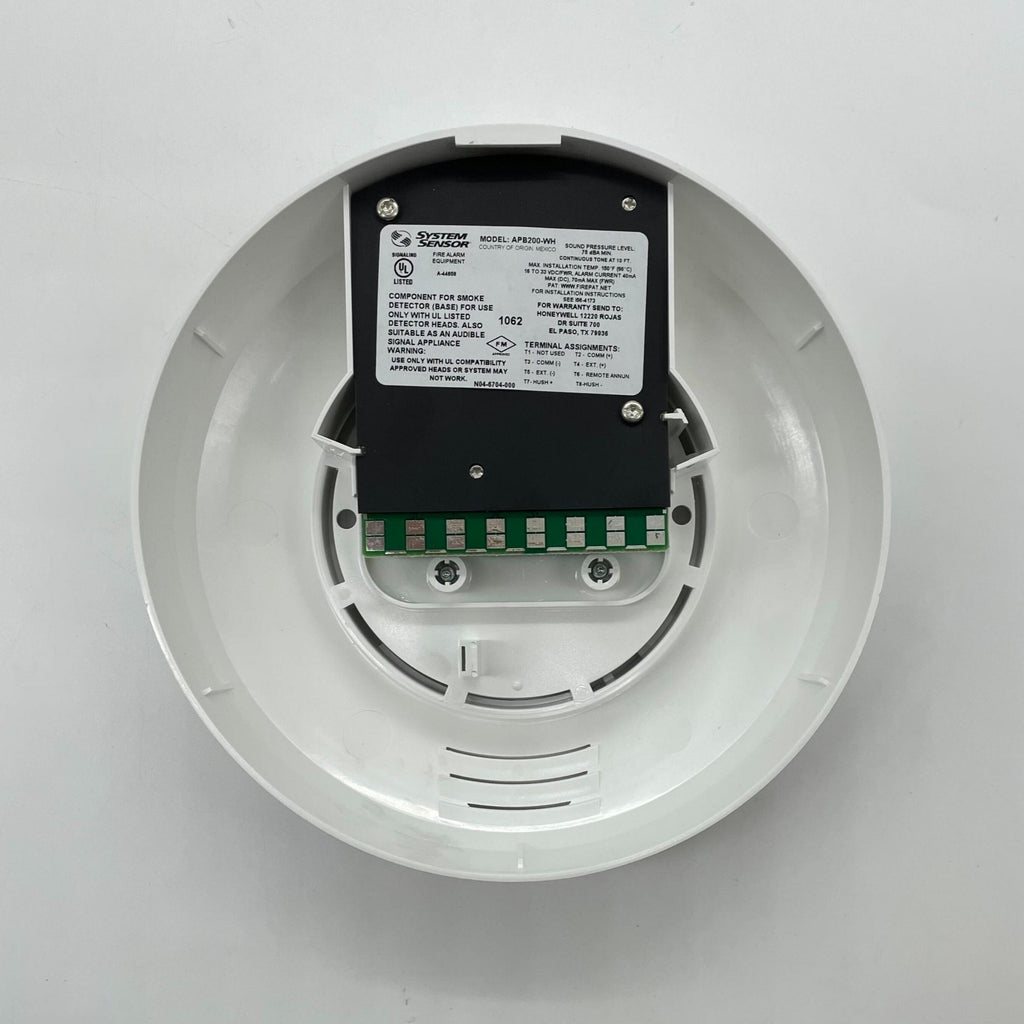

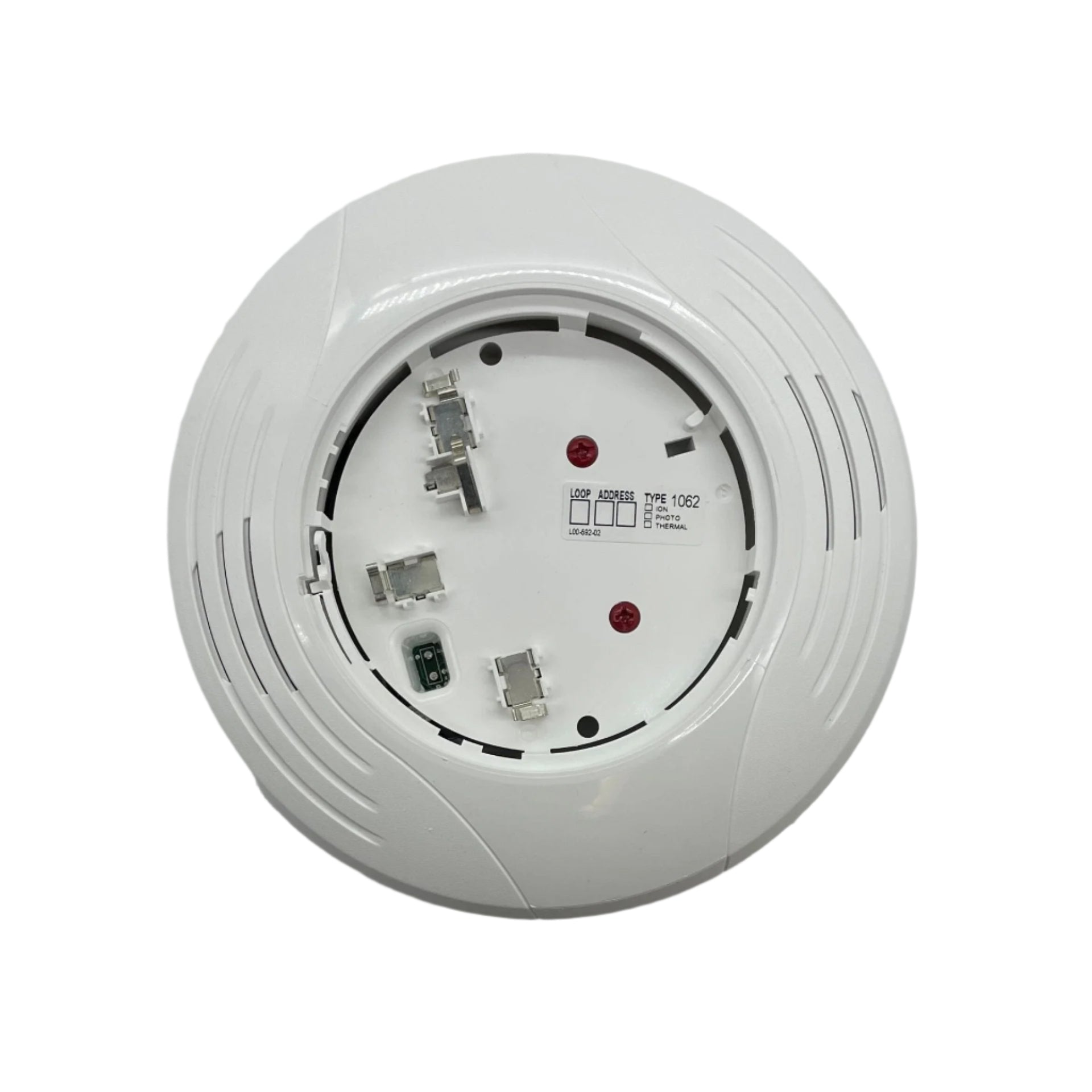

System Sensor APB200-WH is the white intelligent (addressable) sounder base from the APB200 line. It is a detector base with a built-in sounder, made for new and existing dwelling-unit applications with flexible installation, configuration and operation. A detector plugs into the base. Installers use it in apartments, hotels and other dwelling units where a sounder is needed at each detector location.
Specifications
| Product type |
Intelligent sounder base |
| Finish |
White |
| Certifications |
UL 268, UL 464, ULC |
| Synchronization |
System Sensor synchronization protocol |
| Mounting |
Separate pre-wire mounting plate fits various junction box sizes |
| Addressing with MIX-COSAP |
Uses two module addresses |
Features
- Addressable for configuration flexibility
- Multiple event-driven tone outputs
- Panel commands can control volume, tone and group
- Monitors communication between the attached detector head and the fire alarm control panel
- Mechanical locking feature prevents removal of the attached detector head
Compatible with
- Fire alarm control panels
- MIX-COSAP module, required for the two-address configuration
- System Sensor synchronization-protocol horns, horn strobes and chimes on a power supply
