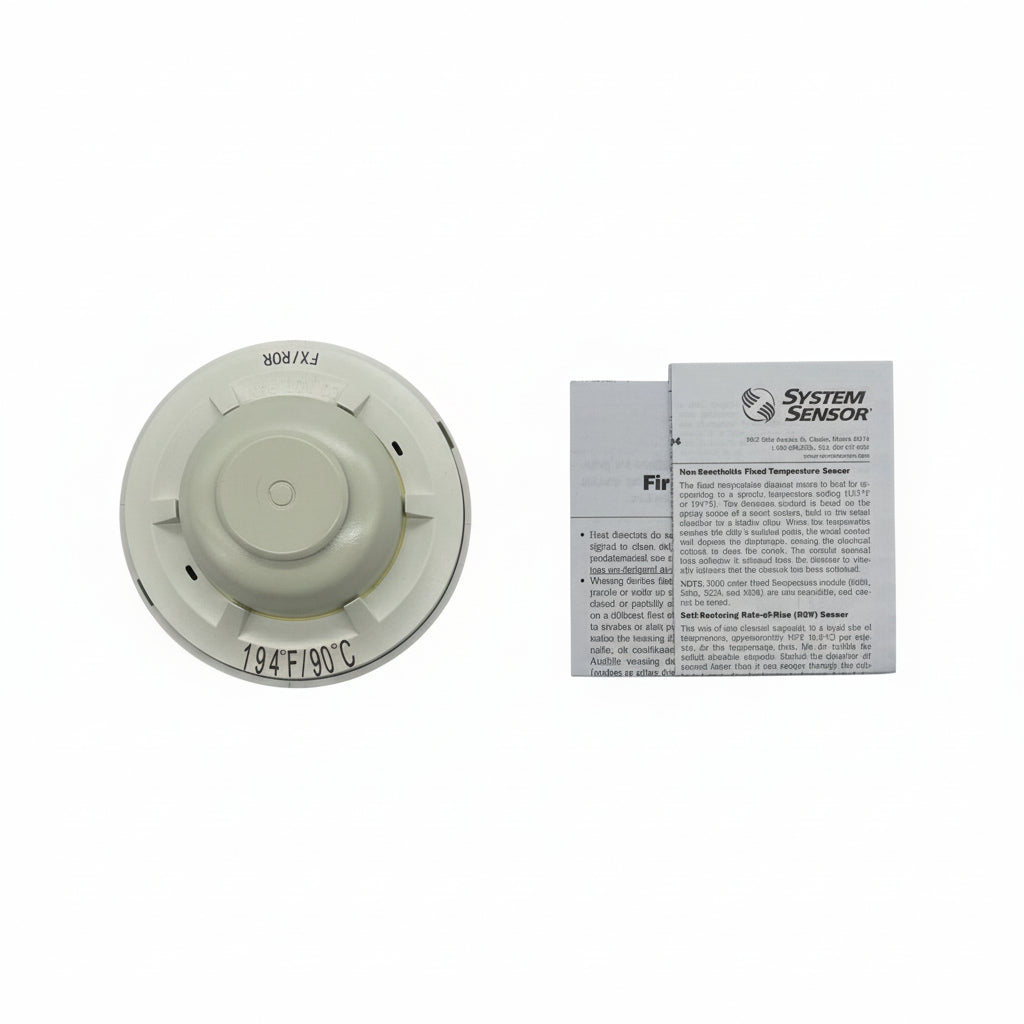

System Sensor 5622 — dual-circuit mechanical heat detector rated 194°F (90°C), with a non-resettable fixed-temperature element and a self-restoring rate-of-rise element.
The 5600 series covers property protection and non-life-safety installations where a smoke detector would be inappropriate, and the 194°F rating suits spaces that normally run hot. The housing is marked FX/ROR, and a collector drops away on activation to flag it in alarm.
- Dual circuit, normally open; alarm temperature 194°F (90°C)
- Rate-of-rise threshold 15°F (8.3°C) per minute, self-restoring and testable with a hair dryer or heat gun
- UL protected spacing 50 feet × 50 feet on a 10-foot ceiling
- Maximum installation temperature 150°F (65.6°C)
- Contacts rated 6–125 VAC / 3 A and 6–28 VDC / 1 A; terminals take 14–22 AWG

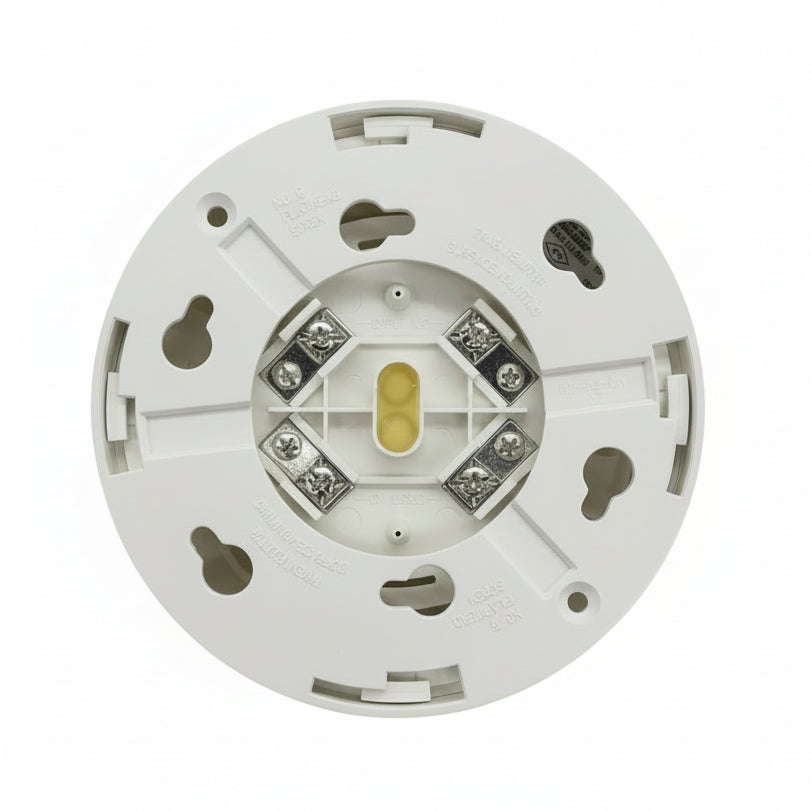

- Reversible bracket for 3-1/2 in. and 4 in. octagonal, single-gang and square boxes
Certified to UL 521. The 5621 is the dual-circuit 135°F twin, limited to a 100°F installed ambient; the 5624 is dual-circuit 194°F fixed temperature only, spaced 25 × 25 feet and not testable; the 5602 is the single-circuit version.
Documents
FAQ
Is the 5622 resettable after an alarm?
Only the rate-of-rise element is restorable, which allows field testing. The fixed-temperature element does not reset, and a collector drops from the unit to mark it as activated.
What spacing does it have?
UL protected spacing is 50 x 50 ft on a 10 ft ceiling. Refer to NFPA 72 for reductions on higher ceilings.
What are the contact ratings?
6–125 VAC at 3 A, 6–28 VDC at 1 A, 125 VDC at 0.3 A and 250 VDC at 0.1 A. Terminals accept 14–22 AWG wire.
What boxes can it mount on?
Single-gang and 3-1/2 in. or 4 in. octagonal boxes, or a 4 in. square box with a square-to-round plaster ring, using the reversible bracket.
