System Sensor 5602 — a single-circuit mechanical heat detector from the 5600 series, rated 194°F (90°C) with combination fixed-temperature and rate-of-rise activation, supplied with a reversible mounting bracket for flush or surface back box installation.
The 5600 series offers a full line of configurations to accommodate a broad range of applications. Both single- and dual-circuit models are available for low- and high-temperature ratings with either fixed temperature or combination fixed temperature/rate-of-rise (ROR) activation. The ROR element of the fixed/ROR models is restorable to accommodate field testing. Alphanumeric characters on the exterior identify the activation method and the temperature rating in Fahrenheit and Celsius, and a post-activation collector drops from the unit when it operates, making the detector in alarm easy to identify. System Sensor’s 5600 series mechanical heat detectors offer a low-cost means for property protection against fire, and for non-life-safety installations where smoke detectors are inappropriate.
Specifications
| Model |
5602 |
| Circuit |
Single |
| Alarm temperature |
194°F (90°C) |
| Activation |
Fixed temperature / rate-of-rise |
| Rate-of-rise threshold |
15°F (8.3°C) rise per minute |
| UL protected spacing (10-foot ceiling) |
50 feet × 50 feet (15.24 m × 15.2 m) |
| Exterior identification |

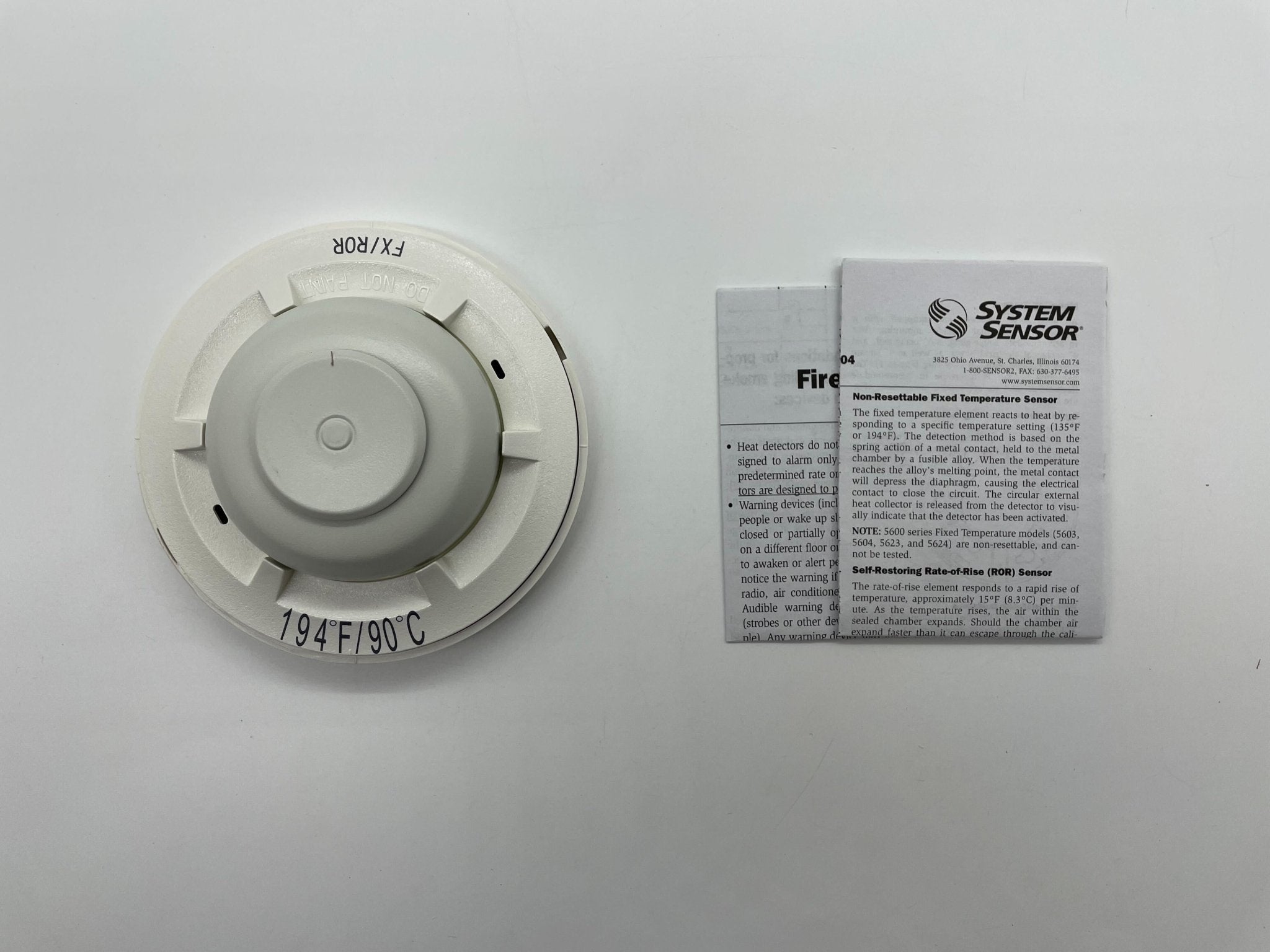

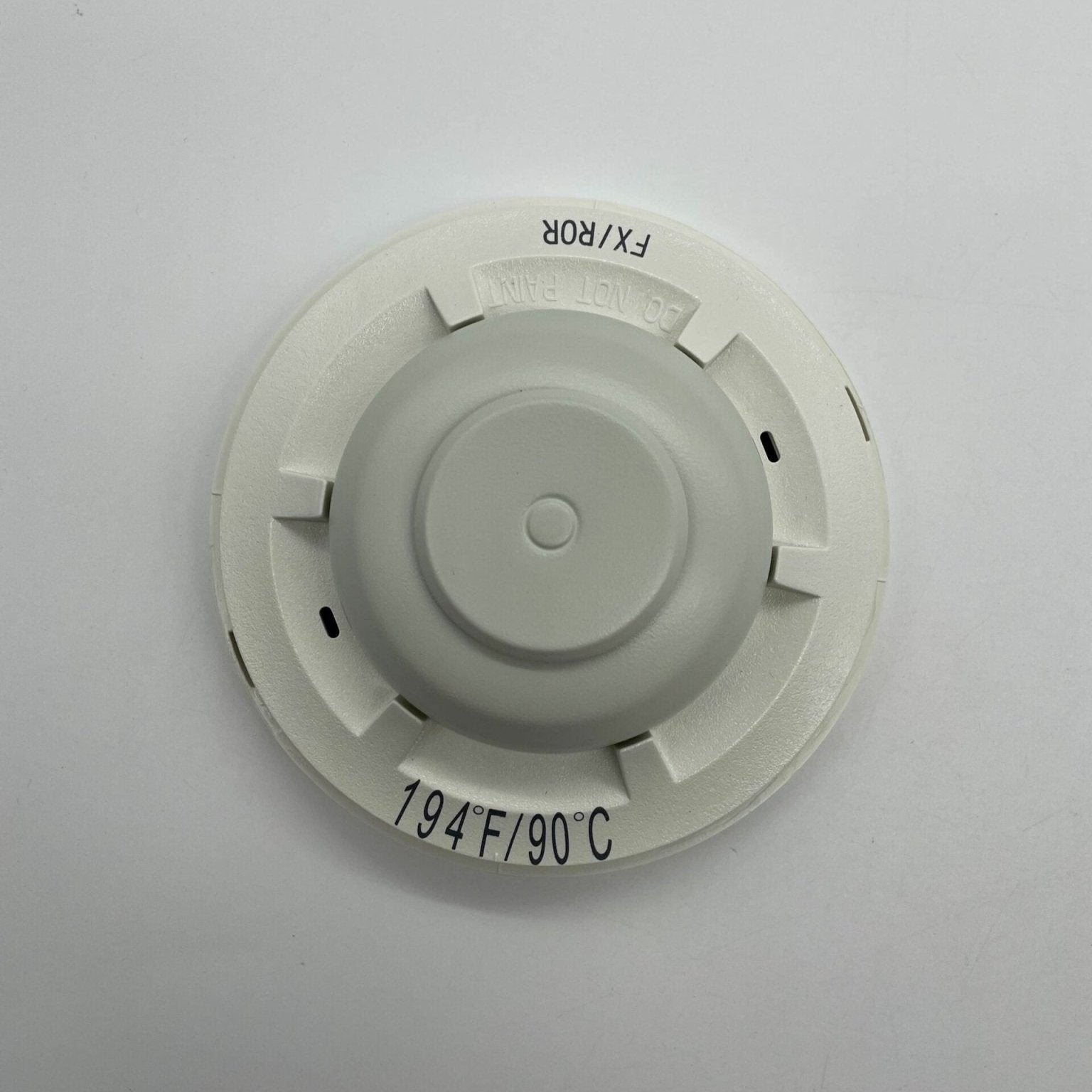

Lettering (marked FX/ROR, 194°F/90°C) |
| Maximum installation temperature |
150°F (65.6°C) |
| Operating humidity range |
5 to 95% RH non-condensing |
| Contact type |
Normally open |
| Operating voltage / contact ratings |
6–125 VAC / 3 A; 6–28 VDC / 1 A; 125 VDC / 0.3 A; 250 VDC / 0.1 A |
| Input terminals |
14–22 AWG |
| Dimensions (with mounting bracket) |
4.57″ diameter × 1.69″ high (11.6 cm × 4.3 cm) |
| Weight |
6 oz. (170 grams) |
| Mounting |
3½-inch or 4-inch octagonal, single gang, or 4-inch square back box with square-to-round plaster ring |
| Listing |
UL 521, Heat Detectors for Fire Protective Signaling Systems |
Installation notes
-
Not a life-safety device: the 5600 series is intended for property protection and for non-life-safety installations where smoke detectors are inappropriate — it is not a substitute for smoke detection.
-
Spacing: the 50 × 50 foot UL protected spacing applies to a 10-foot ceiling. Refer to NFPA 72 guidelines for spacing reductions when ceiling heights exceed 10 feet.
-
Ambient temperature limit: maximum installation temperature for the 5602 is 150°F (65.6°C). The 135°F models in this series are limited to 100°F (38°C).
-
Field testing: the rate-of-rise element is restorable to accommodate field testing.
-

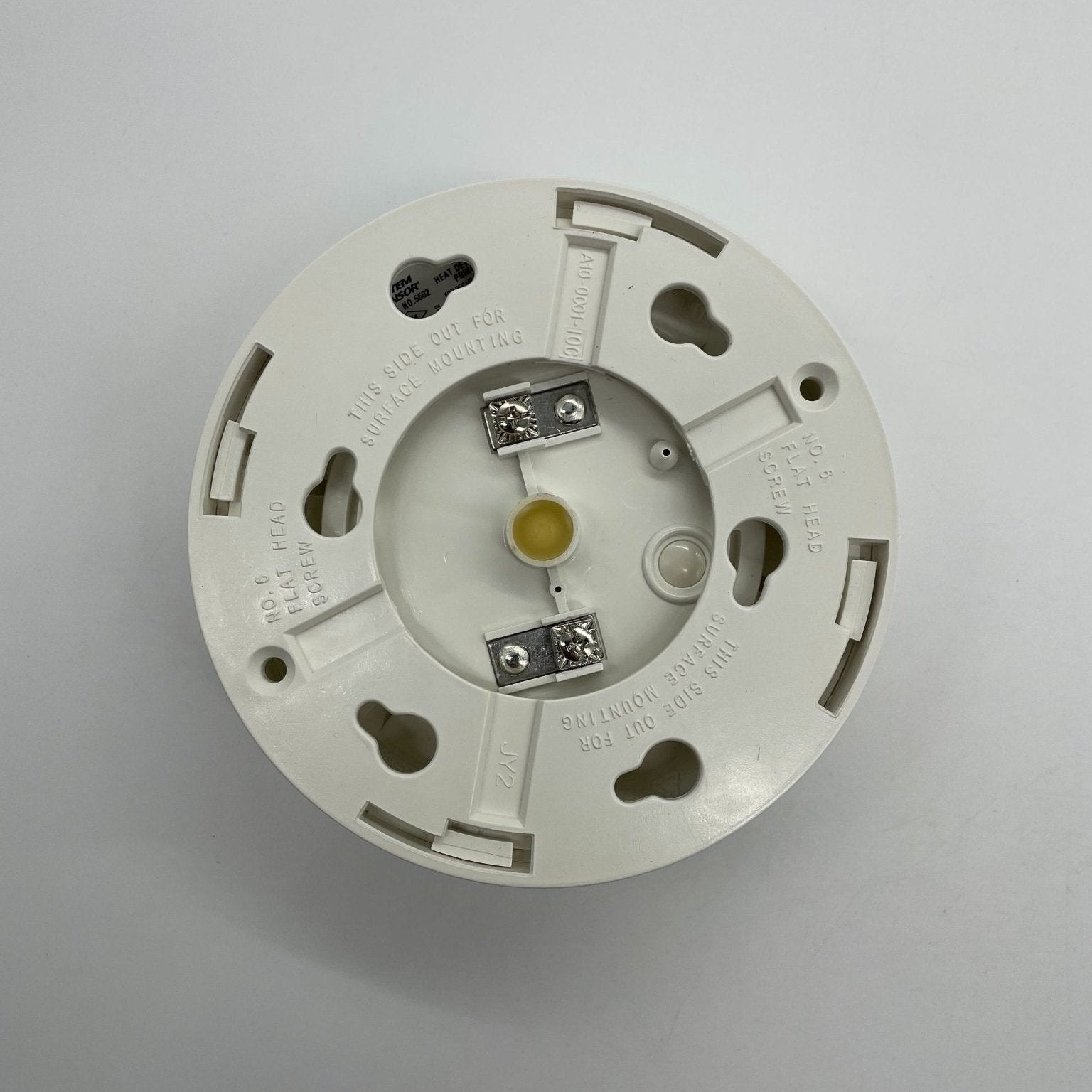

Mounting bracket: the reversible bracket permits both flush- and surface-mount back box installations.
Related models
-
5622 — dual-circuit version of the 5602; same 194°F rating, fixed temperature/rate-of-rise, 50 × 50 foot spacing
-
5604 — single circuit, 194°F, fixed temperature only (no rate-of-rise); 25 × 25 foot spacing
-
5601P — single circuit, 135°F, fixed temperature/rate-of-rise, plain housing with no exterior lettering
-
5603 — single circuit, 135°F, fixed temperature only; 25 × 25 foot spacing
-
5621 / 5623 — dual-circuit 135°F models, fixed/rate-of-rise and fixed temperature respectively
Specifications taken from the System Sensor data sheet “5600 Series Mechanical Heat Detectors,” document SPDS30001 (7/13). Manufacturer specifications are subject to change without notice.
