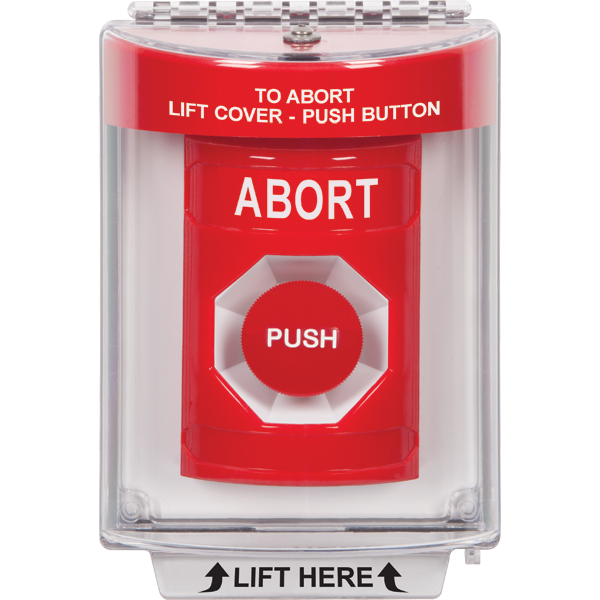

STI SS2034AB-EN is a red momentary Stopper Station push button with a flush-mounted Universal Stopper protective cover and a raised ABORT label in English. It is described for indoor and outdoor use.
The push button sits in a curved shell, and the cover helps protect it from damage and accidental activation.
Features
- Momentary push button activation
- Raised ABORT label (English)
- Flush-mounted Universal Stopper protective cover
- Interchangeable or replaceable N.O. or N.C. SPST gold-plated contact blocks
- Standard switch includes one N.O. and one N.C. contact; holds up to three isolated contacts
- UL/cUL Certified and ADA compliant
Specifications
| Color |
Red |
| Activation |
Momentary |
| Label |
ABORT (English) |
| Mounting |
Flush |
| Contact rating |
6 A @ 600 VAC or 1 A @ 250 VDC |
