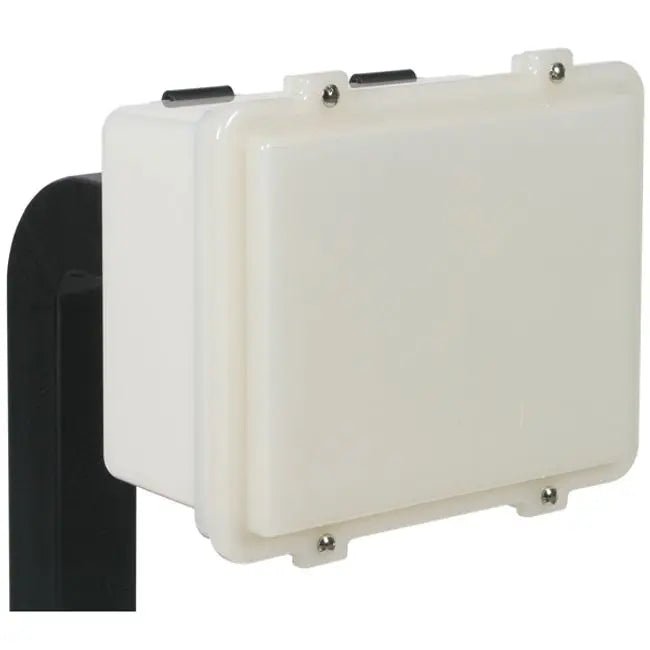

STI STI-7516A — pedestal-mount access control housing with the deeper A back box.
Card readers, keypads, intercom stations and gate controls mounted on a gooseneck or bollard pedestal sit out in the weather at a gate or garage ramp, collecting dirt and grime and taking the occasional knock. This is a sealed polycarbonate housing that encloses the device and fixes to the pedestal rather than to a wall. The A box is the deep option, for controls that need room behind the faceplate.
- Sealed, water resistant multipurpose housing
- Moulded from thick polycarbonate
- A back box gives 4.12 in. (104 mm) of depth
- Built for pedestal mounting and supplied with the adapter plate
- Mounting hardware included
- Polycarbonate working properties -40° to 250°F (-40° to 121°C)
Four part numbers in this series look alike. The STI-7516F is the same pedestal housing with the shallow F back box at 2.0 in. (50 mm). The STI-7515A and STI-7515F are the wall-mount versions, carrying four mounting tabs instead of the adapter plate.
