STI STI-4100 — large Break Glass Stopper protective cover for manual pull stations.

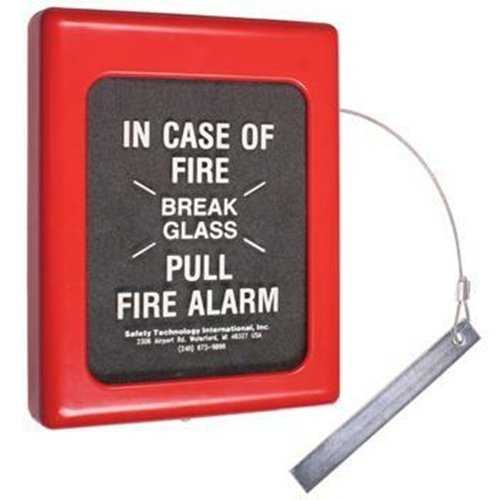

Where a specification calls for break glass rather than a hinged cover, this is the STI Stopper II version that answers it: a red polycarbonate cover held over a mounting frame by a pane of single-strength clear glass, so the station stays visible but cannot be pulled until the glass is broken with the tool inside the frame. It is the larger of the two fire models, and the kit is cover, frame, glass, tool and hardware, with no electronics. Obtain local fire marshal approval before installing.
- Frame opening 5.39 × 6.84 in. (136 × 173 mm)
- Cover 9 in. (229 mm) high, projecting 1.5 in. (38 mm)
- Mounting hole pattern 6.25 × 4.96 in. (159 × 126 mm)
- Polycarbonate working range -40° to 250°F
- Three year guarantee against polycarbonate breakage
- Replacement glass KIT-10; break-glass tool KIT-08
The 4100 is STI size coding, not the Simplex 4100 panel. STI-6100 is the small cover, STI-4130 the surface-mount version on the KIT-900-R conduit spacer, STI-4100EM the Emergency version and STI-6700 the generic BREAK GLASS model.
