Space Age SSU00689 is a red System Record Documents enclosure for storing fire alarm system records at the control unit or another approved location, with built-in digital storage.

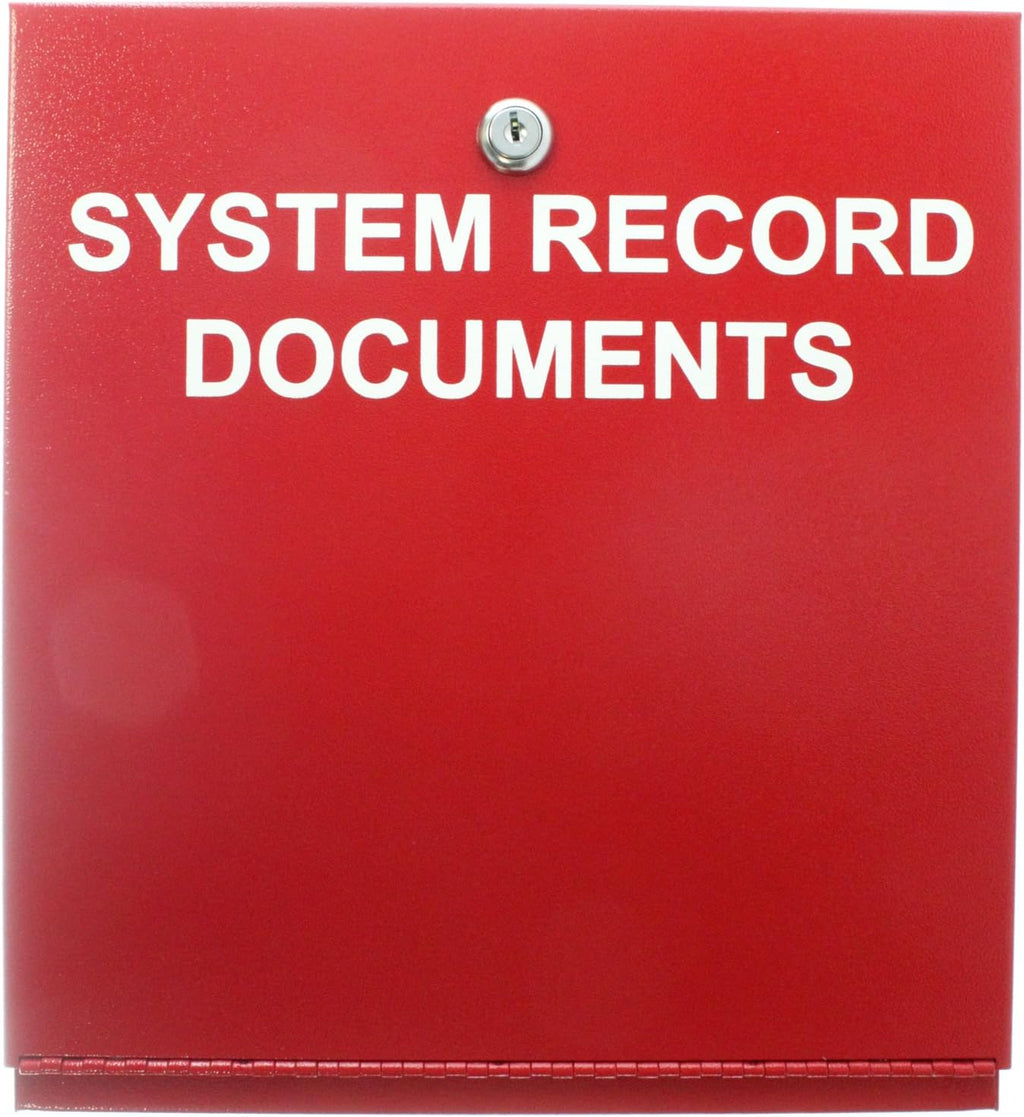

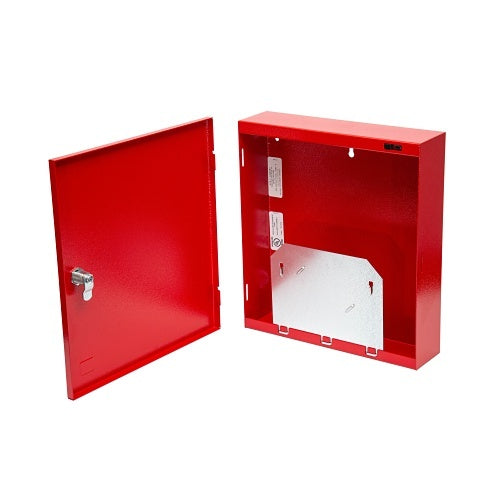

The cover is permanently screened with 1 in. white lettering reading SYSTEM RECORD DOCUMENTS, and the door locks with a 3/4 in. barrel lock on a liftaway hinge. Inside, a removable document holder takes standard 8-1/2 x 11 in. manuals, three-ring binders and records, with two key ring hooks and a business card bracket for key contacts. An 8 GB flash drive with a slide tab selects a USB-C or Micro USB connector, so records can also be accessed electronically.
Specifications
| Model |
SSU00689 |
| Cover text |
System Record Documents |
| Color |
Red powder coat, white lettering |
| Construction |
18 gauge cold rolled steel |
| Dimensions |
12 in. W x 13 in. H x 3 in. D |
| Lock |
3/4 in. barrel lock, liftaway hinge |
| Digital storage |
8 GB flash drive, USB-C or Micro USB |
| Mounting |
4 mounting holes, hardware not supplied |
| Certification |
UL certified |
Features
- Built for NFPA 72 7.7.2.1, 7.7.2.3, 7.7.2.5 and 23.2.2.1
- Electronic record access per NFPA 72 7.5.6.7.1 and 7.5.6.7.2
- Removable document holder for letter-size manuals and binders
- Two key ring hooks and business card bracket
Related models
- SSU01689: System Record Documents box, black, with USB storage
- SSU00685: Fire Alarm Documents box, red, with USB storage
- SSU00672: Fire Alarm Documents box, red, no USB storage
Documents
FAQ
Which NFPA 72 requirements is it built for?
Space Age states the cabinet is built for NFPA 72 sections 7.7.2.1, 7.7.2.3, 7.7.2.5 and 23.2.2.1. The flash drive supports electronic record access under 7.5.6.7.1 and 7.5.6.7.2.
What fits inside?
Standard 8-1/2 x 11 in. manuals, three-ring binders and document records. It also has two key ring holders and a bracket for business cards.
Does the SSU00689 include USB storage?
Yes. It includes an 8 GB flash drive with a slide tab that selects a USB-C or Micro USB connector.
How is it mounted?
Mark and drill the wall through the 4 mounting holes in the back box, then fasten it with suitable hardware. Mounting screws are not supplied.
