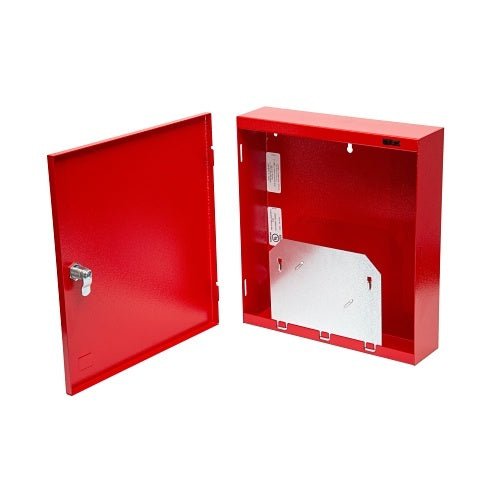

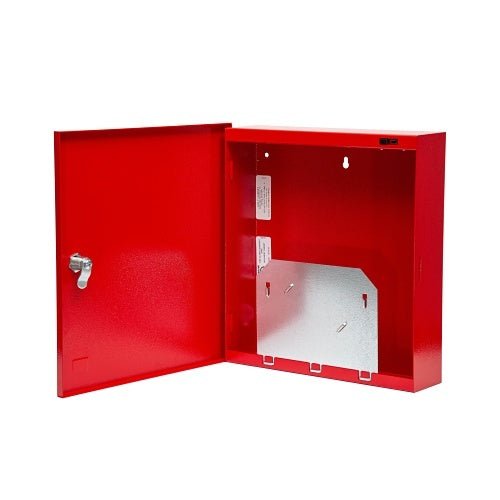

Space Age SSU00672 — the FDB Fire Document Box, a 16 gauge red steel cabinet for keeping fire alarm record documents at the panel.
NFPA 72 requires the system record documents to live in a cabinet prominently labelled FIRE ALARM DOCUMENTS, and that is what this is. A removable galvanized sleeve inside holds the paperwork; lift it out on its two wing nuts and the space takes a 1.5 in. three ring binder instead.
- Overall dimensions 12" wide × 13.1" high × 2.25" deep
- 16 gauge cold rolled steel, red powder coat, white lettering
- Piano hinged door with a high security lock, 3/4" barrel
- Sleeve holds 1" of 8.5 × 11 in. paperwork, with two key ring hooks, a business card holder and a CD jewel case slot
- Supplied with a 1.4 oz. can of detector test smoke; replacement is CK1
- Notes label inside the door for AHJ approvals and system codes
SSU00673 is the same box with a custom logo and lock, quoted on form FD10498 rather than stocked, and SSU01672C is the black version. The SDB system document box and the SRD record documents enclosure with USB memory are different enclosures in the same family.
Documents
FAQ
What is the SSU00672?
It is the red Space Age document enclosure with the cover text FIRE ALARM DOCUMENTS, without custom screening and without USB storage.
Is there a version with USB storage or custom screening?
Yes. Space Age lists SSU00685 with USB storage, SSU00673 with custom screening, and SSU00686 with both.
What does it hold?
Standard 8-1/2 x 11 in. manuals, three-ring binders and document records, plus two key ring holders and a spot for business cards.
