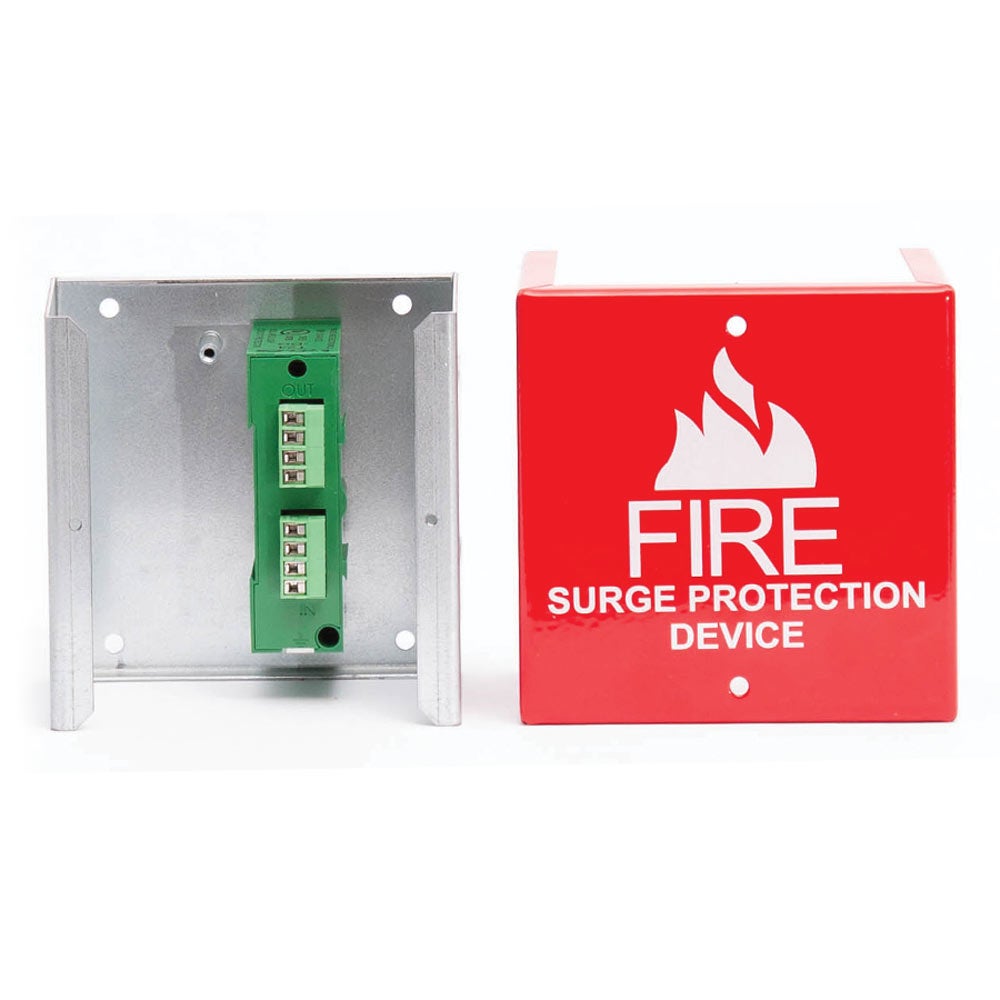

Space Age SSU00668 is the Eclips 2 surge box with fire marking, a red clamshell enclosure measuring 4.37" x 4.37" that holds two T-series low voltage surge protection devices.
It suits tight spots where low voltage circuits need surge protection under the NFPA 72 and NFPA 70 sections cited in the product data. The cover carries factory wording that identifies the cabinet use for circuit identification. T-series protectors and their mounting hardware are ordered separately, by the voltage type needed.
Features
- Red 18-gauge powder-coated cover with required identification wording
- Clamshell-style assembly secured with screws
- Mounting studs for up to two T-series surge protection devices
- Four 1/2"-3/4" conduit knockouts
- 18-gauge galvanized backplate
Specifications
| Color |
Red |
| Size |
4.37" x 4.37" |
| Cover |
18-gauge, powder coated |
| Backplate |
18-gauge, galvanized |
| Capacity |
Two T-series SPDs (sold separately) |
