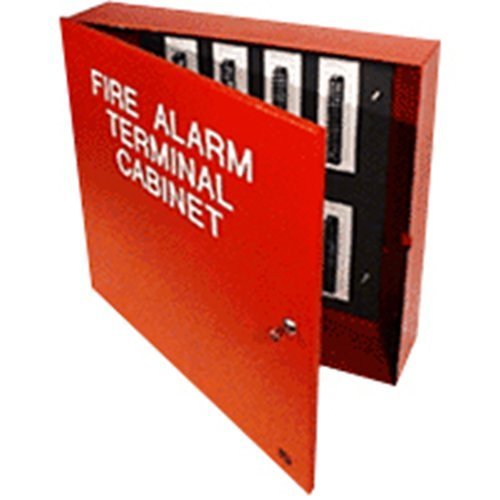

Space Age SSU00651 — TC Series fire alarm terminal cabinet, size A, 64 termination points, red, with a keyed lock.
A terminal cabinet gives field wiring a marked, accessible junction instead of splices above a ceiling, so a technician can isolate a circuit at a labelled terminal. Space Age screens FIRE ALARM TERMINAL CABINET across the cover in white indelible lettering and labels the interior to match the strips in the back box.
- 64 high-barrier termination points, included
- 23-1/2 in. W × 13 in. H × 5-1/2 in. D, size A in the series
- 16 gauge cold rolled steel with a red powder coat finish
- Terminal points rated for 12 gauge wire; strips rated 20 A at 250 V Class B/UL and 300 V CSA
- Removable lift-away hinged cover, keyed lock, standard EMT knockouts
- UL Listed under category UOXX, file S2580; series satisfies NEC 760.30
The series is ordered on one grid, so neighbouring numbers transpose easily. SSU01651 is this cabinet in black; SSU00653 the size D, 128-point at 23-1/2 in. square; SSU00645 the size 2, 32-point. A trailing C, as in SSU00651C, selects custom branding.
