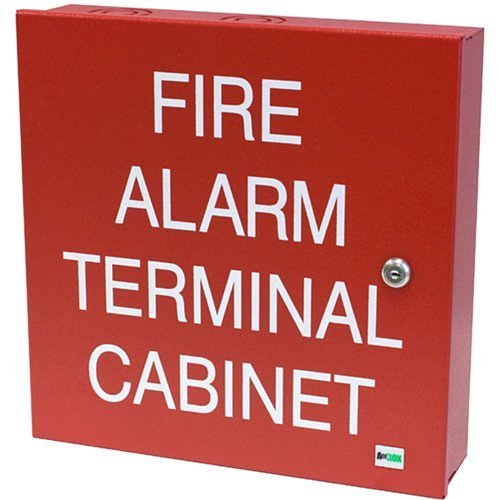

Space Age SSU00645 TC2 TC-Series Terminal Cabinet, 14" x 14" x 1/4" D, Keyed Lock, Red
TC Series size 2 fire alarm terminal cabinet with 32 high barrier termination points in a red powder coated steel enclosure with a keyed lock. It gives a labeled junction point for fire alarm wiring to help with troubleshooting and maintenance.
Key Features
- 16 gauge cold rolled steel construction
- Powder coat finish
- "FIRE ALARM TERMINAL CABINET" in white screened lettering on the cover
- Removable lift-away hinge door
- Field identification labels inside the cover matching the terminal strip labeling
- High barrier terminal points rated for 12 gauge wire
- Standard EMT knockouts
- Keyed lock
Specifications
| Terminations |
32 |
| Size |
2 |
| Color |
Red |
| Dimensions |
14" W x 14" H x 3.25" D |
| Lock |
Keyed |
| Terminal strip rating |
20 A max, 250 V (Class B/UL), 300 V (CSA) |
| Wire size |
Up to 12 gauge |
| Agency approval |
UL Certified Control Unit Accessories (UOXX.S2580) |
