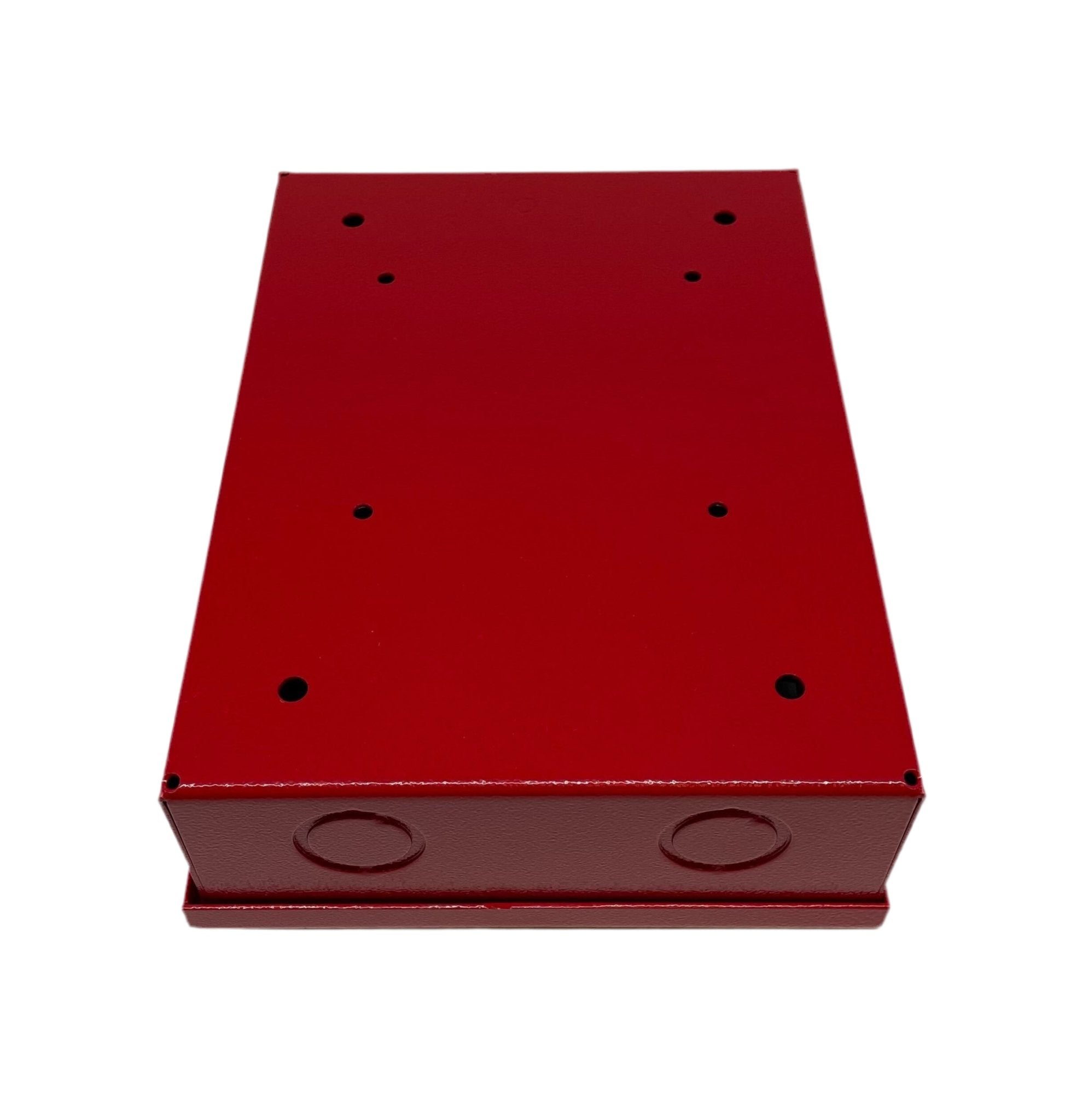

Space Age SSU00636 is the IF1 IF-Series terminal cabinet, a red steel surface-mount enclosure measuring 6-1/2 in. wide by 8-5/8 in. high by 2-1/2 in. deep. It closes with a thumb screw lock and is made for fire alarm wiring terminations.
The door is a lift-away hinged type with a captive fastener, and the cabinet carries tool-less terminal blocks. Individual test ports take the TTS test probe, which suits maintenance and troubleshooting.
Features
- 16 gauge cold rolled steel with a red textured baked-on powder coat (red or black finishes are offered in the series)
- Lift-away hinged door with captive fastener
- White 7/8 in. lettering reading FIRE ALARM TERMINAL CABINET
- Supplied with SAE tool-less terminal blocks
- Test ports for use with the TTS test probe
- Field identification label
- Standard EMT knockouts
Specifications
| Series |
IF-Series, IF1 |
| Material |
16 gauge steel |
| Finish |
Red powder coat |
| Width |
6-1/2 in. |
| Height |
8-5/8 in. |
| Depth |
2-1/2 in. |
| Mounting |
Surface |
| Lock |
Thumb screw |
