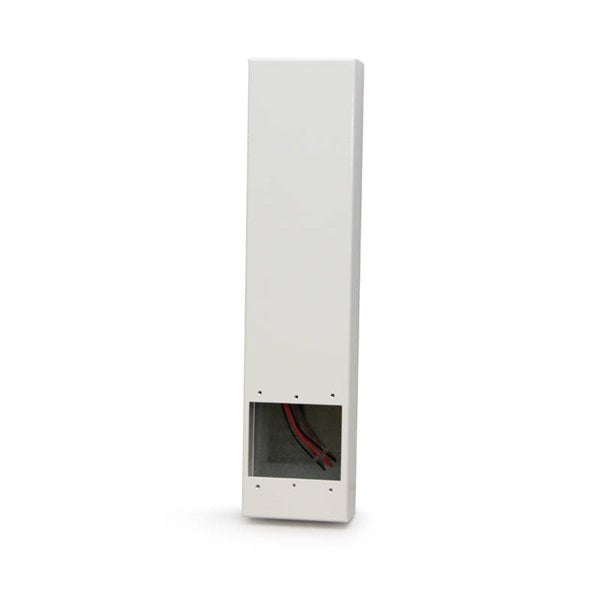

Space Age SSU00595 is a DAR device appliance relocator in beige. It lowers an existing fire alarm pull station or notification appliance by about 12 inches to help meet ADA requirements.
The device is lowered without changing finished walls, moving the existing back box or pulling new wires. To install, remove the existing device from its back box, attach the relocator back plate to that box, connect the wires and fit the cover.
Features
- Moves a device or appliance approximately 12 in.
- Dimensions: 4 in. wide x 17 in. high x 1-3/4 in. deep
- 16 gauge cold rolled steel with a matte powder coat beige finish
- Raised clamp, high barrier terminal strip
- 18 gauge stranded extension wires
- Wall mounting holes and hardware supplied
Specifications
| Product type |
Device appliance relocator |
| Height |
17 in. |
| Width |
4 in. |
| Depth |
1-3/4 in. |
| Material |
16 gauge cold rolled steel |
| Finish |
Beige matte powder coat |
| Move distance |
About 12 in. |
