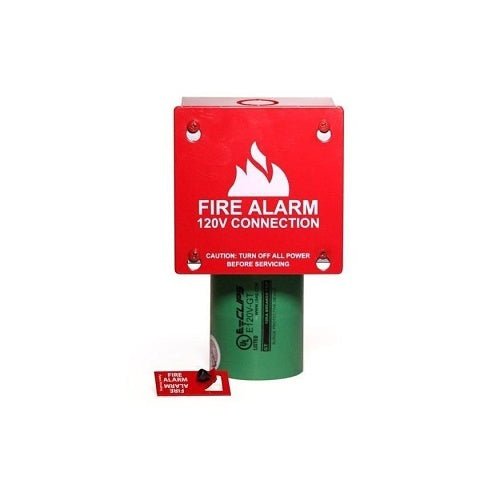

Space Age SSU00468 PPS Panel Power Surge Protection Kit 120V
All 120 VAC equipment will have Transient Voltage Surge Suppression (TVSS) protection manu factured by Space Age Electronics, Inc., part number E120V-GT. The unit shall have thermal fuses to protect against fire in short circuit conditions. The enclosure will be a non dielectric material UL94 QMFZ2/8 grade material providing UV protection. The unit shall provide visual indication (LED) that unit is protecting and functioning.
Key Features
- E120V-GT mounted to a 4”
- 10KA Short Circuit
- Diagnostic indicator light
Specifications
| Model |
SSU00468 |
| Short Circuit Current Rating (SCCR) |
10kA |
| Enclosure Material |
UL94 QMFZ2/8 (green) |
| Clamping Response Time |
< 5 nanoseconds |
| Current |
Non-Load Bearing |
| Max Operating Voltage (MCOV) |
140VAC, 50/60 Hz |
| Design |
Thermally Fused Hybrid |
| Operation Indicators |
LED |
| Max Surge Current |
25kA |
| Energy Dissipation |
500J |
| Clamping Voltage |
230V RMS |
| Service Voltage |
120VAC Single Phase |
| Circuits Protected |
L-N L-G N-G |
| Connection Type |
Hardwired |
