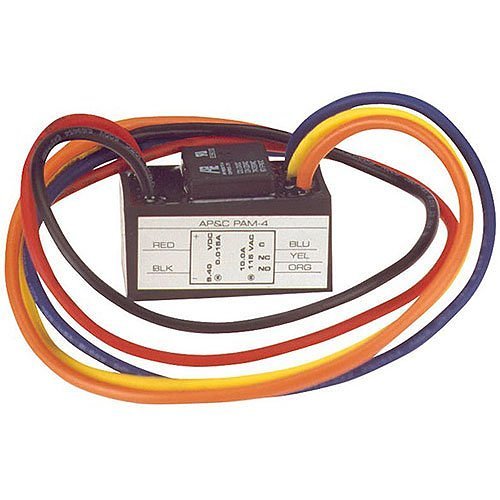

Space Age SSU-PAM-4 is a PAM Series multi-voltage encapsulated relay with form C (SPDT) contacts rated 10 A and a 12 to 40 VDC coil range. It has flying leads for field wiring.
PAM relays suit remote relay applications such as control or status feedback in HVAC, temperature control, fire alarm, security, energy management, lighting control and building automation systems. Each is packaged with a self-tapping screw, double-sided tape and wire nuts.
Features
- 10 A form C contacts
- Encapsulated, multi-voltage design
- Flying leads
- Polarity sensitive and diode protected
- Self-tapping screw, double-sided tape and wire nuts included
Specifications
| Type |
Encapsulated multi-voltage relay |
| Contacts |
Form C (SPDT), 10 A |
| Coil voltage |
12 to 40 VDC |
| Height |
1.5 in. |
| Width |
1 in. |
| Depth |
0.9 in. |
