Space Age SSU-MR-818/T Relay (Q8)TRCK 24 VAC/DC 120VAC 10A Polarized

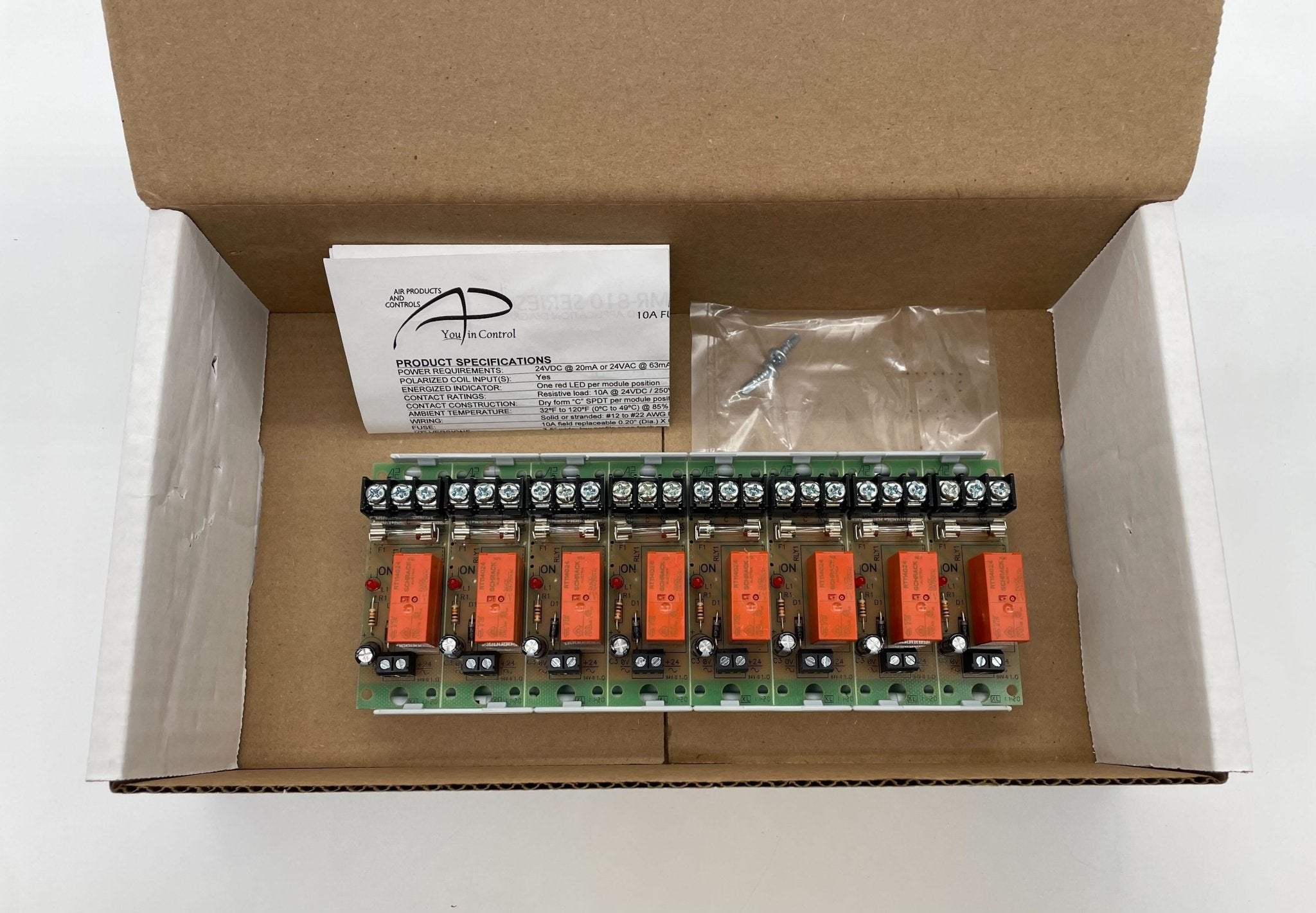

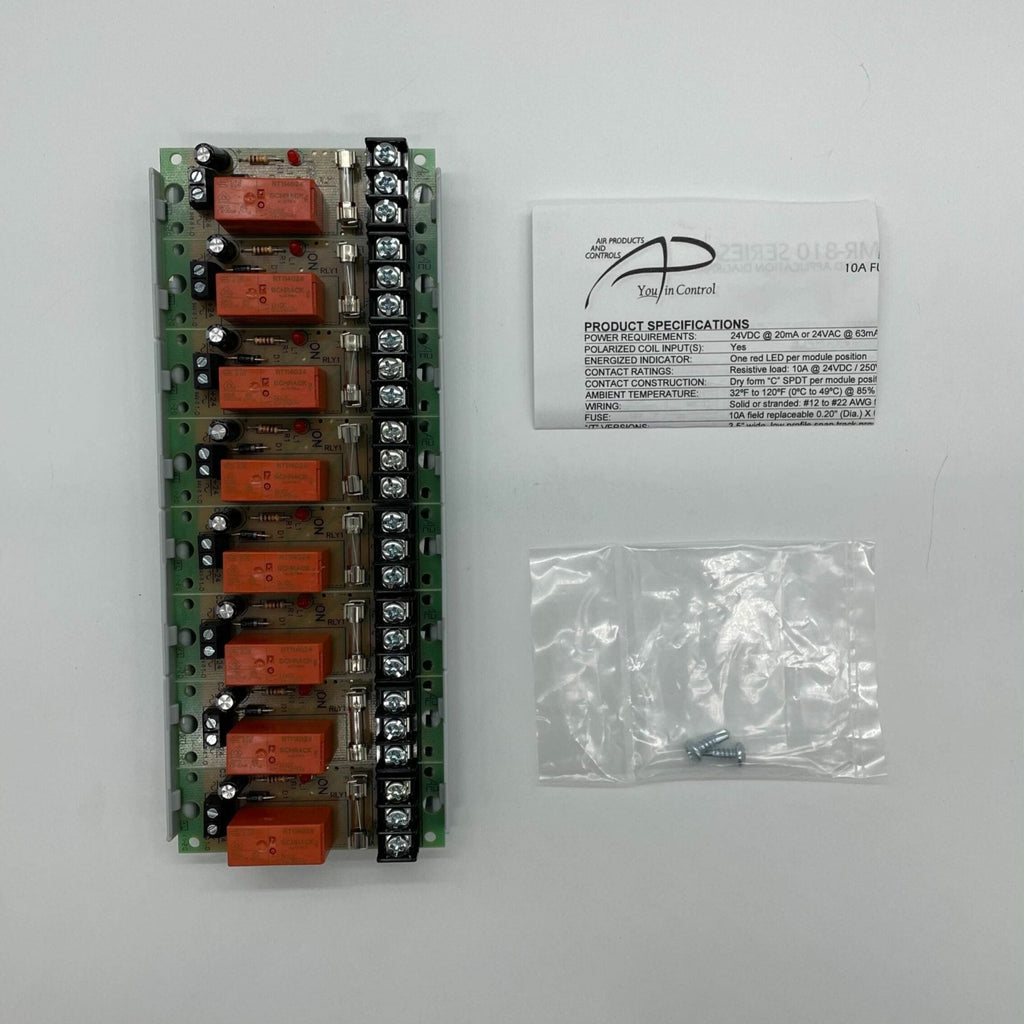

Eight-position MR-810 Series relay module on snap track. Each position is an SPDT relay with a 10 A fuse on the common contact, a polarized diode-protected control input and a red LED that lights when the coil is energized. Positions can be snapped apart from the 8-module assembly and used on their own.
Key Features
- 8 relay positions, SPDT (Form C) contacts each
- 10 A field replaceable fuse on each common contact
- Red LED per position shows coil energized
- Polarized, diode protected input
- Supplied with 3.5" wide low profile snap track and mounting screws
- Positions can be snapped apart
Specifications
| Module positions |
8 |
| Coil |
24 VDC @ 20 mA or 24 VAC @ 63 mA per position |
| Pick-up / drop-out |
19.2 VDC / 3.6 VDC (26.4 VDC max) |
| Contact rating |
10 A resistive @ 24 VDC / 250 VAC |
| Fuse |
10 A, 0.25" dia. x 0.75" L |
| Track mounted size |
3.45" H x 8.50" W x 1.07" D |
| Wiring terminals |
#14 to #22 AWG, solid or stranded |
| Environment |
32°F to 120°F, 85% RH non-condensing |
