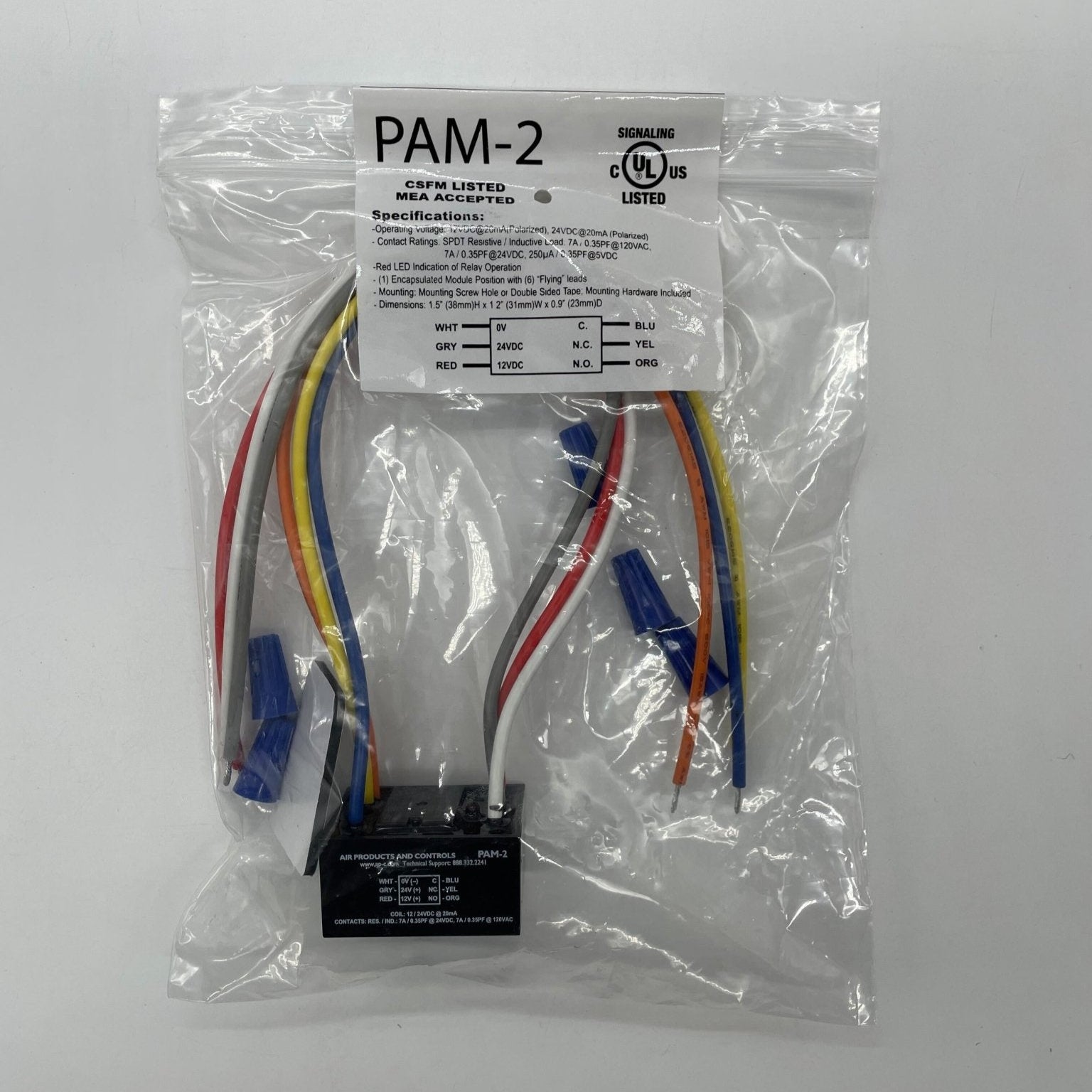

Air Products and Controls PAM-2 — encapsulated multi-voltage relay module with a single SPDT dry Form-C contact and a red coil-energised LED.
PAM modules give a fire, security or building control system a remote dry contact for control or status feedback, wherever a panel output has to switch something it cannot drive directly. The body is fully potted and terminates in flying leads rather than screw terminals, so it mounts on the supplied tape or screw, or sits loose in a back box. Both DC inputs are polarised and diode protected.
- Coil energised by either 12 V DC or 24 V DC, drawing 15 mA at both
- One SPDT dry Form-C contact set
- Rated 7 A at 120 V AC, 7 A at 24 V DC and 250 µA at 5 V DC
- Twelve-inch 18 AWG leads, wire nuts included
- UL certified S3403, MEA 73-92-E Volume XXI, CSFM 7300-1004:101
Match the suffix to the coil: PAM-1 takes 24 V AC, 24 V DC or 120 V AC and switches 10 A at 120 V AC or 7 A at 24 V DC; PAM-4 spans 12 to 40 V DC and carries no LED; PAM-SD runs on 20 to 32 V DC, switches 7 A and adds a seventh lead so a supervised circuit can pass through it. Space Age Electronics catalogues the identical relay as SSU-PAM-2, under the same listing numbers.
