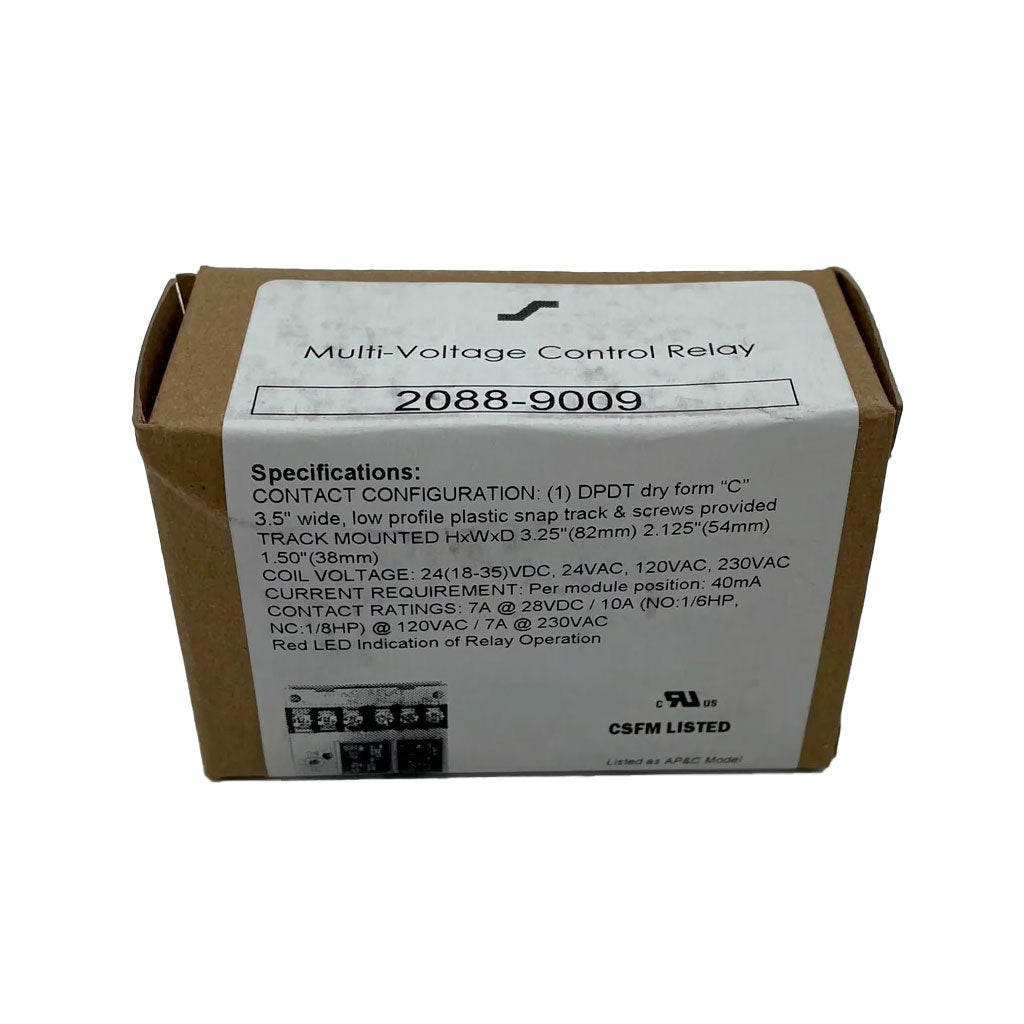

Simplex 2088-9009 — MR-201/T multi-voltage control relay, one DPDT position, track mounted.
Fire alarm panels often need a dry contact to hand an event to equipment outside the fire system, such as a damper, a door holder or an elevator recall input. This relay does that: one coil, driven from any of four supply voltages, switching two isolated Form C contact sets.

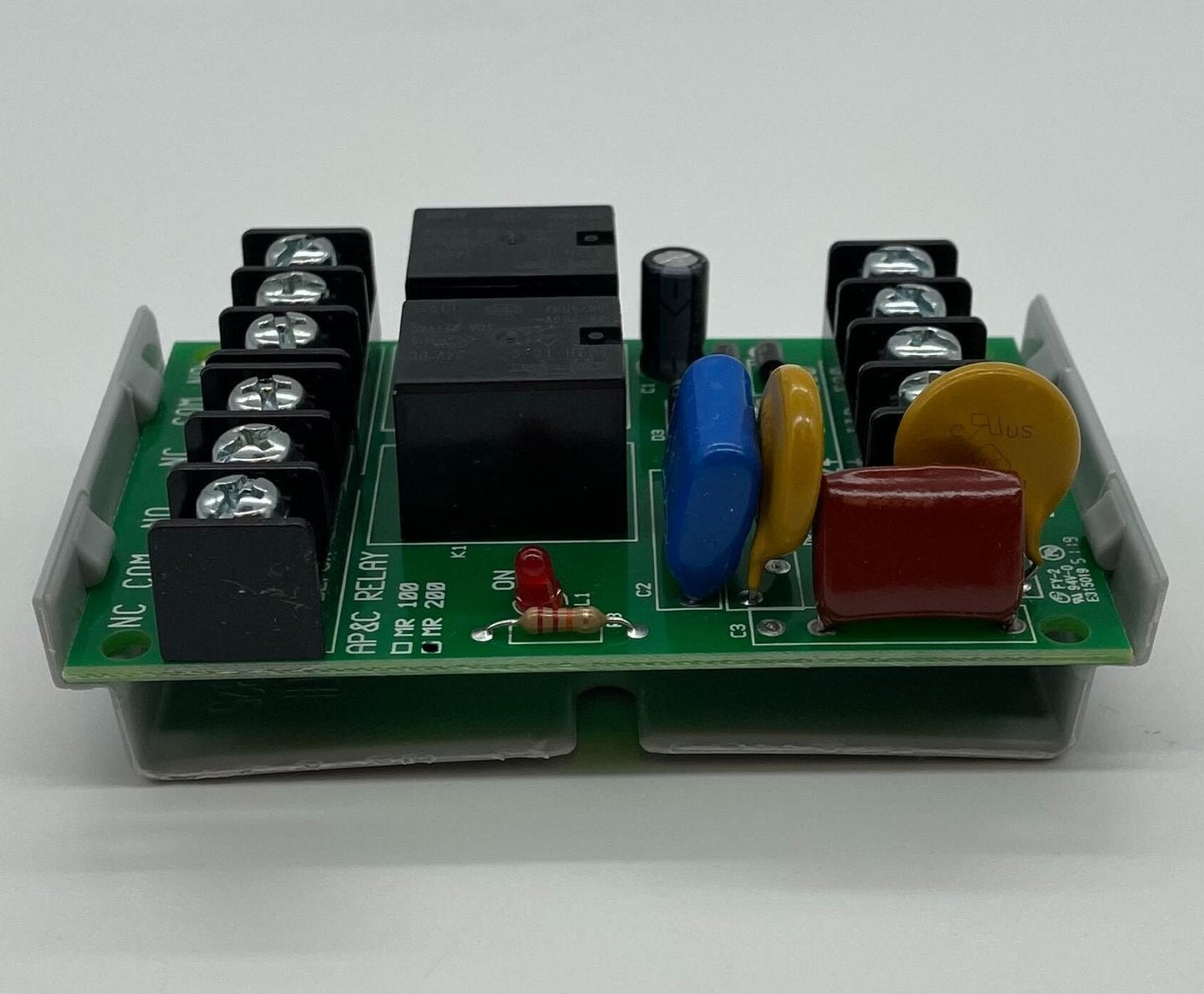

- One module position with DPDT dry Form C contacts
- Coil takes 18 to 35 VDC, 18 to 35 VAC, 120 VAC or 230 VAC, set by which terminal is wired; DC input is polarized
- Coil current 40 mA on DPDT models
- Contacts rated 10 A at 120 VAC, 1/6 HP normally open and 1/8 HP normally closed, plus 7 A at 28 VDC and at 230 VAC
- Red LED lights when the coil is energized, so no meter is needed at checkout

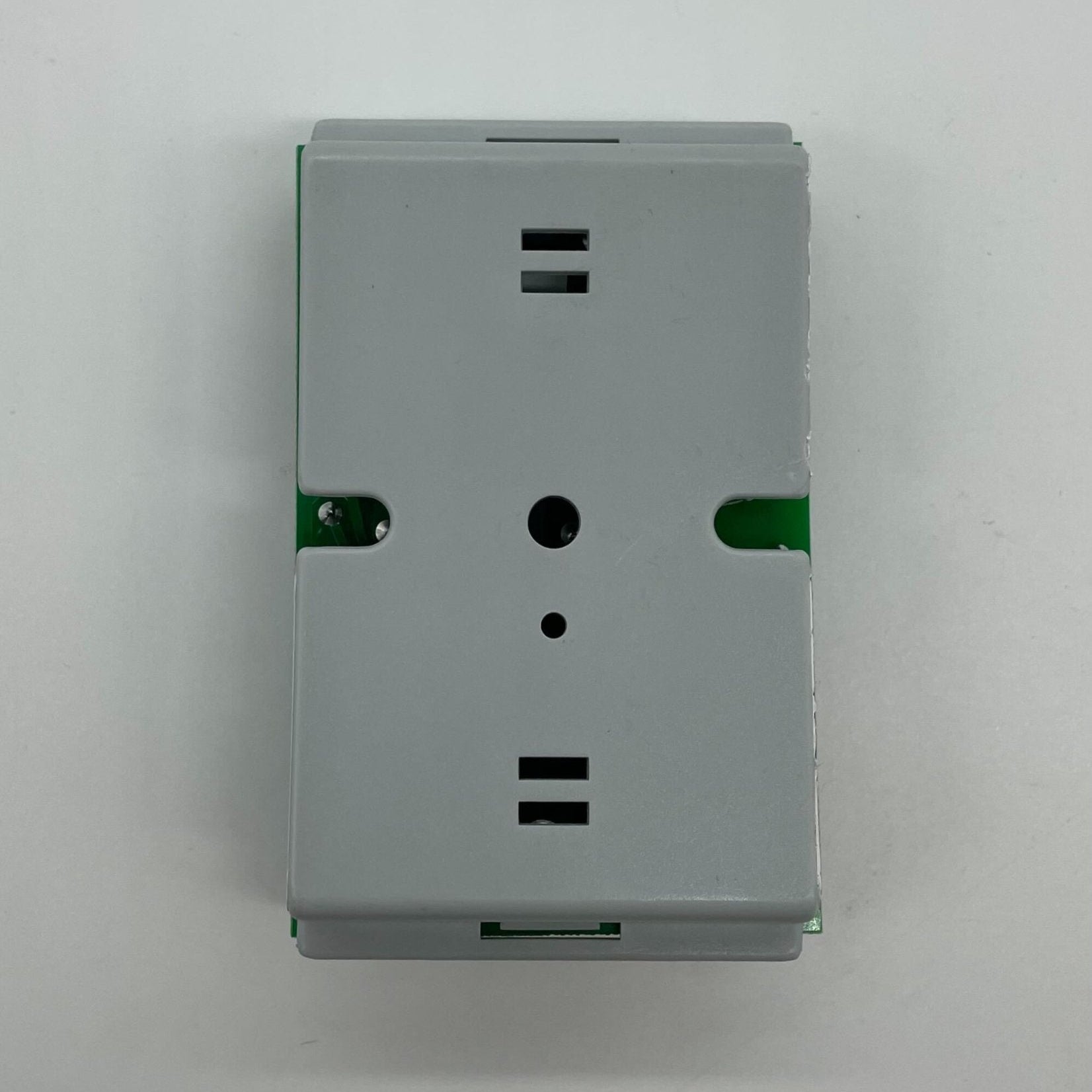

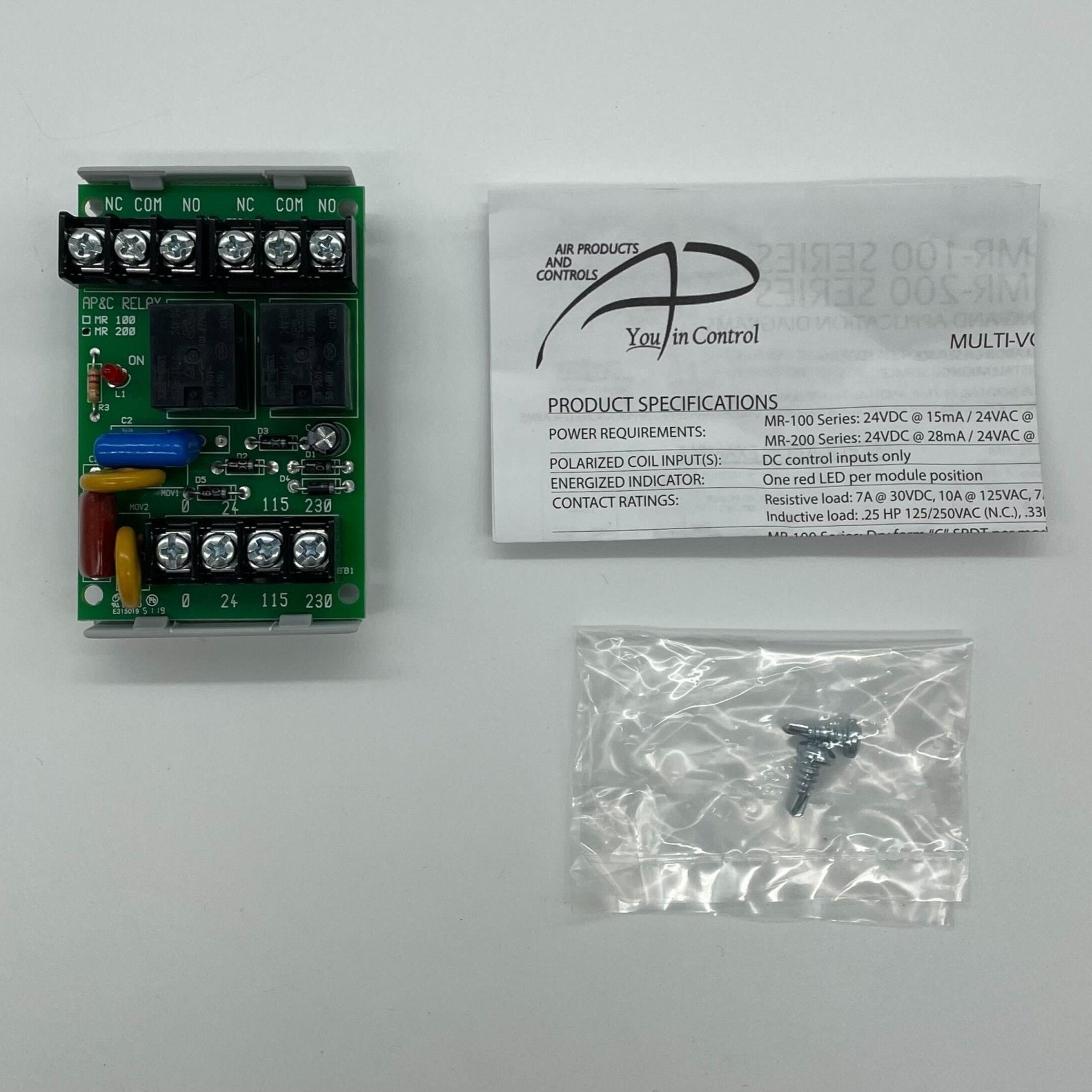

- 3 1/4 in. H × 2 1/8 in. W × 1 1/2 in. D, supplied with snap-track hardware and no cover
Check the ordering table first: 2088-9007 is the same module with SPDT contacts, 2088-9010 is the DPDT version supplied with a cover, and 2088-9019 is the four-position DPDT assembly.
