Simplex GSA4098-9613 Fixed Temperature Operation at 135°F (57°C), Between 15° and 25°F/min (8.33° and 13.88°C/min) Rate-of-Rise

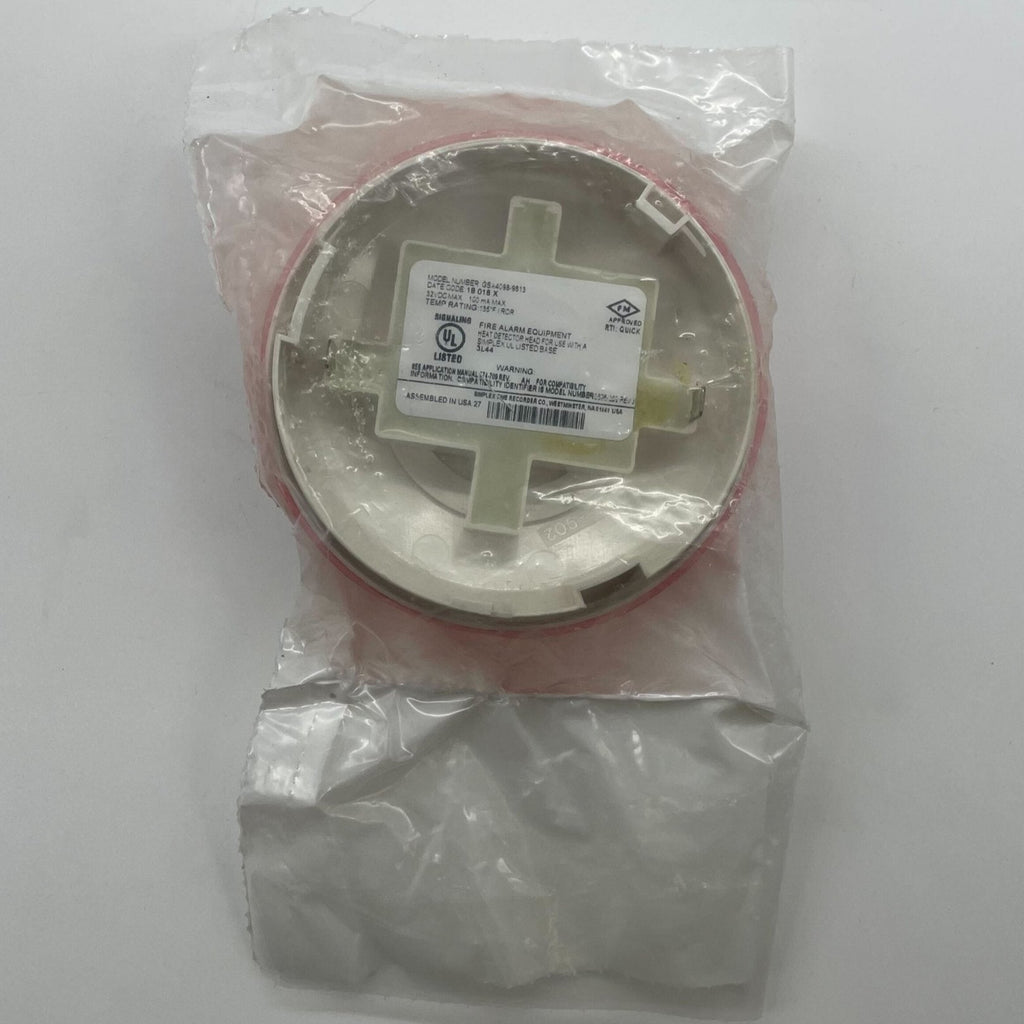

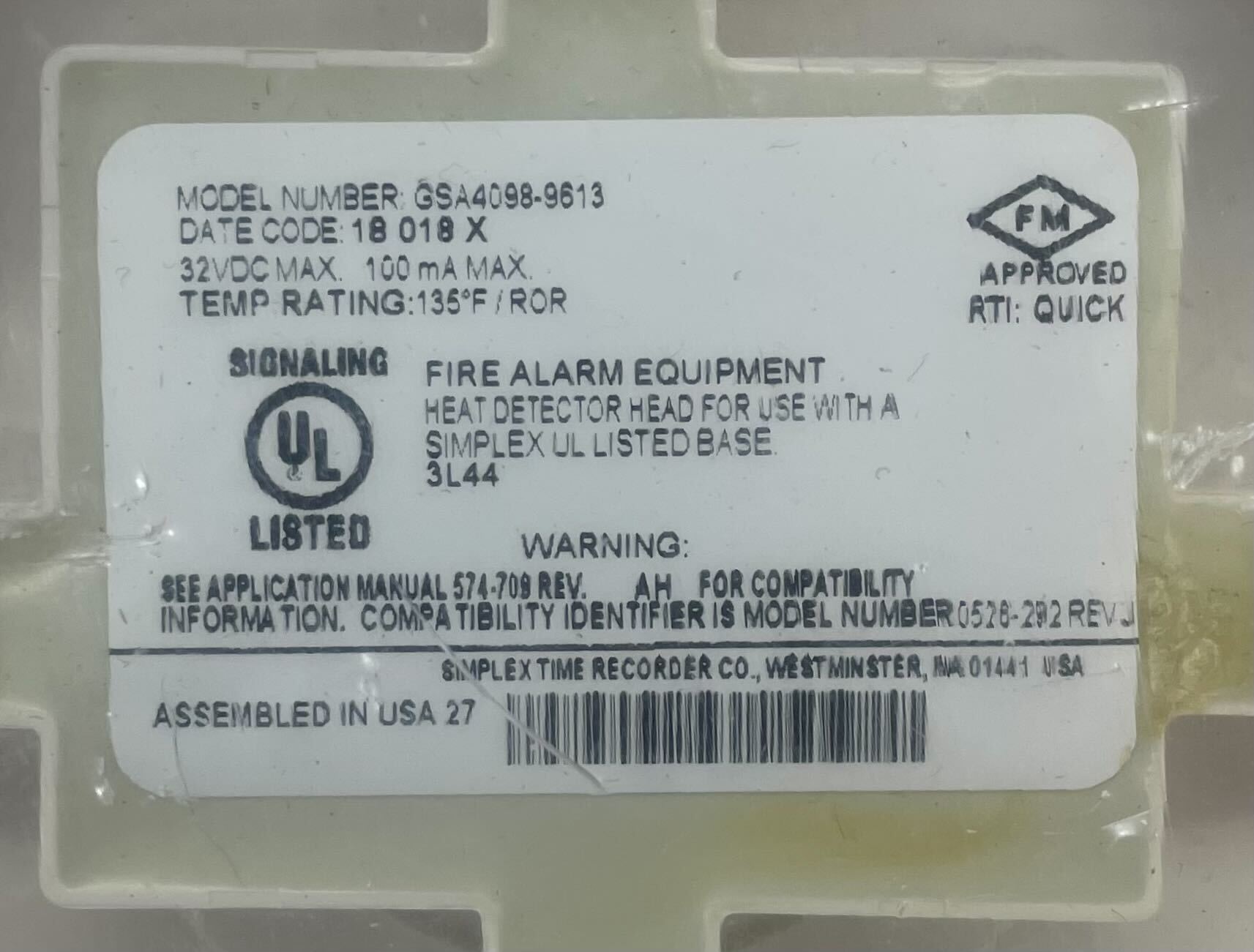

The 4098-9613 is a Simplex non-addressable electronic heat detector that combines 135 F (57 C) fixed-temperature operation with dual-thermistor rate-of-rise detection, used on two-wire or four-wire bases. Rate-of-rise models are intended where ambient temperature changes stay below 6 F per minute. GSA4098-9613 is the GSA-prefixed ordering number for this detector.
Key Features
- Thermistor-based electronic heat detector, UL listed to Standard 521 as rate compensated
- Epoxy encapsulated electronics for ceiling or wall mounting
- Self-restoring operation; alarm LED on the detector
- Current-limited alarm compatible with two-wire initiating device circuits
- Bases available for 2-wire or 4-wire operation, with relay or remote LED options
- Fixed temperature 135 F (57 C) plus rate-of-rise detection
- Rate-of-rise for areas where ambient changes are less than 6 F/min (3.33 C/min)
Specifications
| Voltage |
15 to 32 VDC (filtered DC, 30% max ripple) |
| Standby current |
80 uA typical, 100 uA maximum |
| Alarm current, 2-wire |
Up to 86 mA maximum (set by IDC current limiting) |
| Alarm current, 4-wire |
24 mA typical @ 24 VDC |
| Humidity |
10% to 95% RH from 32 to 122 F; not intended for outdoor applications |
| Color |
Frost-White |
| Fixed temperature rating |
135 F (57 C) |
| Rate-of-rise operation |
Between 15 and 25 F/min (8.33 and 13.88 C/min), per FM requirements |
| Ambient operating range |
32 to 100 F (0 to 38 C) |
| FM maximum spacing |
20 ft x 20 ft, RTI Quick |
Compatible With
- 4098-9788 2-wire base
- 4098-9684 2-wire base with remote LED connection
- 4098-9683 2-wire base with auxiliary relay
- 4098-9682 4-wire base
