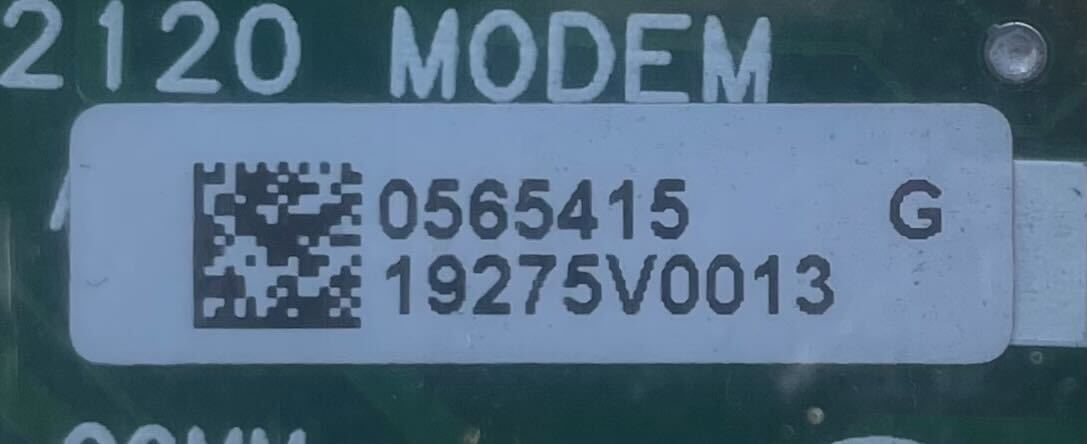

Simplex 8565-415 RS232/2120 Modem Assy 4100
Simplex part 565-415 is the RS-232/2120 daughter card used in the 4100/4120-0113 and 4100-6038 Dual RS-232/2120 modules for 4100-family fire alarm panels. The module connects a Simplex 2120 system to a 4100 panel and provides standard RS-232 ports for devices such as printers, CRTs or third-party computers.
Key Features
- RS-232/2120 daughter card (assembly 565-415) that mounts on the 565-799 Class B motherboard
- Used in Dual RS-232/2120 modules 4100/4120-0113 (4100) and 4100-6038 (4100U / 4100ES)
- Connects a 2120 FACP by hardwired link or FSK-type modems
- RS-232 interface for printer, CRT, third-party computer or GCC
- Service modem 565-279 connects to board 565-415 with cable 733-808
Compatible With
- Simplex 4100 / 4120 (4100/4120-0113)
- Simplex 4100U / 4100ES (4100-6038; replacement order code 4100-6046 per 4100ESi service guide)
